Page 1

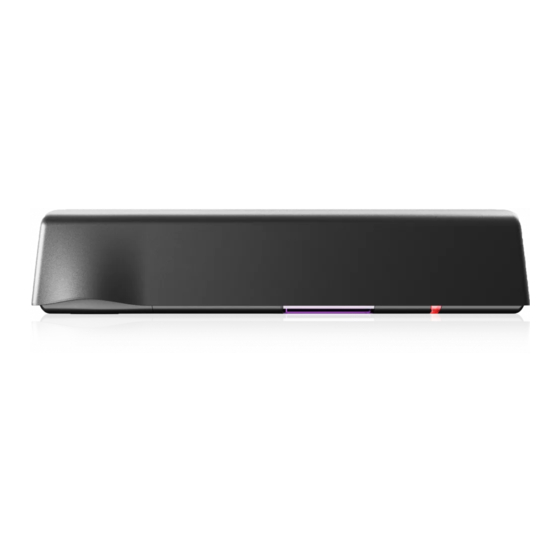

ULTIMO ACTIVATION AND SAFETY SENSOR FOR Visit website for available languages AUTOMATIC, SLIDING DOORS of this document. For more information, please visit www.devancocanada.com or call toll free at Software version 2.7 / Configuration version 8.0 1-855-931-3334 (refer to Admin menu for product software vesion)
Page 2
WHAT'S IN THE BOX cover (10.1351) light pipe sensor (10ULTIMO) radar antenna AIR receiver AIR emitter [for internal use only] AIR curtain angle adjustment harness (20.5349) knob screw kit (50.1818) main adjustment knob User’s Guide (75.0034) main connector Mounting Template (78.7000) [for future development] MOUNTING USER'S...
Page 3
TECHNICAL SPECIFICATIONS TECHNOLOGY / PERFORMANCE Detection mode motion and presence Technology microwave doppler radar and active infrared (AIR) with background analysis Radar detection speed (min.) 2 in/s AIR response time (typ.) < 200 ms (max. 500 ms) Radar transmitter frequency 24.150 GHz radiated power <...
Page 4
LED SIGNALS COLORS BEHAVIORS (green) LED flashes LED flashes red-green Motion detection (red) LED flashes quickly Presence detection LED is off (white) LED flashes x times IR synchronization INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects and Avoid highly reflective mounted securely to avoid light sources in the detection...
Page 5
MOUNTING & WIRING MOUNTING 1. Using the provided mounting template, mount the sensor centered over the clear opening*, ensuring that the bottom of the sensor is no higher than 5 inches from the bottom of the door header. AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC CAUTION...
Page 6
1. Voltage: 12 – 24 VAC, 50/60 Hz; 12 – 30 VDC; < 3.2 W (max) DO NOT EXCEED 26.4 VAC If a power supply is needed, BEA recommends using only the 12V transformer (1012VAC). 2. Use either yellow or green, not both.
Page 7
RADAR FIELD The size of the detection field varies according to the mounting height and parameter settings of the sensor. Graphics are representations, not default settings. ANGLE Tilt the antenna up to adjust the depth outward and down to adjust inward from the doorway.
Page 8
Threshold setting (6). If threshold is desired, you may choose setting 1, 2, 4, or 5. Be sure that the curtain placement matches the LCD screen. BEA recommends using threshold settings on only one side of the door. DEFAULT UNDERSTANDING THE LCD "CURTAINS" GRAPHICS GENERAL SETTINGS the number of squares on a line indicates the curtain number (i.e.
Page 9
ACTIVE INFRARED SAFETY FIELD ANGLE 1. Activate the four visible spots (press gray knob twice) to verify the double press position of the AIR curtains. Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. THRESHOLD NON-THRESHOLD 2.
Page 10
ACTIVE INFRARED SAFETY FIELD WIDTH 1. If desired, adjust the field width using the LCD menu or remote control buttons (see page 13, IR:Width menu). WIDE STANDARD NARROW LEFT, ANGLED RIGHT, ANGLED The size of the detection field varies according to the mounting height and the settings of the sensor.
Page 11
The LED will flash white, confirming the synchronization is detected. If an overlapping safety field is found in the threshold of the door, ULTIMO will remain synchronized for 2 minutes while the door is closed. If activation does not occur for 2 minutes, the white LED will flash, confirming synchronization is lost.
Page 12
SETUP Ensure that the infrared field is clear of any obstructions. The sensor can be set up using either the push button or the remote control: PUSH BUTTON: Press and hold the gray knob for 2 seconds. 2 sec REMOTE CONTROL: Use the following remote control button sequence: During setup, the LCD will display the camera icon and the LED will slowly flash red/green and then turn off.
Page 16
Increase tilt angle of the interfering curtain Error and/or C3 interfering with door to move the curtain away from the threshold during opening cycle (see pages 8 – 9). troubleshooting continues on the next page Page 16 of 24 75.0034.09 ULTIMO 20240508...
Page 17
The sensor signals an internal Cycle power. flashes once fault. If the error persists, replace the sensor. Locate serial number on product label before calling BEA. E2 - orange LED The power supply voltage is too Check power supply voltage in Diagnostics flashes twice low/high.
Page 18
Check sensor wiring. LED signal The LCD or remote Batteries dead. Replace batteries. control does not react Before contacting BEA Technical Support, locate the serial number of your sensor. view: back of sensor Page 18 of 24...
Page 19
HOW TO USE THE LCD DISPLAY DURING NORMAL FUNCTION negative display = active output motion To adjust contrast, push and turn the gray button simultaneously. During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value displayed value factory value saved value NAVIGATING IN MENUS 1) Push to enter the LCD menu.
Page 20
HOW TO USE THE REMOTE CONTROL UNDERSTANDING LED ACTIVITY After unlocking, the red LED To end an adjustment If the red LED flashes quickly after unlocking, you need flashes and the sensor can be session, always lock the to enter an access code from 1 to 4 digits. adjusted by remote control.
Page 21
10RETROFITSPACER Spacer Universal rain accessory Mounting bracket Retrofit Spacer Kit (includes spacer, 2.5” harness, and 9” harness) 10REMOTE BEA universal remote control REPLACEMENT PARTS 10.1351 20.5349 Replacement cover Replacement harness For more information, please visit www.devancocanada.com or call toll free at 1-855-931-3334...
