4K HDMI Extender over Single Cat5e/6

Resolution

Features:

 Extend HDMI over a single Cat5e/6 cable

 Supports resolutions from 480i to 4K with

zero signal loss

 Transmits 4K@30Hz up to 164' (50m) or

1080p@60Hz up to 196' (60m) over

Cat6 cable

MVE-AH1E1-41NQ

Manual

Up to

196ft

(60m)

Range

Cat5e/6

Single Cable

 Plug and play operation

 Active operation ensures signal strength

 Bi-directional IR for two-way remote

control extension

 One (1) 12VDC power supply included –

set can be powered at either end

Plug

and

Play

Operation

Up to 984ft (300m)

Table of Contents

Need help?

Do you have a question about the MVE-AH1E1-41NQ and is the answer not in the manual?

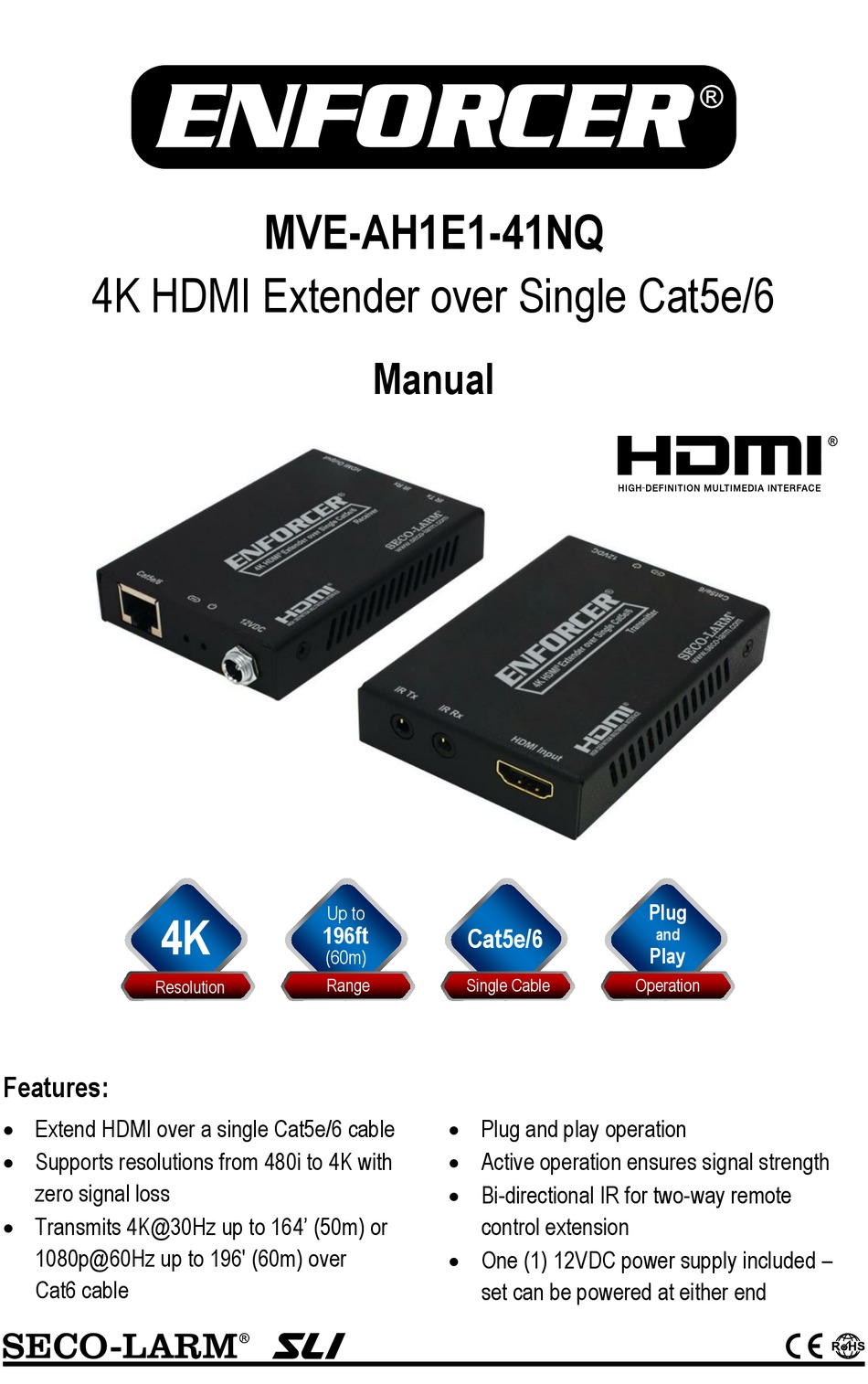

Page 1 MVE-AH1E1-41NQ 4K HDMI Extender over Single Cat5e/6 Manual Plug Up to 196ft Cat5e/6 Play (60m) Range Single Cable Operation Resolution Up to 984ft (300m) Features:  Extend HDMI over a single Cat5e/6 cable  Plug and play operation  Supports resolutions from 480i to 4K with ...
Page 2: Parts List
Extender over Single Cat5e/6 Introduction: The ENFORCER 4K HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6. HDMI formats as large as 4K can be transmitted up to 164ft (50m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter.
Page 3 *Transmitter and Receiver unit have the same dimensions Installation: 1. Determine the location where the MVE-AH1E1-41NQ units will be wired as well as how much Cat5e/6 cable will be necessary. 2. Connect the transmitter to the HDMI output of the source device.
Page 4: Troubleshooting
The MVE-AH1E1-41NQ supports bi-directional IR pass-through signals. This allows for remote operation of either the source device from the display location, or the display device from the source location. The MVE-AH1E1-41NQ bi-directional IR Transmitter unit and IR Receiver unit support signals from 30~60 kHz. IR Transmitter...
