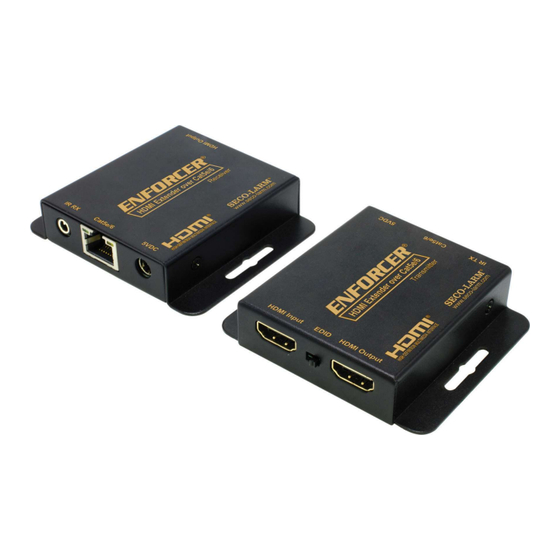

HDMI Extender over Single Cat5e/6
1080p
Resolution
Features:
 Extend HDMI over a single Cat5e/6 cable
 Supports resolutions from 480i to 1080p
with zero signal loss
 Transmits up to 164ft (50m) at 1080p over
Cat5e/6 cable
 HDMI Loop output for local HDMI display
MVE-AH1E1-01NQ
Manual
Up to
164ft
(50m)
Range
®
Cat5e/6
Single Cable
 Plug and play operation – comes as a
complete set
 IR Pass-through for remote control
extension and operation
 EDID Management switch
 Two (2) 5VDC power supplies included
Plug
and
Play
Operation
Up to 984ft (300m)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SECO-LARM SLI SLM-MVE-AH1E1-01NQ and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER SECO-LARM SLI SLM-MVE-AH1E1-01NQ

Summary of Contents for ENFORCER SECO-LARM SLI SLM-MVE-AH1E1-01NQ

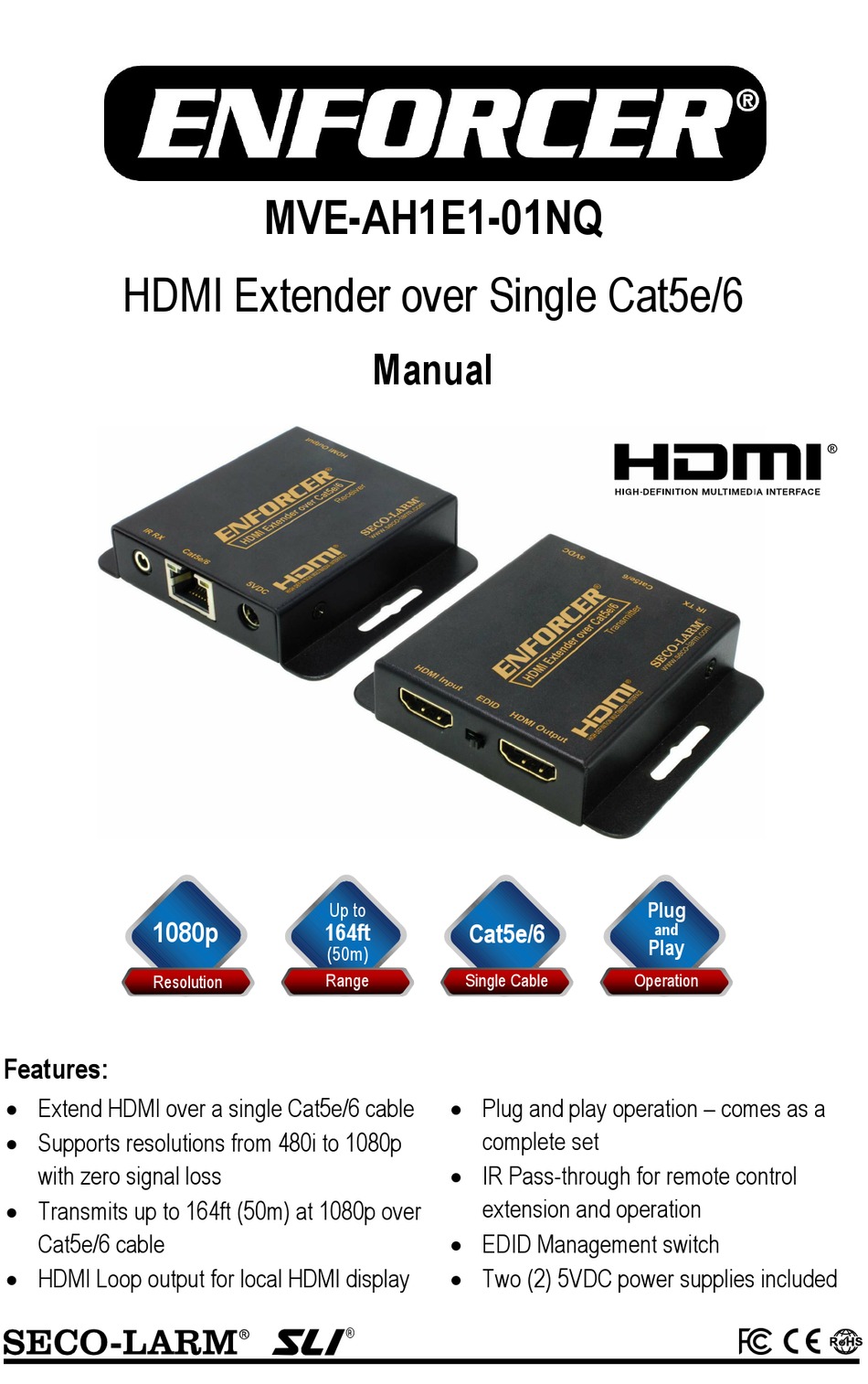

  • Page 1 MVE-AH1E1-01NQ HDMI Extender over Single Cat5e/6 Manual Plug Up to 1080p 164ft Cat5e/6 Play (50m) Operation Range Single Cable Resolution Up to 984ft (300m) Features:  Extend HDMI over a single Cat5e/6 cable  Plug and play operation – comes as a ...

  • Page 2: Table Of Contents

    ENFORCER HDMI Extender over Single Cat5e/6 Introduction: The ENFORCER HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. HDMI formats as large as 1080p can be transmitted up to 164ft (50m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter.

  • Page 3: Parts List

    ENFORCER HDMI Extender over Single Cat5e/6 Parts List: 1x Transmitter (MVE-AH1E1-01NTQ) 1x IR Transmitter (with double-sided tape) 1x Receiver (MVE-AH1E1-01NRQ) 1x IR Receiver (with double-sided tape) 2x 5VDC Power adapters 1x Manual Specifications: Input Video signal 3.3V Input DDC signal...

  • Page 4: Overview

    ENFORCER HDMI Extender over Single Cat5e/6 Overview: Transmitter MVE-AH1E1-01NTQ: 5VDC Input HDMI Input " " Cat5e/6 Port EDID Switch (79mm) (57mm) HDMI Output IR Transmitter port " (17mm) " (67mm) Receiver MVE-AH1E1-01NRQ: IR Receiver HDMI Output Port " " Cat5e/6 Port...

  • Page 5: Status Leds

    ENFORCER HDMI Extender over Single Cat5e/6 Status LEDs: Located above either Cat5e/6 port are two LEDs indicating Power and Link status. Power LED Link LED HDMI Loop Output: The MVE-AH1E1-01NQ includes a secondary HDMI output on the transmitter unit. This HDMI output can be used for local displays that are in the same location as the HDMI source.

  • Page 6: Ir Pass-Through

    ENFORCER HDMI Extender over Single Cat5e/6 IR Pass-Through: The MVE-AH1E1-01NQ supports IR pass-through signals to allow for remote operation of the source device from the display location. The IR transmitter and receiver support a frequency range between 30~60 kHz. IR Transmitter...

  • Page 7: Sample Application

    ENFORCER HDMI Extender over Single Cat5e/6 Cable Legend: Sample Application: HDMI Power Cat5e/6 5VDC Adapter Local Display HDMI Source Cat5e/6 Up to 164' (50m) IR Transmitter IR Receiver Remote Remote Display 5VDC Adapter SECO-LARM U.S.A., Inc.

  • Page 8: Troubleshooting

    ENFORCER HDMI Extender over Single Cat5e/6 Troubleshooting:  Use T568-B wiring standard  Make sure the extender is powered on both sides  Make sure the source and display are powered  Test the Cat5e/6 cable between the receiver and the...
