ENFORCER MVE-AH010Q Manual

Extender for hdmi over dual cat5e/6
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual

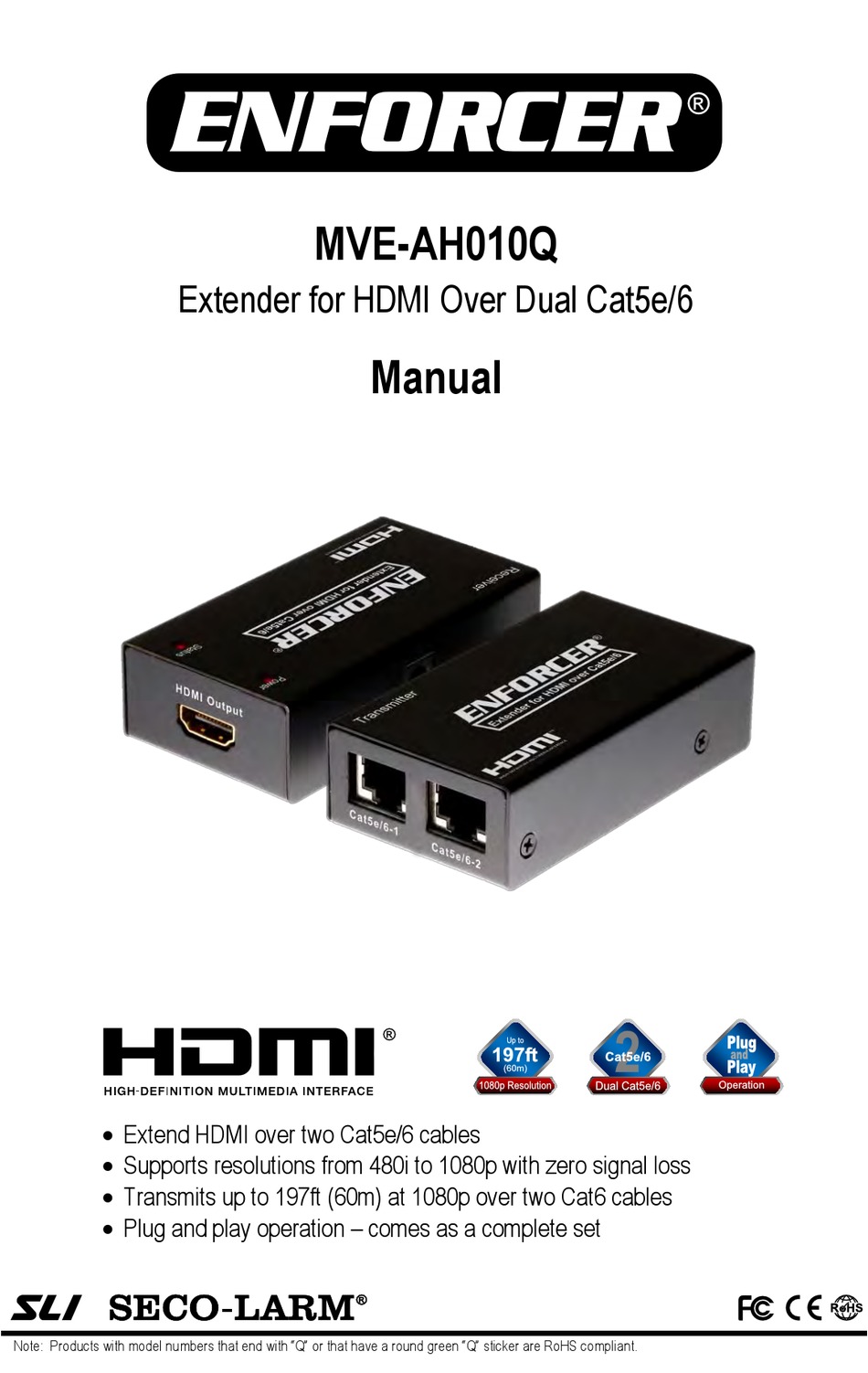

MVE-AH010Q
Extender for HDMI Over Dual Cat5e/6
Manual
 Extend HDMI over two Cat5e/6 cables
 Supports resolutions from 480i to 1080p with zero signal loss
 Transmits up to 197ft (60m) at 1080p over two Cat6 cables
 Plug and play operation – comes as a complete set
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVE-AH010Q and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER MVE-AH010Q

Summary of Contents for ENFORCER MVE-AH010Q

  • Page 1 MVE-AH010Q Extender for HDMI Over Dual Cat5e/6 Manual  Extend HDMI over two Cat5e/6 cables  Supports resolutions from 480i to 1080p with zero signal loss  Transmits up to 197ft (60m) at 1080p over two Cat6 cables  Plug and play operation – comes as a complete set...

  • Page 2: Specifications

    ENFORCER Extender for HDMI over Dual Cat5e/6 Introduction: The ENFORCER HDMI Extender over Cat5e/6 extends the range of HDMI by using a transmitter and an active receiver to send video and audio over two Cat5e/6 cables. HDMI Formats as high as 1080p can be transmitted up to 197ft (60m) between the two units with zero signal loss.
  • Page 3 ENFORCER Extender for HDMI over Dual Cat5e/6 Overview: Back 5VDC Power input Status LEDs HDMI Output Cat5e/6 Ports Left Right (Receiver shown) Two Cat5e/6 cables are required. Please use T568-B wiring standard. Installation: 1. Determine the locations where the HDMI to Cat5e/6 units will be placed as well as how much Cat5e/6 cable will be necessary.

  • Page 4: Troubleshooting

    ENFORCER Extender for HDMI over Dual Cat5e/6 Troubleshooting:  Reduce the resolution of the source device  Turn off deep color  Use T568B wiring standard  Make sure the Cat5e/6 cables are connected to the correct ports, and not to opposite ports HDMI Device does not function correctly ...
