Product Manual 26659
(Revision C, 6/2016)
Original Instructions

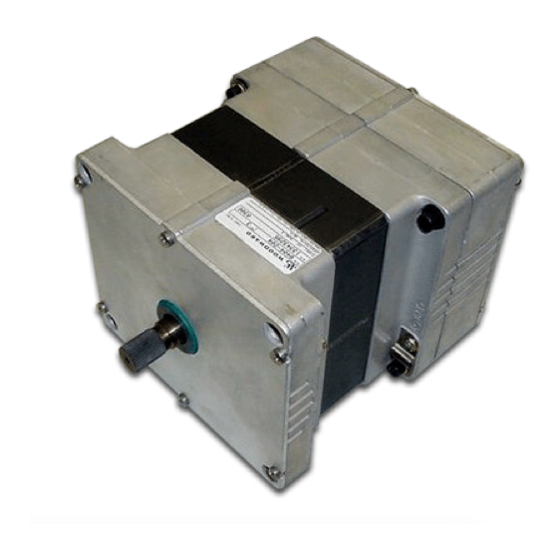

ProAct™ P-Series FL
Position Controller
Actuator Models II through IV
Installation, Programming, and Troubleshooting Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProAct P Series FL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Woodward ProAct P Series FL

Summary of Contents for Woodward ProAct P Series FL

  • Page 1 Product Manual 26659 (Revision C, 6/2016) Original Instructions ProAct™ P-Series FL Position Controller Actuator Models II through IV Installation, Programming, and Troubleshooting Manual...
  • Page 2 Revisions—Changes in this publication since the last revision are indicated by a black line alongside the text. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.

  • Page 3: Table Of Contents

    Overview ....................... 44   Configuration Parameters ..................45   6. S ........62  HAPTER ETUP ALIBRATION UNING Introduction ......................62   Actuator Setup ...................... 62   Position Calibration and Verification ..............63   Position Verification & Trend Window ..............66   Woodward...
  • Page 4 Technical Assistance .................... 90   FL G ......91  PPENDIX ERIES ENERAL UMMARY ..................97  EVISION ISTORY ..................98  ECLARATIONS The following are trademarks of Woodward, Inc.: ProAct TecJet The following are trademarks of their respective companies: Windows (Microsoft Corporation) Woodward...
  • Page 5 Table 2-2. Discrete In Configuration Logic ............19   Table 7-1. Source Address by Harness Code ............70   Table 7-2. J1939 NAME ..................76   Table B-1 Rate Limiter Values ................96   Table B-2 Transfer Function Parameters ............. 96   Woodward...

  • Page 6: Warnings And Notices

    Start-up On- and off-highway Mobile Applications: Unless Woodward's control functions as the supervisory control, customer should install a system totally independent of the prime mover control system that...

  • Page 7: Electrostatic Discharge Awareness

    The product circuit boards should only be removed or repaired by authorized Woodward personnel. In the event this is required, authorized personnel must follow the ESD mitigation procedures described in Woodward manual 82715, Guide for Handling and...

  • Page 8: Regulatory Compliance

    Field wiring must be suitable for at least 85 °C. Compliance with the Machinery Directive 2006/42/EC noise measurement and mitigation requirements is the responsibility of the manufacturer of the machinery into which this product is incorporated. Woodward...

  • Page 9: Acronyms/Abbreviations

    Least Significant Bit or Least Significant Byte Magnetic Pickup NACK Negative Acknowledgment Original Equipment Manufacturer P-Series Woodward electronic engine governor that contains both a rotary actuator and a controller circuit board Protocol Data Unit Programmable Group Number Pulse-Width Modulated RPM or rpm...
  • Page 10 ProAct P-Series FL Position Controller Manual 26659 viii Woodward...

  • Page 11: Chapter 1. General Information

    The ProAct P-Series FL is generally applicable to engines in the 300 kW to 3000 kW output range. Key environmental characteristics of these applications include extended industrial operating temperatures (–40 °C to +85 °C / –40 °F to +185 °F), Industrial EMC Requirements, and electrical transients. Woodward...

  • Page 12: Introduction

    The P-Series FL also provides additional options of (0 to 200) mA Analog Input range and (0 to 5) V (dc) Analog Output range. Woodward also offers a ProAct version for speed control applications. Refer to manual 26246, ProAct ISC—Integrated Speed Control. The ProAct ISC is a microprocessor-based speed control incorporated into the actuator, creating a single integrated actuator/speed control.

  • Page 13: Programmable Features

    Programmable Features Actuator setup and tuning is accomplished through the use of a PC (personal computer), Woodward Service Tool software, and a programming harness. The features identified below are described in Chapters 2 and 4. Briefly, the programmable features include: ...

  • Page 14: References

    The Service Tool is not included, but can be downloaded from the Woodward Internet website (www.woodward.com/software.aspx). References The outline drawing is Figure 1-1 below, and the actuator wiring diagram is Figure 2-2 in Chapter 2.

  • Page 15: Figure 1-1. Proact P-Series Fl Outline Drawing

    Manual 26659 ProAct P-Series FL Position Controller   Figure 1-1. ProAct P-Series FL Outline Drawing Woodward...

  • Page 16: Chapter 2. Installation

    Temperature ratings are included in the specification section of this manual. Do not connect any cable grounds to “instrument ground”, “control ground”, or any non-earth ground system. Make all required electrical connections based on the wiring diagram (Figure 2-2). Woodward...

  • Page 17: General Installation, Operation Notes And Requirements

    If spacers are used to achieve the necessary gap, Woodward recommends maximizing the surface contact area of the spacers to maximize heat transfer between the ProAct and mounting bracket.
  • Page 18 Additionally, when possible, orienting the actuator shaft parallel to the crankshaft of the engine will often reduce the vibration load on the actuator's rotor system in reciprocating engine applications. Woodward...
  • Page 19 ProAct P-Series FL actuator should be used at both minimum and maximum positions. Note that the actuator internal stops allow up to 1.5 degrees of additional rotation in both directions during impact (see Figure 2-1). The engine must always shut down when the actuator is at the minimum stop. Woodward...

  • Page 20: Figure 2-1. Fuel Stops

    See troubleshooting guidelines or contact Woodward for more information. Ensure the actuator has ample work capacity to control the fuel supply under maximum load conditions.

  • Page 21: Electrical Installation

    Exceeding the allowable mass or vibration level may damage the actuator rotor system and shorten actuator life. Actuator levers are available from Woodward, which allow adjustment of the rod end locations with respect to the center of the actuator shaft. The lever used must have a 0.625-36 serration.
  • Page 22  Installations with severe electromagnetic interference (EMI) may require additional shielding precautions. Contact Woodward for more information. Failure to provide shielding can produce future conditions which are difficult to diagnose. Proper shielding, when provided, at the time of installation is required to ensure satisfactory operation of the product.

  • Page 23: Figure 2-2A. Actuator Wiring Diagram

    Manual 26659 ProAct P-Series FL Position Controller Figure 2-2a. Actuator Wiring Diagram Woodward...

  • Page 24: Figure 2-2B. Actuator Wiring Diagram Notes

    ProAct P-Series FL Position Controller Manual 26659 Figure 2-2b. Actuator Wiring Diagram Notes Woodward...

  • Page 25: Figure 2-3. Termination View With Cover Removed

    A plastic tool is provided for use with the terminal blocks. Do not apply too much force on the tool, as it could break. A replacement tool can be ordered using Woodward part number ST-15011. Woodward...

  • Page 26: Description Of Electrical I/O

    Tinning (soldering) the ends is not an acceptable option since the spring terminals will not grip the wires as well. The jumper used for the ProAct P-Series FL is Woodward P/N 1606-848. Woodward hardware part numbers for access cover hardware:...

  • Page 27: Figure 2-4. Correct And Incorrect Wiring To Power Supply

    For battery connections (+Bat and –Bat):  Model II: 1.0 mm²/16 AWG for distances up to 8 meters  Model III: 1.0 mm²/16 AWG for distances up to 5 meters  Model IV: 1.0 mm²/16 AWG for distances up to 4 meters Woodward...
  • Page 28 ProAct P-Series FL. The high side switch configuration is preferred. Low Side Switch: If used as a low side switch, the contact must be connected to the discrete input terminal and to the power supply minus of the ProAct P-Series FL. Woodward...
  • Page 29 High (+V) Open/ Closed/ Open/ Closed/ FALSE state Low (Gnd) High (+V) High (+V) Low (Gnd) Table 2-2. Discrete In Configuration Logic The CAN address high and low discrete inputs must be wired prior to power-up to be registered. Woodward...
  • Page 30 Connect the Analog Input sensor between TB4 (+) and TB5 (–). The conductor shield must be connected to TB3 and the other end of the Analog Input sensor cable shield is not connected and is isolated. The Analog Input and the Analog Output signals share the shield connection. Woodward...
  • Page 31 The (4 to 20) mA analog output drives a (0 to 450) Ω load. The high side (TB1) drives current from the internal 15 V (dc) power supply to the load. Connect the return current to TB2. TB2 is internally connected to the power supply ground. The shield (TB3) connection is shared with the analog input. Woodward...
  • Page 32 The use of CANbus cable that meets SAE J1939-11 specifications for impedance and shielding properties is required for CAN communication usage. The battery minus signal and the shield signal are not connected and therefore the shield cannot be used as a common signal between the controls. Woodward...

  • Page 33: Figure 2-5. Can Shielding

    CAN network. The ProAct P-Series FL does not have any built-in termination. CAN Port Specification Summary: Name Value Wiring Specification ISO-11898, SAE J1939-11 Max Wire Length 30 m CAN Port Isolated Baud Rate 125 kbps, 250 kbps, 500 kbps, and 1 Mbps Figure 2-5. CAN Shielding Woodward...
  • Page 34 For details, refer to Chapter 4 (Service Tool). The ProAct Service Tool can be downloaded from the Internet at www.woodward.com/software.aspx. It is recommended that the OEM or packager provide a breakout cable that is connected to the ProAct P-Series FL service port and run to an easily accessible area on the engine.

  • Page 35: Chapter 3. Description Of Operation

    This shutdown signal should be sent directly from the engine control panel and should be independent and separate from the ProAct P-Series FL actuator. The ProAct P-Series FL actuator should not be used as the primary means of shutting down the engine. Woodward...

  • Page 36: Actuator Features Description

    The supply voltage diagnostic trip levels are below 17 V (dc) and above 33 V (dc) with a timeout to avoid nuisance alarms. The unit can be configured to either alarm or shutdown upon detection of a supply voltage fault. Woodward...

  • Page 37: Figure 3-2. Functional Overview

    The PWM position command input will function with either a low-side open collector or push-pull driver. It will handle a PWM frequency range from 300 Hz to 2000 Hz at amplitudes ranging from 4.0 V up to battery voltage. The scaling from duty cycle to commanded position is user-configurable. Woodward...
  • Page 38 Note that the chosen input when the difference is exceeded is configurable. Primary Enabled but not active—Indicates the backup demand is selected but the primary demand will become active after a 10 second signal healthy delay. Woodward...

  • Page 39: Figure 3-3. Position Demand Logic

    The output is 4 mA at 0 % and 20 mA at 100 % by default, but is user-configurable. The voltage output is 0.5 V (dc) at 0 % and 4.5 V (dc) at 100 % by default, but is user-configurable. Woodward...

  • Page 40: Temperature Sensing

    This means that the actuator is active within one second of power-up. A diagnostics error found during power-up will shut down the actuator. There are a limited number of power-up diagnostics, as most of the diagnostics are done during run time. Woodward...
  • Page 41 If a shutdown diagnostic occurs when the actuator is in a state other than the Shutdown state or Powered Down state, and then is immediately reset, the actuator remains shut down until the Shutdown state is reached. It is recommended that all faults be configured as shutdowns to ensure maximum fault protection. Woodward...

  • Page 42: Faults

    If the on-board temperature sensor reads above 100 °C this diagnostic will be set, which is the temperature where current limiting begins. This diagnostic, when used, provides an indication of this event occurrence. Failure levels: >100 °C Persistence: 100 ms Configuration options: Off, Alarm, Shutdown Woodward...
  • Page 43 Configuration options: Off, Alarm, Shutdown Analog Demand Failed The analog input went above the analog input diagnostic maximum threshold or below the analog input diagnostic minimum threshold. Analog Demand Failed is only active when the position demand is configured for ‘Analog'. Woodward...
  • Page 44 Configuration options: Not Used or Shutdown When configured for use, this is a hard-coded shutdown. The actuator will go limp if this condition is detected. Demand Tracking Fault Indicates the backup position command does not match the primary position command. Woodward...
  • Page 45 Indicates that an internal failure has occurred. The Internal Shutdowns page of the Service Tool indicates the exact cause. Configuration options: none - dedicated Shutdown If detected, the actuator will use current control to execute the shutdown action (min, max, limp). Woodward...

  • Page 46: Chapter 4. Service Tool

    In addition to the hardware, the following are the distributions of tool software needed to communicate with the actuator:  Woodward part number 9927-1187, ProAct Service Tool There is a potential for serial port damage when communicating with the ProAct P-Series FL actuator. This is caused by a difference in ac voltage between neutral and earth ground.

  • Page 47: Getting Started

    Manual 26659 ProAct P-Series FL Position Controller Getting Started Installation Procedure The Service Tool software can be downloaded and installed from the Woodward internet site (www.woodward.com/software.aspx). What to do next After the software is installed, connect a serial communications cable between the RS-232 connections on the ProAct P-Series FL actuator and an unused serial port on your computer.
  • Page 48 Alarms and Shutdowns  Alarm Status One or more alarms on the Alarms screen are active.  Shutdown Status One or more shutdowns on the Shutdowns or Internal Shutdowns screen are active. Woodward...

  • Page 49: Figure 4-1. Service Tool-Overview Tab

    Displayed value of the input power, in volts, as read by the processor. Electronics Temperature Displayed value of the electronics temperature sensor, in degrees Celsius, as read by the processor. The temperature sensor is physically located on the printed circuit board. Woodward...
  • Page 50 Latched faults can be cleared by cycling actuator power, toggling the Run Enable input or by selecting the ‘Reset Alarms and Shutdowns’ button on either the Alarm or Shutdown Service Tool screens. Woodward...

  • Page 51: Figure 4-2. Service Tool-Alarms Tab

    If a fault condition has occurred but is no longer present, it will remain as a logged fault until cleared. The ‘Reset Logged Alarms and Shutdowns’ command clears all logged faults. Woodward...

  • Page 52: Figure 4-3. Service Tool-Shutdowns Tab

    ProAct P-Series FL Position Controller Manual 26659 Figure 4-3. Service Tool—Shutdowns Tab Figure 4-4. Service Tool—Internal Shutdowns Tab Woodward...

  • Page 53: Figure 4-5. Service Tool-Identification Tab

    The Software Part Number identifies the embedded firmware part number and revision level. The Serial Number is a Woodward tracking tool set at the factory. The Product Version identifies the device as a P-Series FL. Figure 4-5. Service Tool—Identification Tab...

  • Page 54: Chapter 5. Configuration

    Data identifying the configuration can be added by selecting Properties under the File menu pull down. This is a text field that can be used to store data such as:  Customer  Engine Type  Application Type  Notes Woodward...

  • Page 55: Configuration Parameters

    Save the configuration to a file. At a later date simply open the configuration and load it into the actuator. Configuration Parameters There are 8 different screens that display the device’s configuration settings: Setup, CAN, PWM, Analog In, Analog Out, Discrete I/O, Alarm/Shutdown, and Position. Woodward...

  • Page 56: Figure 5-1. Configuration Editor-Setup Tab

    Selects an analog (0 to 5) V (dc) or (4 to 20) mA or (0 to 200) Analog mA position demand input. Selects a CAN position demand input. No input selected. Not Used Allowed values: PWM, Analog, CAN, Not Used. Default: PWM Woodward...
  • Page 57 Select the desired discrete input for the Run Enable function. A selection of 'Always Enabled' sets the software to always run, and acts like a 'function not used'. Additional input settings are provided on the Discrete I/O tab. Options: Always Enabled, Input 1, Input 2, Input 3. Default: Always Enabled Woodward...

  • Page 58: Figure 5-2. Configuration Editor-Can Tab

    CAN ID High Input Select the desired discrete input for the CAN ID High function, used in conjunction with the CAN ID Low input to determine the harness code on power-up. Options: Input 1, Input 2, Input 3 Default: Input 3 Woodward...
  • Page 59 Allowed values: 0-65535. Defaults: 65306, 65307, 65308, 65309 CAN Fail Timeout Sets the maximum allowed delay, ins seconds, between CAN received position command messages before a CAN Demand Failed diagnostic is annunciated. Allowed values: 0.010-10 seconds. Default: 0.035 seconds Woodward...

  • Page 60: Figure 5-3. Configuration Editor-Pwm Tab

    The output position command value corresponding to the duty cycle maximum setting. Allowed values: 0-100 %. Default: 100 % Diagnostic Min Duty Cycle Specifies the duty cycle below which a PWM input failed diagnostic is set. Allowed values: 0-50 %. Default: 3 % Woodward...

  • Page 61: Figure 5-4. Configuration Editor-Analog In Tab

    Allowed values: 0-25 mA. Default: 4 mA Current Maximum The value of the input at the output maximum setting, used for the analog input current to position command scaling. Allowed values: 0-25 mA. Default: 20 mA Woodward...
  • Page 62 Allowed values: 0-200 mA. Default: 10 mA Diagnostic Maximum Specifies the maximum normal value for the analog input. When configured, an Analog Input High alarm or shutdown fault is triggered when the input increases above this setting. Allowed values: 0-200 mA. Default: 190 mA Woodward...
  • Page 63 Allowed values: –1 to +6 V (dc). Default: 4.8 V (dc) The user should ensure that the Diagnostic Minimum and Diagnostic Maximum fields are set to values that will trigger an alarm or shutdown when reasonable faults such as open or shorted wires occur. Woodward...

  • Page 64: Figure 5-5. Configuration Editor-Analog Out Tab

    Specifies the value of the selected position (actual or setpoint) at the output current minimum setting. Setting the position minimum higher than the position maximum is allowed to provide for a reverse acting signal as needed. Allowed values: 0-100 % Default: 0 % Woodward...
  • Page 65 Allowed values: 0-100 %. Default: 100 % Output Minimum Specifies the analog output current at the position minimum setting. Allowed values: 0-5 V. Default: 0.5 V Output Maximum Specifies the analog output current at the position maximum setting. Allowed values: 0-5 V. Default: 4.5 V Woodward...

  • Page 66: Figure 5-6. Configuration Editor-Discrete I/O Tab

    It is recommended that an engine system Failure Modes and Effects Analysis (FMEA) be used to determine the discrete input configuration that provides the lowest probability of unintended operation in the presence of faults, such as a broken wire. Woodward...
  • Page 67 Alarm or Shutdown fault. Any of the selected faults will either turn the output off if configured for 'Off when selected faults become true' or turn the output on if configured for 'On when selected faults become true'. Default: not selected Woodward...

  • Page 68: Figure 5-7. Configuration Editor-Alarm/Shutdown Tab

    CAN Stop Command It is recommended that all faults be configured to activate the relay output, this ensures maximum fault annunciation. Alarm / Shutdown Tab The Alarm/Shutdown tab provides alarm and shutdown configuration settings. Figure 5-7. Configuration Editor—Alarm/Shutdown Tab Woodward...
  • Page 69 Specifies the action when a shutdown condition is detected and active. Options are: Go to Min (0 %), Go to Max (100 %), Go Limp (no drive current), Min then Limp, or Max then Limp. Default: Go To Min (0 %) Woodward...

  • Page 70: Figure 5-8. Configuration Editor-Position Tab

    Friction Setting The friction setting represents the actuator current required to overcome static load friction. Allowed values: 0-4 A. Default: 0.1 A See Position Calibration and Verification in Chapter 6 for more details and a tuning procedure. Woodward...

  • Page 71: Figure 5-9. Loading Configuration

    To load a configuration into the actuator, select the ‘File/Load to Control’ option from the menu, the blue load to control arrow icon or hot keys ‘Ctrl+L’ on the Configuration Editor. Figure 5-9. Loading Configuration See Chapter 4 for information on monitoring the ProAct P-Series FL. Woodward...

  • Page 72: Chapter 6. Setup, Calibration, And Tuning

    It is highly recommended that the minimum fuel position setting stop the engine. This is essential for any configured shutdowns in the ProAct P-Series FL to be directly effective. If this is not possible, the discrete output should be configured to actuate an external shutdown device as needed. Woodward...

  • Page 73: Position Calibration And Verification

    Calibration sub-menu will launch a “wizard” to guide the user through the verification process. Selecting ‘Position Verification’ from the Tools menu will open a window that allows test mode selection for manually positioning the device. Figure 6-1. Tools Menu Options Woodward...

  • Page 74: Figure 6-2. Auto Cal Direction Screen

    “Adjusting the Inertia Settings” and “Adjusting the Friction Settings”. 5. To check the position calibration, change the position setpoint and verify that the actual position is correct. The endpoints of travel can be adjusted if needed. Figure 6-2. Auto Cal Direction Screen Click Next or Cancel. Woodward...

  • Page 75: Figure 6-3. Auto Cal Inertia & Friction Screen

    For example, if it takes 0.7 A to begin moving against the spring, and at 0.5 A the actuator moves with the spring in the opposite direction, set the Friction Setting at (0.7 – 0.5) / 2 = 0.1 A. Woodward...

  • Page 76: Position Verification & Trend Window

    (inertia and friction). It is opened by selecting ‘Position Verification’ from the ‘Tools’ menu (Figure 6-5). For convenience, the window is re-sizable and movable. Trend attributes like period, color, and range can be modified by selecting the Properties button. Woodward...

  • Page 77: Figure 6-5. Tools Menu Position Verification

    The cancel operation reverts back to the device’s friction and inertia values at the time the Position Verification window was opened. The chart trend can be started and stopped using the Start/stop button. Selecting ‘Start‘ will restart the chart, erasing an existing values. Woodward...

  • Page 78: Figure 6-7. Position Verification Screen

    Individual ranges can be modified by selecting the desired signal (Actual Position, Position Setpoint, Estimated Current) from the pen drop-down selection and modifying the attributes of that signal (e.g., min range, max range, color). Each signal can have different ranges. Woodward...

  • Page 79: Figure 6-8. Strip Chart Properties Window

    Manual 26659 ProAct P-Series FL Position Controller Figure 6-8. Strip Chart Properties Window Woodward...

  • Page 80: Chapter 7. Can Details

    CAN Messages Overview The following information will be sent via CAN:  Actual Valve Position  Desired Valve Position  Internal Electronics Temperature*  Diagnostics (Alarms and Shutdowns) These are all provided in one data message (2 messages in Legacy mode). Woodward...

  • Page 81: Can Message Details

    Series FL will not perform the requested action - the bits cannot remain in a ‘01’ state. The reset action occurs only upon the transition from 00 to 01. Bytes 4-8: RESERVED/NOT USED (Send as 0xFF in each byte) Woodward...
  • Page 82 Error Indicator set (0xFE) if temperature sensor is failed. Byte 4: Status Bits Data length: 1 byte Bits 1-4: Operation Status (see definition below) Bits 5-7: Control Mode (see definition below) Bit 8: Discrete Output ON indication (0=off, 1=on) Woodward...
  • Page 83 Byte 8: Logged Diagnostic Indications 2 (same format as byte 6) Data Message (Tx)—Legacy Mode Transmission repetition rate: 100 ms Data length: 8 bytes Data Page: PDU format: 255 (FF) PDU specific: 251 (FB) Default priority: PGN: 65531 (FFFB) Woodward...
  • Page 84 Byte 3-4: Not Used (sent as 0xFF in each byte) Byte 5: Event Indications 1 Bits 1-2: Position Error Bits 3-4: Temp Sensor Failed (>140 °C or <-45 °C) Bits 5-6: not used (sent as 1) Bits 7-8: 24 V Supply Out of Range (High or Low) Woodward...

  • Page 85: Address Claimed

    Byte 7.1: (1 bit) Reserved Byte 7.2: (7 bits) Vehicle System, SPN 2842 Byte 8.1: (4 bits) Vehicle System Instance, SPN 2843 Byte 8.5: (3 bits) Industry Group, SPN 2846 Byte 8.8: (1 bit) Arbitrary Address Capable, SPN 2844 Woodward...

  • Page 86: Cannot Claim Address

    First ECU Instance Field Unit 1 Unit 2 Unit 3 Unit 4 Manufacturer Code Field Woodward, Industrial Controls Division Identity Number Field Unique Unique Table 7-2. J1939 NAME See J1939-81 Section 4.1.1 for additional details on J1939 NAME. Cannot Claim Address...
  • Page 87 Byte 7-8: SAE Reserved (not used) Bit code legend 1 Bit code Description Stop Broadcast Start Broadcast Reserved Don't care/take no action Bit code legend 2 Bit code Description 0000 All Devices 0001 Stopped Devices 0010-1110 Reserved 1111 Not available Woodward...

  • Page 88: Software Version Number

    7 bytes Resolution: ASCII, 0 offset Actual value: varies, see listing below** Byte N: Delimiter, SPN 234 Actual value: 42 (0x2A) Character: **Data actual value listing 2.03 for firmware 5418-6507 NEW 2.02 for firmware 5418-6133 NEW Woodward...

  • Page 89: Chapter 8. Troubleshooting

    For more detailed information about governor system failure modes and effects, contact Woodward for a copy of the system IAFMEA. The troubleshooting scenarios listed below assume that the end user has a digital multi-meter at his disposal for testing voltages and checking continuity, and assume that the application has been engineered and tested thoroughly.

  • Page 90: Troubleshooting The Proact P-Series Fl

    Old version of Service Tool or file corruption or Re-install Service Tool, get the latest version bad install. from the Woodward web site (www.woodward.com/software.aspx). Not controlling at PWM input signal inaccuracy Measure input duty cycle and convert to desired position percentage.

  • Page 91: Troubleshooting Diagnostic Flags

    Input is incorrectly wired. Verify reading of input using Service Tool. The actuator’s input is damaged. Return unit to Woodward for repair. Loss of Position All configured position Incorrect configuration. Check configuration of demand Demand demand signals have Inputs invalid or failed.
  • Page 92 The actuator’s input is damaged. Verify input power reading using the Service Tool. If bad, return unit to Woodward for repair. Electrical High internal temperature. Actuator has been placed in an Check ambient temperature...
  • Page 93 Electrical problems within the actuator or unit. Possible problem with the actuator, although additional testing recommended before returning to Woodward. CAN Stop A STOP command was CAN data incorrect, CAN PGN Verify PGN configuration (Run/Stop) received over CAN.
  • Page 94 CANbus incompatibility with ECM, Verify ECM CANbus e.g., baud rate. compatibility. Verify configured data rate. CAN traffic overload. Verify that there is not excessive CAN traffic that has higher priority than the actuator demand message. Woodward...

  • Page 95: Electrical Troubleshooting Guide

    Measure the input voltage at the connector.  Check the status of the input from the Overview screen of the Service Tool.  Check the wiring, looking for loose connections or misconnected cables.  Verify the input is properly configured. Woodward...
  • Page 96  Check that Service Tool is running. Verify the Port setting is correct.  Follow on-screen error messages. Re-install software as needed. The latest version of software is available for download from the Woodward web site (www.woodward.com/software.aspx). Woodward...

  • Page 97: Chapter 9. Product Support And Service Options

    A current list of Woodward Business Partners is available at www.woodward.com/directory. Product Service Options Depending on the type of product, the following options for servicing Woodward products may be available through your local Full-Service Distributor or the OEM or Packager of the equipment system.

  • Page 98: Returning Equipment For Repair

    To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules.

  • Page 99: Engineering Services

    Field Service engineering on-site support is available, depending on the product and location, from one of our Full-Service Distributors. The field engineers are experienced both on Woodward products as well as on much of the non- Woodward equipment with which our products interface.

  • Page 100: Technical Assistance

    Manual 26659 Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General...

  • Page 101: Appendix . Pro Act P-Series Fl General Summary

    –40 to +85 °C (–40 to +185 °F) Storage Temperature –40 to +125 °C (–40 to +257 °F) Humidity H2: (Woodward) profile Mechanical Vibration RV2: US MIL-STD-202F, procedure 214A: 0.1 G² /Hz, 10 Hz to 2000 Hz, 3 hr/axis, 12.8...
  • Page 102 < 1.0 % of full travel Repeatability @ 25 °C < 1.0 % of full travel Temperature drift 350 ppm/°C of full travel, maximum Sample Rate 1 ms Out of Range Detection <0.012 V (dc) or >4.987 V (dc) for 5 ms Woodward...
  • Page 103 Calibration Duty cycle offset adjustment is available in Service Tool. This will tailor the input to the signal source Loss of Signal <153 Hz. Sets Duty Cycle and Frequency to zero. Out of Range Duty Cycle Configurable in software. Woodward...
  • Page 104 Output protected against 32 V (dc), steady-state for (0 to 25) mA range. Not protected against shorting Analog Output (+) to 32 V (dc) in (0 to 200) mA range. Also protected from direct short to ground. Minimum Load Impedance 0 Ω Maximum Load Impedance 450 Ω at 25 mA Woodward...
  • Page 105 Electronics Temperature (internal sensor) Parameter Value Accuracy ±1 °C at 25 °C ambient ±2 °C over temperature range (–40 °C to +125 °C) I/O Execution Rate 10 ms Out of Range < –45 °C, >140 °C. Action is configurable in software Woodward...

  • Page 106: Figure B-1. Transfer Function

    < 7 < 8 < 8 Table B-2 Transfer Function Parameters Inertia Settings Inertia=Base_Inertia*1.25^InertiaNumber The actuator with no load has inertia = Base_Inertia Size Base_Inertia Model II 5.5e-4 Kg-m^2 (or N-m-s^2) Model III 6.4e-4 Kg-m^2 Model IV 8.2e-4 Kg-m^2 Woodward...

  • Page 107: Revision History

    ProAct P-Series FL Position Controller Revision History Changes in Revision C—  Updated European Compliance for CE Mark EMC Directive Changes in Revision B—  Various changes as marked to update/correct reference values Changes in Revision A—  Added new firmware version Woodward...

  • Page 108: Declarations

    ProAct P-Series FL Position Controller Manual 26659 Declarations Woodward...
  • Page 109 Manual 26659 ProAct P-Series FL Position Controller Woodward...
  • Page 110 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.

Table of Contents

Save PDF
