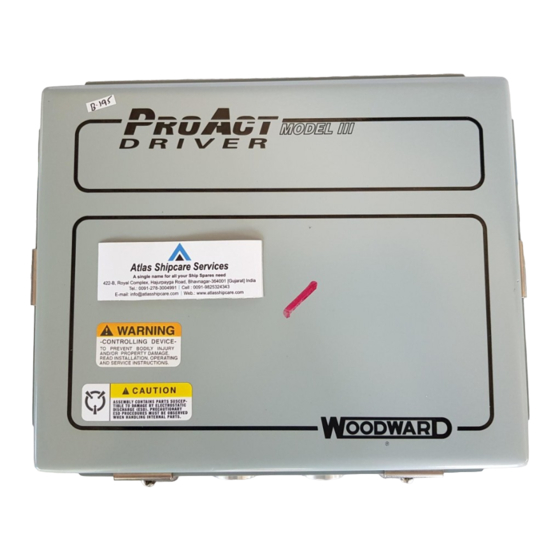

Summary of Contents for Woodward ProAct III
- Page 1 Installation and Operation Manual ProAct™ III / IV Electric Powered Actuator and Driver Manual 04127 (Revision B)
- Page 2 Protection of Electronic Controls, Printed Circuit Boards, and Modules. Woodward Governor Company reserves the right to update any portion of this publication at any time. Information provided by Woodward Governor Company is believed to be correct and reliable. However, no responsibility is assumed by Woodward Governor Company unless otherwise expressly undertaken.
-
Page 3: Table Of Contents
5. S ..............20 HAPTER ERVICE PTIONS Product Service Options ..................20 Woodward Factory Servicing Options ..............21 Returning Equipment for Repair ................22 Replacement Parts ....................22 Engineering Services .................... 23 How to Contact Woodward ................... 23 ... - Page 4 Figure 1-3. ProAct IV Actuator Outline Drawing ............. 5 Figure 1-4. Plant Wiring Diagram ................6 Figure 2-1. ProAct III and IV Functional Block Diagram ......... 7 Figure 2-2. ProAct III Actuator Cross Section ............9 ...
-
Page 5: Electrostatic Discharge Awareness
PCB from the control cabinet, place it in the antistatic protective bag. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. - Page 6 ProAct III/IV Actuator/Driver Manual 04127 Woodward...
-
Page 7: Chapter 1. General Information
ProAct III and ProAct IV drivers. The ProAct III actuator provides up to 14 J (10 ft-lb) of work to move the fuel setting lever on the engine. The ProAct IV actuator provides up to 27 J (20 ft-lb) of work. - Page 8 J1 Mating Connector 5416-460 Driver only J2 Mating Connector 5416-461 Driver and Actuator J2 Mating Connector (90°) 1631-639 Driver and Actuator J3 Mating Connector 203-889 Driver only ProAct III/IV Connector Kit 8923-188 J1, J2 (2), no J3 Table 1-3. ProAct Accessories Woodward...
-
Page 9: Figure 1-1. Proact Driver Outline Drawing
Manual 04127 ProAct III/IV Actuator/Driver Figure 1-1. ProAct Driver Outline Drawing (Conduit version shown; MS connector version has connector plugs) Woodward... -
Page 10: Figure 1-2. Proact Iii Actuator Outline Drawing
ProAct III/IV Actuator/Driver Manual 04127 Figure 1-2. ProAct III Actuator Outline Drawing Woodward... -
Page 11: Figure 1-3. Proact Iv Actuator Outline Drawing
Manual 04127 ProAct III/IV Actuator/Driver Figure 1-3. ProAct IV Actuator Outline Drawing Woodward... -
Page 12: Figure 1-4. Plant Wiring Diagram
ProAct III/IV Actuator/Driver Manual 04127 NOTE 1—Mating connectors: J1 (5416-460), J2 (5416-461), J3 (203 889). NOTE 2—Shielded wires to be twisted pairs with shield grounded at driver end only. NOTE 3—8, 6, or 4 mm² (8, 10, or 12 AWG) stranded wire. Must be as short as possible. -
Page 13: Chapter 2. Description Of Operation
Introduction The ProAct™ control system functions by receiving a current signal from a Woodward electronic governor. The system then sends a pulse width modulated (PWM) current (–20 A to +20 A) signal to the actuator, modified by signals from a position feedback, velocity, and current sensor from the actuator (see Figure 2-1). -
Page 14: 4-20 Ma Output Models
ProAct III/IV Actuator/Driver Manual 04127 A 25-turn potentiometer (Offset) adjusts the actuator position with a minimum input signal from the speed control. A 25-turn pot (Span) adjusts how far the actuator travels when the speed control signal varies from minimum to maximum. This pot adjusts the maximum position of the actuator. -
Page 15: Figure 2-2. Proact Iii Actuator Cross Section
Manual 04127 ProAct III/IV Actuator/Driver Figure 2-2. ProAct III Actuator Cross Section (MS connector plug shown, conduit version has conduit connector) Woodward... -
Page 16: Figure 2-3. Proact Iv Actuator Cross Section
ProAct III/IV Actuator/Driver Manual 04127 Figure 2-3. ProAct IV Actuator Cross Section (MS connector plug shown, conduit version has conduit connector) Woodward... -
Page 17: Chapter 3. Installation
Keep the fins as clean as possible to improve heat transfer. Do NOT paint the fins, since this will reduce the heat transfer efficiency. If operating temperature is a concern, contact Woodward for more information. Woodward... -
Page 18: Actuator Bracket
Avoid pressure washing near the shaft seals. The ProAct III actuator weighs 11 kg (25 lbs), and the ProAct IV actuator weighs 19 kg (42 lbs). The bracket and attaching hardware must be designed to hold the weight and to withstand the vibration associated with engine mounting. -
Page 19: Linkage
Maximum actuator speed is 900 degrees per second in both the increase and decrease fuel directions. The ProAct III actuator's Mass Moment of Inertia (MMOI) is 0.027 in-lb-sec². The ProAct IV actuator's MMOI is 0.058 in-lb-sec². -
Page 20: Electrical Connections
ProAct III/IV Actuator/Driver Manual 04127 ProAct III actuator stops are designed to absorb 1.1 J (10 in-lb) of kinetic energy with 3 degrees overtravel. ProAct IV actuator stops are designed to absorb 2.3 J (20 in-lb) of kinetic energy with 3 degrees of overtravel. If the actuator travel stops are used, the linkage must be designed to allow this 3 degree overrun. -
Page 21: Power Supply
Installations with severe electromagnetic interference (EMI) may require additional shielding precautions. Contact Woodward for more information. Failure to provide shielding can produce future conditions which are difficult to diagnose. Proper shielding at the time of installation is required to assure satisfactory operation of the ProAct control system. -
Page 22: Driver Adjustments
ProAct III/IV Actuator/Driver Manual 04127 Figure 3-4. Wiring to Power Supply Driver Adjustments It is important to set up the ProAct driver in the order that follows. See Figure 3-5 for the location of potentiometers on the driver box. Always hold onto the side of the control box with one hand while making an adjustment with the other hand. -
Page 23: Actuator Travel
Manual 04127 ProAct III/IV Actuator/Driver Figure 3-5. ProAct Driver Adjustment Locations Actuator Travel The driver's span and offset adjustments normally don't need to be changed unless you experience difficulty getting the actuator to travel full stroke. The following graphs define the relationship between command signal (0–200 mA or 4–20 mA) and actuator position. -
Page 24: Figure 3-6. Tolerance Limits In Driver Setup
ProAct III/IV Actuator/Driver Manual 04127 The actuator position feedback sensor is factory set and should not be adjusted. Figure 3-6. Tolerance Limits in Driver Setup Woodward... -
Page 25: Chapter 4. Troubleshooting
Manual 04127 ProAct III/IV Actuator/Driver Chapter 4. Troubleshooting Introduction Improper engine operation is often the result of factors other than governor operation. This chapter gives tips about engine problems which can resemble governor problems. Make sure the engine is operating correctly before making any changes in the governor. -
Page 26: Chapter 5. Service Options
A Recognized Turbine Retrofitter (RTR) is an independent company that does both steam and gas turbine control retrofits and upgrades globally, and can provide the full line of Woodward systems and components for the retrofits and overhauls, long term service contracts, emergency repairs, etc. -
Page 27: Woodward Factory Servicing Options
Flat Rate Remanufacture: Flat Rate Remanufacture is very similar to the Flat Rate Repair option with the exception that the unit will be returned to you in “like- new” condition and carry with it the full standard Woodward product warranty (Woodward Product and Service Warranty 5-01-1205). This option is applicable to mechanical products only. -
Page 28: Returning Equipment For Repair
To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. -
Page 29: Engineering Services
Manual 04127 ProAct III/IV Actuator/Driver Engineering Services Woodward offers various Engineering Services for our products. For these services, you can contact us by telephone, by email, or through the Woodward website. • Technical Support • Product Training • Field Service Technical Support is available from your equipment system supplier, your local Full- Service Distributor, or from many of Woodward’s worldwide locations, depending... -
Page 30: Technical Assistance
Type of Fuel (gas, gaseous, steam, etc) Rating Application Control/Governor Information Please list all Woodward governors, actuators, and electronic controls in your system: Woodward Part Number and Revision Letter Control Description or Governor Type Serial Number Woodward Part Number and Revision Letter... -
Page 31: Proact Iii/Iv Actuator/Driver Specifications
Model IV (MS connector), 4–20 mA input *—These four models have an additional 4-20 mA output which is proportional to actuator position. Actuator Part Numbers 8405-009 ProAct III (MS connector), CW to max. 8405-010 ProAct III (conduit), CW to max. 8405-011 ProAct III (MS connector), CCW to max. - Page 32 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.
