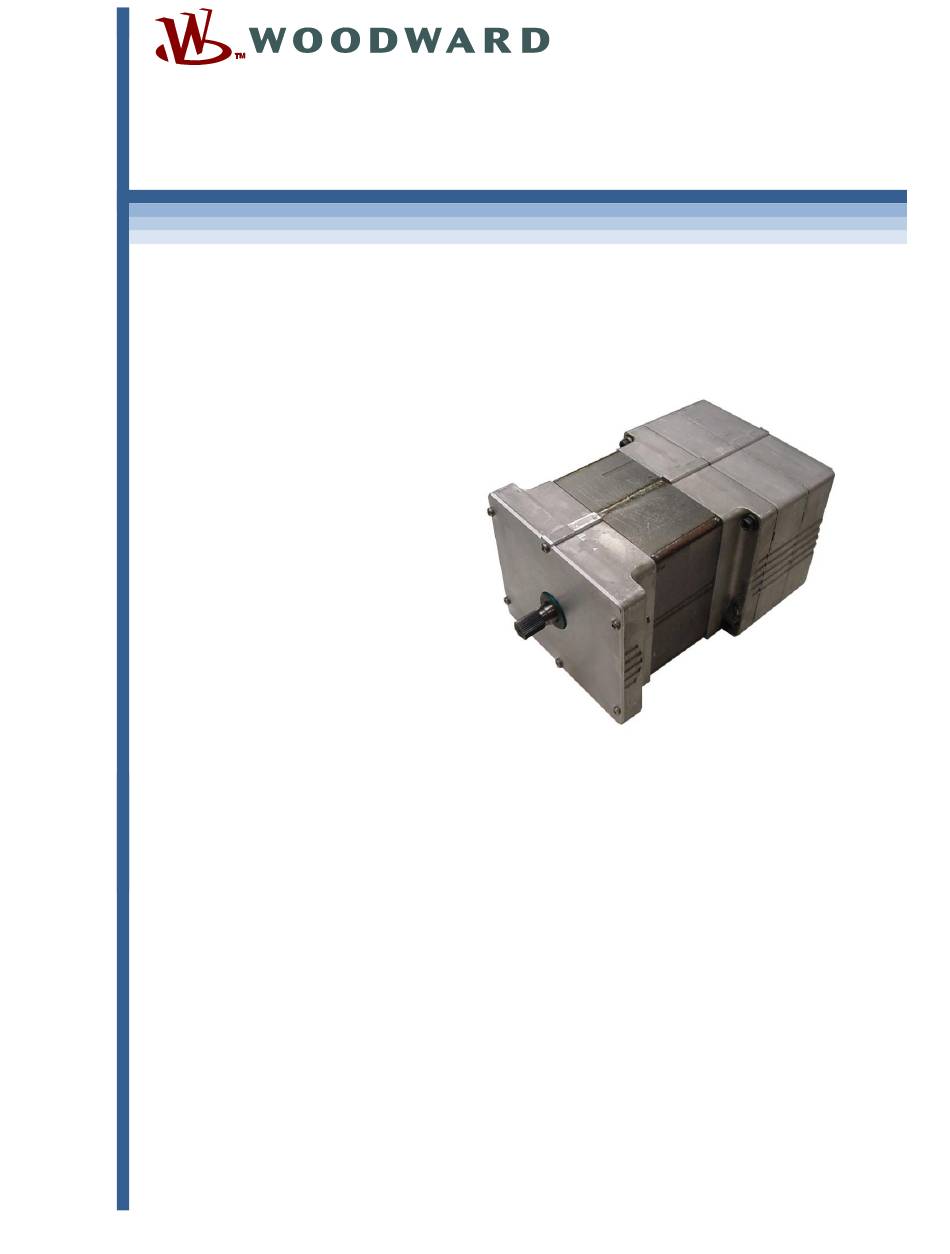

Product Manual 26112
(Revision W, 7/2016)
Original Instructions

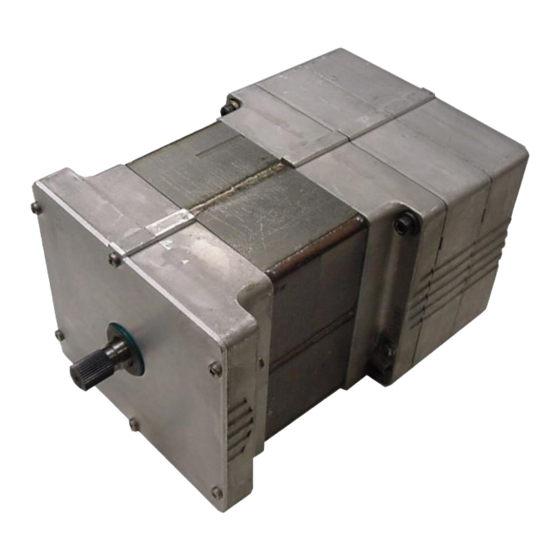

ProAct™ Digital Plus Electric Actuator
with Integral Driver
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProAct Digital Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Woodward ProAct Digital Plus

Summary of Contents for Woodward ProAct Digital Plus

  • Page 1 Product Manual 26112 (Revision W, 7/2016) Original Instructions ProAct™ Digital Plus Electric Actuator with Integral Driver Installation and Operation Manual...
  • Page 2 Revisions—Changes in this publication since the last revision are indicated by a black line alongside the text. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.

  • Page 3: Table Of Contents

    Manual 26112 ProAct Digital Plus Contents ................ARNINGS AND OTICES ..........LECTROSTATIC ISCHARGE WARENESS ..............EGULATORY OMPLIANCE 1. G ............1 HAPTER ENERAL NFORMATION Introduction ......................1 How to Use This Manual ..................1 Description ......................1 Controller Overview ....................4 Mechanical Setup ....................
  • Page 4 ERVICE PTIONS Product Support Options ..................101 Product Service Options ..................101 Returning Equipment for Repair .................102 Replacement Parts .....................102 Engineering Services ..................103 Contacting Woodward’s Support Organization ..........103 Technical Assistance ..................104 ™ P ........... 105 PPENDIX ROGRAM UMMARY Configure Mode Settings ..................105 Service Mode Settings ..................105...
  • Page 5 Figure 2-3. Flange Mount Actuator Selection Guidelines ........12 Figure 2-4. Fuel Stops ..................13 Figure 2-5a. ProAct Digital Plus Actuator Outline Drawing ........15 Figure 2-5b. ProAct Digital Plus Actuator Outline Drawing ........16 Figure 2-5c. ProAct Digital Plus Actuator Outline Drawing ........17 Figure 2-5d.

  • Page 6: Warnings And Notices

    Start-up On- and off-highway Mobile Applications: Unless Woodward's control functions as the supervisory control, customer should install a system totally independent of the prime mover control system that...

  • Page 7: Electrostatic Discharge Awareness

    Do not touch the components or conductors on a printed circuit board with your hands or with conductive devices. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715 , Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules.

  • Page 8: Regulatory Compliance

    Peripheral equipment must be suitable for the location in which it is used. General Installation and Operation Notes and Requirements: The ProAct Digital Plus is suitable for use in Class I, Division 2, Groups A, B, C, and D per CSA for Canada and US, Ordinary Locations per CSA for Canada and US, or non-hazardous locations only, depending on the individual unit labeling.
  • Page 9 Manual 26112 ProAct Digital Plus In order to maintain the NEMA 3R outdoor rating, any wiring connections to the ProAct must be done in accordance with NEMA 3R standards and practices. Field wiring must be suitable for at least 85 °C.
  • Page 10 ProAct Digital Plus Manual 26112 [This page intentionally left blank] viii Woodward...

  • Page 11: Chapter 1. General Information

    This manual does not contain instructions for the operation of the complete engine system. For engine or plant operating instructions, contact the plant-equipment manufacturer. This revision of the manual applies to all ProAct Digital Plus models with software version 2.00 or newer. How to Use This Manual The following summarizes how to install a ProAct actuator into a new or existing system.

  • Page 12: Figure 1-1A. Proact Digital Plus Functional Overview

    ProAct Digital Plus Manual 26112 Figure 1-1a. ProAct Digital Plus Functional Overview Woodward...

  • Page 13: Figure 1-1B. Proact Digital Plus Functional Overview

    ProAct Digital Plus Figure 1-1b. ProAct Digital Plus Functional Overview The ProAct Digital Plus actuator can be commanded to a position via (4 to 20) mA, (0 to 200) mA, PWM, or CAN interfaces. In addition, given an on board position feedback device, the actual position is available to the system through a position output signal.

  • Page 14: Controller Overview

    75° at the output shaft. It can be mounted in either a base mount or flange mount configuration, with the exception of the ProAct Digital Plus Model IV which can only be base mounted. The units are designed to operate in an on-engine environment and can therefore withstand high levels of vibration and temperature extremes.

  • Page 15: Figure 1-2. Driver Overview

    Communications ProAct Driver Figure 1-2. Driver Overview Rotation All ProAct Digital Plus actuators have 73–77 of available travel. The max fuel direction of this travel is software configurable in the clockwise or counterclockwise direction through the Service Tool. Mechanical Stops Internal mechanical actuator stops will only survive a maximum kinetic energy of 0.011 J (0.097 in-lb).
  • Page 16 (4 to 20) mA Actuator Position CAN Command 0 % to 100 % Actuator Position Table 1-2. Positioning Command Input Inputs/ Outputs (I/O) The following Inputs/Outputs (I/O) are available in the ProAct Digital Plus:   power input 1 discrete output  ...
  • Page 17 (see Event Log). The optional CAN communications can also be used to determine alarm and shutdown causes. The ProAct Digital Plus will continue to operate with an alarm condition (for example, failure of the primary demand signal). However, the unit will cease to operate on a shutdown condition (for example, failure of both primary and backup demand signals).
  • Page 18 SAE J1939, but uses proprietary group extensions. The CAN port supports positioning (position demand from CAN) of the driver. It also supports ProAct Digital Plus monitoring of all shutdown and alarm conditions as well as some system variables. The address is determined by the CAN address discrete inputs.

  • Page 19: Chapter 2. Hardware Installation

    Woodward if damage is found. Mounting Location The ProAct Digital Plus actuator is designed to operate within a temperature range of –40 to +85 °C (–40 to +185 °F). Mount the driver close enough to the battery to meet the wire-length requirements (see wiring instructions in Chapter 3).

  • Page 20: Actuator Application Guidelines

    Actuator Selection and Temperature Monitoring Guidelines The thermal design of the ProAct Digital Plus is based on the cooling of critical electrical components coupled to the aluminum frame of the actuator. In this manner, by maintaining a certain temperature at a specified location on the actuator frame, the temperature of the electronics will be maintained within acceptable limits.

  • Page 21: Figure 2-1. Temperature Monitoring Zone (Model Iii Shown)

    Figure 2-1. Temperature Monitoring Zone (model III shown) Figure 2-2. Base Mount Actuator Selection Guidelines CSA hazardous and CSA and UL ordinary location certification of the ProAct Digital Plus is not applicable if the ambient temperature exceeds 85 °C. Woodward...

  • Page 22: Figure 2-3. Flange Mount Actuator Selection Guidelines

    ProAct Digital Plus Manual 26112 Figure 2-3. Flange Mount Actuator Selection Guidelines In order to determine whether a customer-specific application will meet this temperature limitation, the following charts are included (Figures 2-2 and 2-3). For each mounting condition the chart gives a general guideline for the surrounding environment.

  • Page 23: Fuel Position Stops

    Manual 26112 ProAct Digital Plus Fuel Position Stops Diesel Stops—Diesel installations will generally use the fuel system minimum and maximum position stops. Diesel engine racks are normally designed to provide the minimum and maximum stops without binding. The actuator's stops must not prevent the actuator from driving the fuel linkage to the minimum and maximum positions.
  • Page 24 The maximum actuator speed is 1000 degrees per second in both increase and decrease fuel directions. The Mass Moment of Inertia (MMOI) for the ProAct Digital Plus actuators are: Model I, II 4.9E-3 lb-in-s² (5.5E-4 kgm²) Model III 5.6E-3 lb-in-s²...

  • Page 25: Figure 2-5A. Proact Digital Plus Actuator Outline Drawing

    Manual 26112 ProAct Digital Plus Figure 2-5a. ProAct Digital Plus Actuator Outline Drawing Woodward...

  • Page 26: Figure 2-5B. Proact Digital Plus Actuator Outline Drawing

    ProAct Digital Plus Manual 26112 Figure 2-5b. ProAct Digital Plus Actuator Outline Drawing (Pilot Adaptor Version) Woodward...

  • Page 27: Figure 2-5C. Proact Digital Plus Actuator Outline Drawing

    Manual 26112 ProAct Digital Plus Figure 2-5c. ProAct Digital Plus Actuator Outline Drawing Woodward...

  • Page 28: Figure 2-5D. Proact Digital Plus Actuator Outline Drawing

    ProAct Digital Plus Manual 26112 Figure 2-5d. ProAct Digital Plus Actuator Outline Drawing Woodward...

  • Page 29: Chapter 3. Wiring

    If you are replacing an earlier ProAct series actuator with the ProAct Digital Plus model, be sure to remove the original driver, since the ProAct Digital Plus actuator has an integrated driver. Due to the hazardous location listings associated with this product, proper wire type and wiring practices are critical to operation.

  • Page 30: Figure 3-1A. Control Wiring Diagram (Blank Cover)

    ProAct Digital Plus Manual 26112 Figure 3-1a. Control Wiring Diagram (blank cover) Woodward...

  • Page 31: Figure 3-1B. Control Wiring Diagram (Can Only)

    Manual 26112 ProAct Digital Plus Figure 3-1b. Control Wiring Diagram (CAN only) Woodward...

  • Page 32: Figure 3-1C. Control Wiring Diagram (Digital Plus)

    ProAct Digital Plus Manual 26112 Figure 3-1c. Control Wiring Diagram (Digital Plus) Woodward...

  • Page 33: Figure 3-1D. Control Wiring Diagram (Can Only With External Run Enable)

    Manual 26112 ProAct Digital Plus Figure 3-1d. Control Wiring Diagram (CAN only with External Run Enable) Woodward...

  • Page 34: Figure 3-2. Representative I/O Schematic

    ProAct Digital Plus Manual 26112 Figure 3-2. Representative I/O Schematic Woodward...
  • Page 35 Manual 26112 ProAct Digital Plus Cable Shield Termination The ProAct control is designed for operation without shielded cables. When shielded cables are provided, terminate the shield to the optional termination point shown in Figure 2-5d. Hardware Jumpers The analog input has a range jumper to select either a 20 mA range (JPR2) or a 200 mA range (JPR1).

  • Page 36: Figure 3-3. Correct Wiring To Power Supply

    ProAct Digital Plus Manual 26112 Figure 3-3. Correct Wiring to Power Supply Figure 3-4. Incorrect Power Supply Wiring Woodward...

  • Page 37: Proact Inputs/Outputs

    Manual 26112 ProAct Digital Plus ProAct Inputs/Outputs Actuator Input Power The following table summarizes the driver power input requirements. The input voltage operational range is (18 to 32) V (dc), 24 V (dc) nominal. The power input provides protection against reverse voltage connection. Refer to Tables 3-1 and 3-2 for maximum cable lengths and wire sizes.
  • Page 38 ProAct Digital Plus Manual 26112 Recommended maximum wire length from power source to ProAct actuator based on a 24 V power source. Input Max Wire Max Wire Max Wire Max Wire Power Length Length Length Length (ProAct (ProAct Model (ProAct Model...

  • Page 39: Communication Hardware Descriptions

    When the input is closed and all shutdown conditions are cleared, the actuator will position its output to the demanded setting. If using firmware version 2.20 Woodward part number 5418-2590, it is possible to configure this input for Run Enable – Closed to Run = False.
  • Page 40 ProAct Digital Plus Manual 26112 Any RS-232 wiring must meet the requirements in the EIA RS-232 Standard document. The RS-232 standard states that the maximum length of the RS-232 cable between the driver and the PC must be 50 feet (15 meters) with a total capacitance less than 2500 pF.

  • Page 41: Chapter 4. Setup, Calibration, And Adjustments

    Tool) for instructions on installation and operation of the Service Tool. CONTROL ASSISTANT IN PLACE OF WATCH WINDOW Many Woodward controls use the Servlink / Watch Window standard software to service and tune the variables in the control. This procedure is explained in this manual. Control Assistant software is replacing Watch Window Pro and Watch Window Standard software in PCs using Windows 7.

  • Page 42: Calibration

    ProAct Digital Plus Manual 26112 Calibration The ProAct™ digital control requires no field calibration, the analog signals are factory calibrated. Adjustments are available in the Service Mode to account for field variations. Adjustments Adjustments are provided to optionally fine-tune an application. Over 20 adjustable parameters are available.

  • Page 43: Chapter 5. Description Of Operation

    (see Alarms section). If all configured signals are faulty, the ProAct Digital Plus is put into the configured shutdown state and remains shut down until a valid signal is received. At least one position demand input must be configured for use for the ProAct actuator to operate.

  • Page 44: Multiple Demands

    ProAct Digital Plus Manual 26112 Multiple Demands If redundant position demand signals are configured, one input is the primary signal and the other is the backup signal. The primary signal and the backup signal must be different signals and must be selected from the configurable sources.

  • Page 45: Drive Current Limitations

    Manual 26112 ProAct Digital Plus Drive Current Limitations The current to the coil is limited to prevent damage. A transient and a steady state limit are used. The transient current limitation is active during a transition in position output. After a short delay (about 3 seconds), the steady state limit is activated if desired position is not reached.

  • Page 46: Communications

    CAN Communications The optional CAN port supports positioning (position demand from CAN) of the driver. It also supports ProAct Digital Plus monitoring of all shutdown and alarm conditions as well as some system variables. The driver provides communications via CAN, version 2.0B, with 29-bit identifiers. The protocol complies with SAE J1939, but uses proprietary group extensions.

  • Page 47: Service Port (Rs-232) Communications

    Normal (Running) mode. However, there are three additional modes available to the customer for setup and monitoring: Configuration, Service, and User Calibration. The Service Tool provided is Woodward Watch Window using the Servlink DDE server. The service tool programs have password protection to prevent inadvertent changes.

  • Page 48: User Operating Modes

    Configuration parameters can be monitored at any time. Unit does not need to be shut down for configurable parameter monitoring. The ProAct Digital Plus will do nothing—the current to the actuator controller will remain off—until it has a valid configuration.

  • Page 49: Figure 5-5. Typical Service Tool Screen

    Program changes and tuning/calibration are password protected. The password is a simple ‘keyword’ password that is fixed and cannot be changed. It is intended only to prevent inadvertent changes to the ProAct Digital Plus. One fixed password is available per mode. This password is required only to make changes (writes), program monitoring does not require a password.

  • Page 50: Chapter 6. Diagnostics

    Shutdowns Detection and Annunciation A shutdown condition forces the actuator to a predetermined position regardless of the demanded position. The ProAct Digital Plus can be programmed to go to one of three predetermined states when a shutdown condition is detected. A shutdown condition can be configured to power-down (disable the current driver to the actuator), go to min (0 %) position, or go to max (100 %) position.

  • Page 51: Power-Up Diagnostics

    Event Log The Event Log provides a historical logging of ProAct Digital Plus alarms and shutdowns. It is capable of storing all events, along with the number of times that event occurred and the relative time of the first occurrence. The log will store its information in non-volatile memory to retain the data on power loss.
  • Page 52 ProAct Digital Plus Manual 26112 CODE: 02: EEPROM Error This is caused by faulty hardware, which is checked during power up. This fault indication is not available to Servlink, only a flash code on the diagnostic LED. The red LED flash code consists of two quick ON (0.25 s) flashes followed by a one second OFF time (see Figure 2-5 for the location of this LED access).

  • Page 53: Figure 6-1. Typical Flash Code

    Manual 26112 ProAct Digital Plus Flash Codes An LED flash code is available to identify the shutdown conditions detected by the ProAct . The LED can only be viewed by removing the wiring access cover. The flash codes for each diagnostic are identified both as the “code” number and in the table at the end of this document (see Figure 2-5 for the location of this LED access).
  • Page 54 ProAct Digital Plus Manual 26112 CODE: 13: RS232 (Servlink Service Tool) Commanded Shutdown Servlink Variable: Service: Status Error—Shutdowns. RS-232 Shutdown (13) The Shutdown mode is activated over the serial port with a shutdown command using Watch Window (Configure: Mode). The actuator will perform the Shutdown Action configured (for example, Min, Max, or Power Down).
  • Page 55 Manual 26112 ProAct Digital Plus CODE: 27: Internal Watchdog Timeout Servlink Variable: Service:Status Error—Shutdowns. Watchdog Timeout (27) Internal run-time software watchdog timeout error of 1 second. If a watchdog timeout error is detected the ProAct will shut down and attempt to restart the ProAct control.
  • Page 56 ProAct Digital Plus Manual 26112 CODE: 43 : Demand Not Tracking signal alert Servlink Variable: Service:Status Error—Alarms. Tracking Error (43) Primary and Backup demands differ by more than the configured tracking error for longer than the configured tracking error delay and the backup demand signal is configured for use.
  • Page 57 Manual 26112 ProAct Digital Plus CODE: 54 : PWM Signal Failure Servlink Variable: Service:Status Error—Alarms. Pwm No Signal (54) This is caused by failure of the input signal or hardware which is continuously checked. Set if there are no pulses on the PWM input. This is needed because at zero frequency, the frequency error will not be set.
  • Page 58 ProAct Digital Plus Manual 26112 CODE: 71 : High Temperature Alert Servlink Variable: Service:Status Error—Alarms. High Temp Alert (71) This is caused by high temperature detected in the unit, which is checked continuously. The alarm is enabled when the detected temperature is greater than the configured temperature alarm set point for more than the configured delay and is disabled when the conditions go false.
  • Page 59 Manual 26112 ProAct Digital Plus CODE: 85 : +5V out of range Servlink Variable: Service:Status Error—Alarms. Supply 5Volt Error (85) This is caused by faulty hardware. The 5-volt supply voltage is incorrect. An internal +5 V supply voltage must be correct in order for the analog electronics on the PCB to function properly.

  • Page 60: Chapter 7. Can Details

    ProAct Digital Plus Manual 26112 Chapter 7. CAN Details Overview This section describes the communication that will take place over the SAE J1939 Data Link when the optional CAN (Controller Area Network) communication link is used. CAN Bit Timing The default bit times for the ProAct™ Digital Plus are configured per SAE J1939 /11 section 3.14 (December 1994 version).
  • Page 61 Manual 26112 ProAct Digital Plus Extension Set 0 When the extensions setting is zero (0), all CAN transmissions are disabled. When the extensions setting is greater than zero, the appropriate set of data is transmitted/received over the CAN link. If CAN demand is used, CAN is configured as primary or backup demand, then a setting of zero is not permitted and results in a configuration error shutdown.
  • Page 62 ProAct Digital Plus Manual 26112 Heart Beat Counter Description Value Transmission repetition rate 100 ms Data length 2 bytes Data page PDU format PDU specific Default priority Parameter Group Number 65311 FF1Fh Byte: Heart Beat Counter 3...8 Reserved Heart Beat Counter...

  • Page 63: Diagnostics From Proact Actuator

    Manual 26112 ProAct Digital Plus Identification field Data length: 1 byte Range: Software version number Data length: 7 bytes (maximum of 6 bytes of data plus "*") Range: ASCII characters, delimited by "*" Resolution 1 character/byte Suspect Parameter Number: “1.01*”...

  • Page 64: Event Codes

    ProAct Digital Plus Manual 26112 Diagnostic codes Diagnostics J-1939 data frame bit position Shutdown – Commanded Shutdown Shutdown—Position Demand Failure Shutdown—Internal Failure Alarm—Internal Fault Alarm—Primary Demand Fault Alarm—Backup Demand Fault 10,11 Reserved—sent as “1” 12 to 31 Commanded Shutdown includes the following shutdowns, which are individually identified in the Service Tool: Shutdown—Discrete In Low Pwr Standby...

  • Page 65: Transmission Rate

    Manual 26112 ProAct Digital Plus Transmission Rate The diagnostics messages are transmitted at a rate of once per second. This message is sent only when there is at least one active fault or in response to a request from the speed control.

  • Page 66: Arbitration

    ProAct Digital Plus Manual 26112 Arbitration Typical Arbitration field (information only) using 29 bits: Example using Heart Beat Counter in Extension Set 1 Source Priority Address 3 bits 1 bit 1 bit 8 bits 8 bits 8 bits 110 0 0 11111111 00011111 00010011...

  • Page 67: Chapter 8. Service Tool

    ProAct™ actuator. This chapter describes installation and use of the Service Tool. It identifies the Servlink parameters available in the ProAct product that can be viewed using the Woodward Watch Window Service Tool. It also provides detailed information on configuring and setting up the ProAct actuator to the customer-specific field application.

  • Page 68: Figure 8-1. Operating Modes

    ProAct Digital Plus Manual 26112 User Stops (Service) The User Stops (also referred to as Rigging or User Calibration) mode of the Service Tool provides the capability to set the min and max position to match the rigging of the actuator and valve. Both automatic and manual procedures are available to perform this setup.
  • Page 69 Factory Calibration, Test, and Debug Modes The Factory Calibration, Testing, and Debugging are performed using the Woodward Watch Window Professional tool. The Factory Calibration mode performs analog input and analog output hardware calibration in software (calibrate out resistor tolerances). This includes calibration of Analog I/O (4 mA to 20 mA input, 20 mA to 180 mA input, 4 mA to 20 mA Output, Feedback sensor, Current sensor).

  • Page 70: Getting Started

    Installation Procedure Install the Watch Window and Servlink server software using the setup program on the CD or Disk 1. Alternatively, the Watch Window software can be downloaded and installed from the Woodward internet site at: www.woodward.com/software What to Do Next...
  • Page 71 Verify the communications settings: Set the ‘Port’ to match your serial port connection (e. g., COM1). ‘Mode’ is set to point- to- point for a single Woodward control. Set the ‘Baud’ to 19200. c. Select ‘OK’ to initiate communications. If a control is detected, ‘0’s and ‘1’s will stream across the screen, otherwise a Scan Error message will appear.
  • Page 72 Save the network definition file by selecting ‘File/ Save’ from the Servlink menu. Set an appropriate name for the file and select ‘Save’. Start the Watch Window program (Programs/ Woodward/ Watch Window Standard 1.6/ Watch Window Standard). The following appears on the screen.

  • Page 73: Watch Window Numeric Format

    Using Watch Window Watch Window was developed by Woodward to be a Servlink client software product that provides a generic PC interface to a Woodward actuator/control, and is a very powerful setup, testing, tuning, and troubleshooting tool. Watch Window...
  • Page 74 ProAct Digital Plus Manual 26112 Watch Window User Interface The Watch Window user interface is made up of three types of windows: the Main Window the Explorer the Inspector All Watch Window applications have only one main window and one Explorer window.

  • Page 75: Software Version Identification

    Like the Standard version, the Professional version of Watch Window software can be downloaded and installed from the Woodward internet site at: www.woodward.com/software A free trial period is included. This site can also be used to obtain license authorizations.

  • Page 76: Chapter 9. Proact™ Parameter Setup

    Mode’ tab sheet. Make all desired Configure mode parameter changes. To change parameters on the Configure tab sheets, the Woodward control must be in a safe state. The following steps identify how to enter and exit the Configuration mode. Woodward...
  • Page 77 Manual 26112 ProAct Digital Plus Entering Configure Mode Select the Configure Mode tab sheet and shut down the driver by setting the Shutdown Command value to ‘true’ or by opening the Low Power Standby Mode discrete input. Enter the appropriate configure mode Password (1113) and either select ‘ENTER’...

  • Page 78: Configure Mode Parameters

    ProAct Digital Plus Manual 26112 106 Invalid PwmIn max/min duty values (the PWM demand input setting for min duty cycle must be less than the max value) 107 Invalid AnalogIn max/min values (the analog input demand input setting for min must be less than the max value)

  • Page 79: Figure 9-2. Configure Mode: Unit Setup

    Manual 26112 ProAct Digital Plus Password dflt =0 Password input command for the Configure mode. To enter a value, highlight or delete the default value (‘0’) and use the keypad to enter the numeric password. The input is accepted when the enter key is pressed or the equals sign to the right of the input is selected.
  • Page 80 (false, true) (This parameter only available with ProAct Software Version 2.20 special firmware Woodward part number 5418-2590) (Check the version number under Service: Unit Status:) When set to true, the run enable contacts will be closed for run mode, and open for Low Power Standby Mode.

  • Page 81: Figure 9-3. Configure Mode: Demand Setup

    Manual 26112 ProAct Digital Plus Temp Protect Enable dflt =true (false, true) Temperature Protection Configuration. This enables current limiting based on temperature and is a combination of temperature protection and compensation. When set to true (recommended), protection is provided to limit the drive current output when the internal actuator temperature exceeds the absolute failure levels.

  • Page 82: Adjusting User Stops And Dynamics

    ProAct Digital Plus Manual 26112 AnlgIn 200 Min Value (mA) dflt= 20 mA(range 0.0–200) Analog Input Minimum Demand Value in mA. This setting corresponds to the milliamp signal that would demand the actuator to be fully closed (0 %) (should be less than the ’AnlgIn 200 Max Value (mA)’...

  • Page 83: Figure 9-4. Min/Max Stops Relative To The Overall Travel

    Manual 26112 ProAct Digital Plus An improperly calibrated control could cause an overspeed or other damage to the prime mover. To prevent possible serious injury from an overspeeding prime mover, read this entire procedure before starting the prime mover. An unsafe condition could occur with improper use of these software tools.

  • Page 84: Figure 9-5. Electrical Stop Adjustments Relative To The Mechanical Min And Max Stops

    ProAct Digital Plus Manual 26112 6. Select the desired calibration mode. There are 2 modes, a manual stroking mode and an automatic mode. Refer to Figures 9-7 and 9-8. If the Auto mode is selected, steps 7 through 11 will occur automatically without any user input required.

  • Page 85: Figure 9-6. Service Mode: Adjust User Stops

    Manual 26112 ProAct Digital Plus 15. When calibration is complete, set the Mode Exit to true to return to the previous (Shutdown) mode. Service: Adjust User Stops (must be shut down and password entered) This category provides the access to change parameters in the Adjust User Stops Mode.

  • Page 86: Adjusting And Testing Actuator Dynamics

    ProAct Digital Plus Manual 26112 Auto Status—String indication of the automatic user stop procedure. –1= Failed 0 = Disabled 1 = Enabled 2 = Looking for Min Stop 3 = Looking for Max Stop 4 = Stops Set Auto Status Int—Integer indication of the Auto Status string (see above).

  • Page 87: Figure 9-7. Auto Stroke Mode Flowchart

    Manual 26112 ProAct Digital Plus User Calibration Operator Flow - Auto Mode PAG2 must be in a shutdown state START Servlink Variables Mode Enabled Mode Password Enter the Mode Auto Execute Password Auto Status Auto Status Int Mode Exit Password is cleared.

  • Page 88: Figure 9-8. Manual Stroke Mode Flowchart

    ProAct Digital Plus Manual 26112 User Calibration Operator Flow - Manual Mode PAG2 must be in a shutdown state Servlink Variables Mode Enabled START Mode Password Manual Enable Enter the Mode Manual - At Min Posn Password Manual - At Max Posn...

  • Page 89: Service Mode Parameters

    Manual 26112 ProAct Digital Plus Actuator Inertia Setting dflt =0 (range 0–25) Actuator/valve inertia setting. This setting is available for systems with higher or lower inertia than the default as indicated by excessive shaft movement. A zero (0) setting is basically for an unconnected shaft, whereas, increasing the setting implies a higher inertia in the system.

  • Page 90: Figure 9-9. Service Mode: Hardware Adjustments

    ProAct Digital Plus Manual 26112 Service: Hardware Adjustments The hardware adjustments tab sheet contains all the parameters that can be used to “fine tune” the ProAct control to the specific application. Refer to Figure 9-9. An unsafe condition could occur with improper use of these software tools.
  • Page 91 Manual 26112 ProAct Digital Plus AnalogIn 200 Fail Max (mA) dflt = 250 mA (100 to 250) Value at which the analog input will be determined as failed, for the 200 mA analog input range. A failure is determined if the input is above the ‘Fail Max’...
  • Page 92 ProAct Digital Plus Manual 26112 Position Error Max (%) default = 10 % ( 1.0 to 110) This setting is the maximum difference between the position demand and the actual position in percentage before a position error alarm will be issued. The difference must exceed the ‘Error’...

  • Page 93: Monitoring Application Parameters

    Manual 26112 ProAct Digital Plus Stops—Max Stop Bias (deg) default = 0.5 degrees (–10 to 10) Electrical Stop adjustment in degrees of rotation. This is an actuator range adjustment setting for an extra “bias” when at the maximum output position. This value biases the overall 100 % demand position.
  • Page 94 Config ID—Displays the identification of the software system configurables. The default for this parameter is ProAct Digital Plus Configuration, however this string can be edited in the CFG file to a more meaningful name relative to the specific application setup and then downloaded back into the ProAct control.

  • Page 95: Figure 9-11. Service Mode: Position Control

    Manual 26112 ProAct Digital Plus Figure 9-11. Service Mode: Position Control Actual Current (A)—Indication of the actual current, in amps, from the driver to the actuator. Position Demand Error (%)—Indication of the difference between the demand position and the actual position in percentage of the user calibrated range. This error is filtered based on the internal model to prevent inadvertent alarm indications (see position error alarm).

  • Page 96: Figure 9-12. Service Mode: Status Error Alarms

    ProAct Digital Plus Manual 26112 Demand–Can Demand (%)—Continuously updated indication, even when failed, of the CAN position demand signal in percentage of the user calibrated range. Demand–PWM Demand (%)—Continuously updated indication, even when failed, of the PWM input position demand signal in percentage of the user calibrated range.

  • Page 97: Figure 9-13. Service Mode: Status Error Shutdowns

    Manual 26112 ProAct Digital Plus Service: Status Errors—Shutdowns The Status Errors—Shutdowns tab sheet contains status information on all monitored actuator shutdowns. Values that are TRUE, indicate the shutdown condition is active—forcing the unit from normal (running) operation into a shutdown mode. The Shutdown indication is non-latching and returns to false when the condition no longer exists.

  • Page 98: Figure 9-15. Service Mode: Status Error Log (2)

    ProAct Digital Plus Manual 26112 Figure 9-15. Service Mode: Status Error Log (2) Clear ErrorLog—Command to clear the error log of all errors. When issued, all Codes, Counters, and Times are set to zero. When a Clear Error Log is selected, the reset time changes to the present runtime hours (displayed under Unit Status).

  • Page 99: Figure 9-16. Service Mode: Temperature Histogram

    Manual 26112 ProAct Digital Plus If the RunTime is cleared, the runtime is reset to zero. If the run time is less than the reset time, the time in the log will be zero until the runtime exceeds to reset time.

  • Page 100: Chapter 10. Troubleshooting

    ProAct Digital Plus Manual 26112 Chapter 10. Troubleshooting Introduction Improper engine operation is often the result of factors other than governor operation. This chapter gives tips about engine problems, which can resemble governor problems. Make sure the engine is operating correctly before making any changes in the governor.

  • Page 101: General System Troubleshooting Guide

    The following is a general troubleshooting guide for areas to check which may present potential difficulties. By making these checks appropriate to your engine/turbine before contacting Woodward for technical assistance, your system problems can be more quickly and accurately assessed.

  • Page 102: Electrical Troubleshooting Guide

    ProAct Digital Plus Manual 26112 Electrical Troubleshooting Guide Analog Input If the Analog input is not functioning properly, verify the following:  Measure the input voltage on the terminal block. It should be in the range of (0 to 5) V.
  • Page 103 Manual 26112 ProAct Digital Plus Alarm or Shutdown Conditions If the ProAct actuator has any alarm or shutdown conditions, refer to Chapter 6 for details on the exact cause of the condition. The LED will indicate a flash code for shutdown conditions. Watch Window or CAN must be used to determine any alarm conditions.

  • Page 104: Performance Troubleshooting Guide

    ProAct Digital Plus Manual 26112 CAN Communications If a CAN port is not functioning properly, verify the following:  Check the wiring, look for a loose connection at the terminal blocks and disconnected or misconnected cables. Check wiring of termination resistor, if required.
  • Page 105 Manual 26112 ProAct Digital Plus Actuator has steady state position error:  Re-run stop position calibration (Service Mode: Adjust User Stops tab sheet).  Supply voltage too low.  Actuator load too large or actuator too small.  Free stuck linkage.

  • Page 106: Chapter 11. Proact™ Digital Plus Specifications

    IP56 per IEC60529. Humidity 60 °C, 95 % RH for five days at one cycle per day. Chemical Resistance The ProAct Digital Plus uses materials proven capable of withstanding normal engine environment chemicals per SAE J1455, such as diesel fuel, engine oil, and antifreeze.

  • Page 107: Electrical Specifications

    Manual 26112 ProAct Digital Plus Electrical Specifications Feature Specification Input Power—max Model I—67 W (transient) / 19 W (continuous) Model II—251 W (transient) / 65 W (continuous) Model III—282 W (transient) / 73 W (continuous) Model IV—371 W (transient) / 101 W (continuous) Max Current—Transient...
  • Page 108 ProAct Digital Plus Manual 26112 Discrete Inputs Input type: Ground referenced discrete input < 2 V (dc) = “ON” Input Thresholds: > 7 V (dc) = “OFF” Input Current: 1.2 mA @ 0 V (dc) Contact Input: Referenced to battery negative...

  • Page 109: Software

    Manual 26112 ProAct Digital Plus Position Feedback Sensing Input: ~(1 to 4) V (dc) from Hall-Effect Sensor Circuit Output: ~(0.5 to 4.5) V (dc) to analog-to-digital converter Software Output: 0–75 degrees (1.31 radians) rotation (software assumes 75 degrees travel) Positioning Repeatability: <±1 % of full stroke at 25 °C after calibration...

  • Page 110: Figure 11-1. Transfer Function

    Transfer Function The ProAct transfer function is nominally a rate limit followed by three lags. The rate limit varies with actuator model, and the lags are scheduled with actuator Proact Digital Plus Transfer Function model and inertia (see table, below). (Tau1)s+1...

  • Page 111: Chapter 12. Product Support And Service Options

    A current list of Woodward Business Partners is available at www.woodward.com/directory. Product Service Options Depending on the type of product, the following options for servicing Woodward products may be available through your local Full-Service Distributor or the OEM or Packager of the equipment system.

  • Page 112: Returning Equipment For Repair

    To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715, Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules.

  • Page 113: Engineering Services

    Field Service engineering on-site support is available, depending on the product and location, from one of our Full-Service Distributors. The field engineers are experienced both on Woodward products as well as on much of the non- Woodward equipment with which our products interface.

  • Page 114: Technical Assistance

    Manual 26112 Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General...

  • Page 115: Appendix . Pro Act ™ Program Summary

    Manual 26112 ProAct Digital Plus Appendix. ProAct™ Program Summary ________________________________________________ APPLICATION ____________________________________ ACTUATOR SERIAL NUMBER For details on individual settings refer to chapter 9. Configure Mode Settings Service Mode Settings Unit Setup tab sheet Hardware Adjustments tab sheet Actuator Analog In...

  • Page 116: Service Tool Passwords

    ProAct Digital Plus Manual 26112 Service Tool Passwords Documentation of the Service Tool passwords is provided here to allow customers a single point of reference as well as a single page to remove for security, if desired. Mode Password Configure Mode...

  • Page 117: Revision History

    Manual 26112 ProAct Digital Plus Revision History Changes in Revision W—  Updated Regulatory Compliance information  New Declaration of Conformity & Declaration of Incorporation Changes in Revision V—  Revision advanced to coordinate with new installation sheet. Changes in Revision U—...

  • Page 118: Declarations

    ProAct Digital Plus Manual 26112 Declarations Woodward...
  • Page 119 Manual 26112 ProAct Digital Plus Woodward...
  • Page 120 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.

Table of Contents

Save PDF
