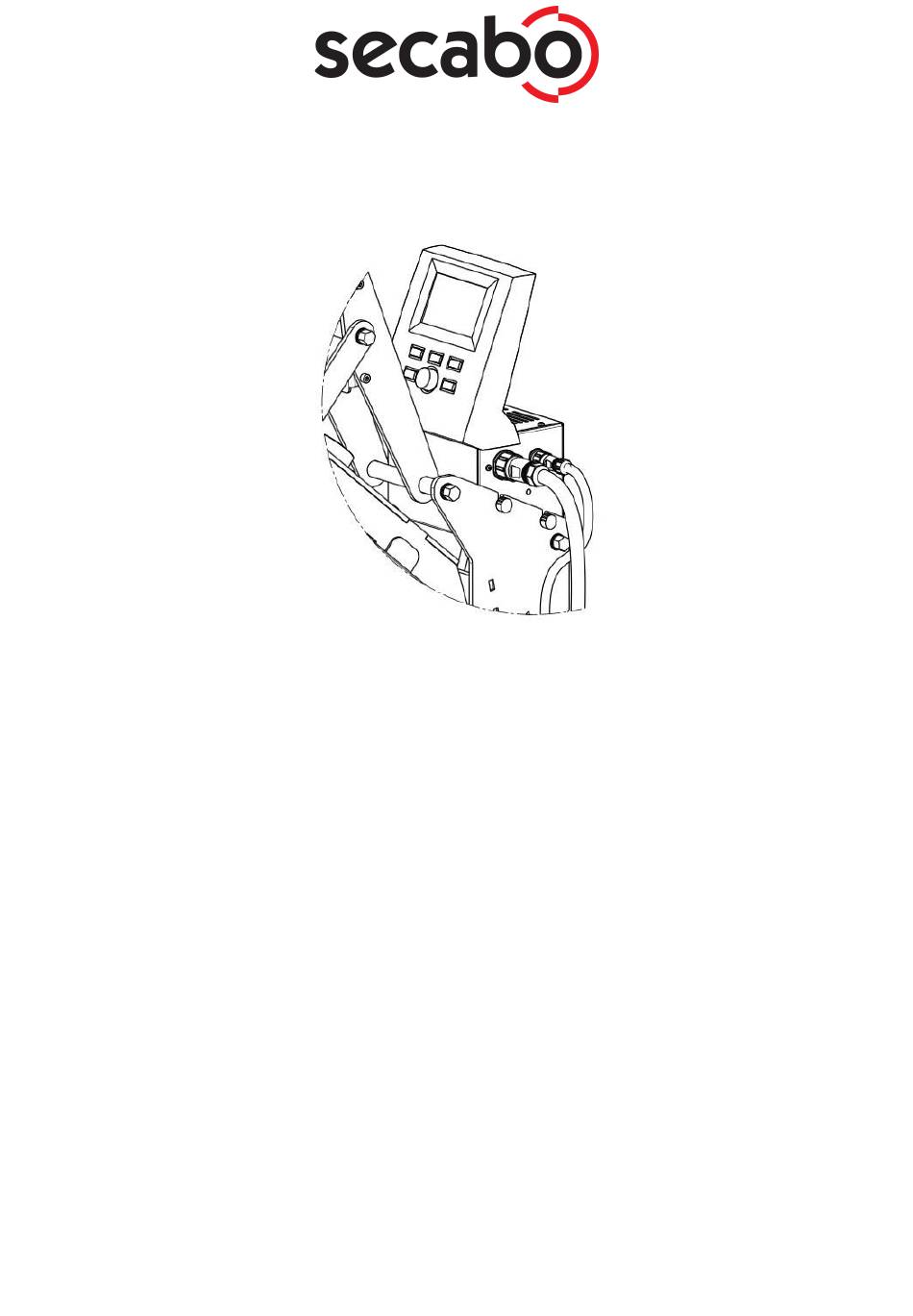

● Attach the large 5-pin plug from the surface of the heat plate to the appropriate socket on
the right outer side of the controller box.
● Plug the supplied C13 cold device cable into the back of the controller box and connect it to
a safety socket, which must be equipped with a grounded connection, protection via fuse
and ground fault circuit interrupter.
The TC5 SMART or TC7 SMART heat press is now ready for use.
Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com
7
