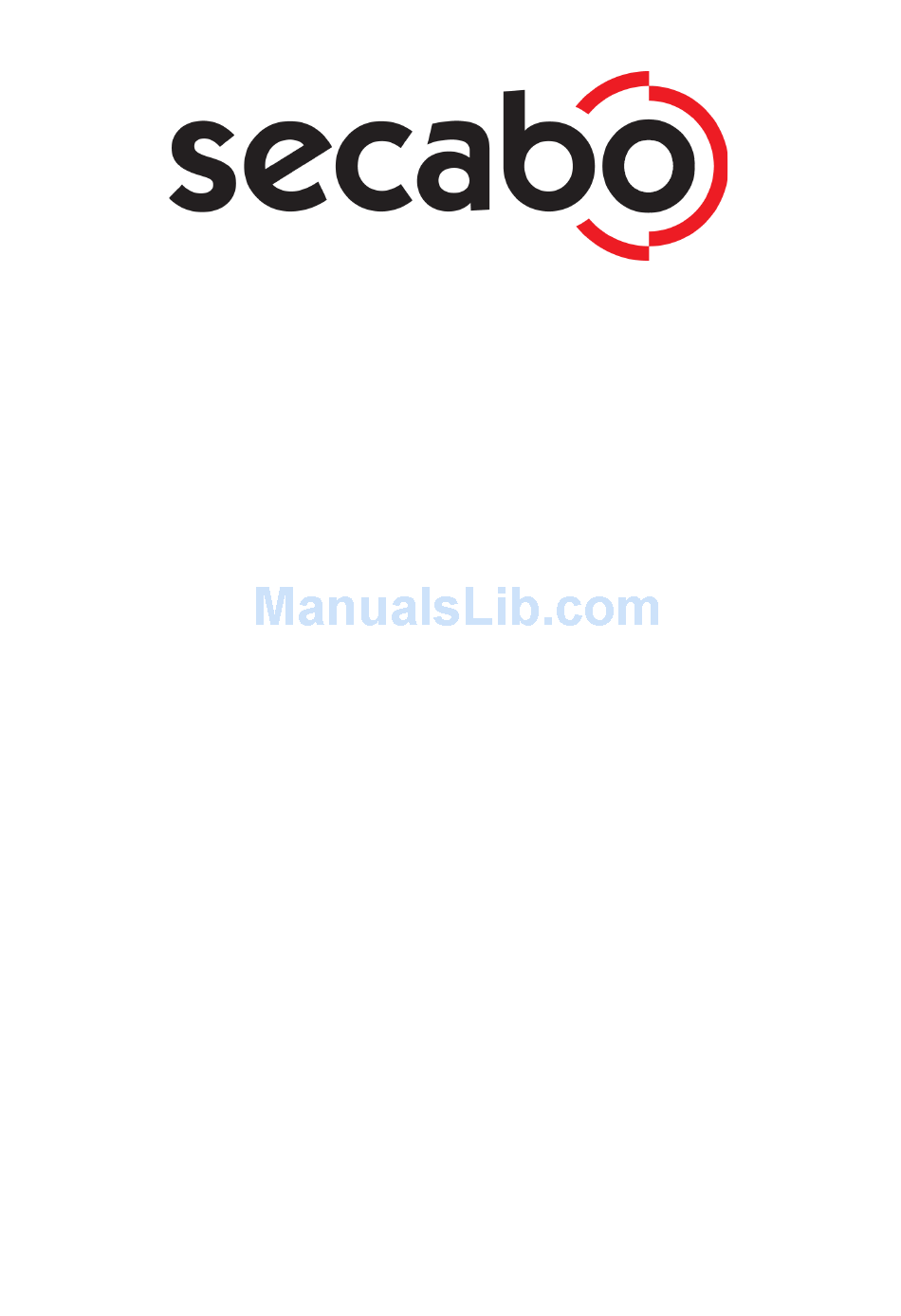

OPERATING INSTRUCTIONS
for the heat press
Secabo TS7
Congratulations on purchasing a Secabo heat press!
Please read these operating instructions carefully so you can start production with your press
without problems. Reproduction of these operating instructions in any form requires the written
approval of Secabo GmbH. We reserve all rights to change technical data and product features.
Secabo GmbH does not assume any liability for direct or indirect damage resulting from use of this
product.
Version 1.2 (22.06.2016)
Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Secabo TS7
Summary of Contents for Secabo TS7
- Page 1 OPERATING INSTRUCTIONS for the heat press Secabo TS7 Congratulations on purchasing a Secabo heat press! Please read these operating instructions carefully so you can start production with your press without problems. Reproduction of these operating instructions in any form requires the written approval of Secabo GmbH. We reserve all rights to change technical data and product features. Secabo GmbH does not assume any liability for direct or indirect damage resulting from use of this product. Version 1.2 (22.06.2016) Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com ...
-
Page 2: Brief Overview
Brief overview Secabo TS7 auto swingaway transfer press With its comfortable automatic swing away system, the new and improved Secabo TS7 transfer press provides a particularly large working space for easy alignment of the transfer objects. The large base plate with dimensions of 40cm x 50cm is placed in portrait orientation, which makes an exact positioning of elements and objects easier. The autoopen and autoswing function of the TS7 allows even more flexible and more comfortable working. The Secabo TS7 is suitable for all common heat transfer methods and can be used in almost any area of transfer technology. Short overview Secabo TS7 transfer press ● Auto open, auto swing heat press. ● Fast and simple time and temperature specification, comparison of target and performance values with digital display. ● Flexibly adjustable contact pressure hand wheel. ● Prepress function. ● CEcertificate, RoHScertificate, inspected according to German safety standards. Safety Precautions Please read these instructions and safety precautions carefully before using your press for the first time! ● Never reach into the heat press with your hands when it is connected to the power supply, particularly when it is switched on and heated up – danger of severe burns! ● Never open the housing or attempt to modify the machine yourself. ● In case you are requested by the Secabo customer support to open the heating plate cover, please make sure you are wearing respiratory protection and only touch the contained insulation wool with gloves. Any disposal of the wool must be contained in a closed bag. ● Ensure that liquids and metal objects do not get into the inside of the heat press. ● Ensure that the power socket used is grounded. Note that it is only permissible to operate a heat press from a power socket protected by a ground fault protection switch. ● Disconnect machine from power outlet when not in use! ... -
Page 3: Scope Of Delivery
Scope of Delivery Before starting work, please check whether the following items are all present: Article Quantity TS7 heat press 1 Instruction manual 1 Machine description In the very front, there is the rocker switch to turn the machine on and off, as well as the button for the prepressfunction. Above, the electro magnet and the press lever are located, as well as the combined time and temperature controller. On the back of the press you find the 230V cable and the fuse. On the left side the lever to block and release the auto swing away mode is located. Below the base plate you find the large wheel to adjust the pressure by elevating and lowering the base plate. Controller Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com ... -
Page 4: Operation
Operation Power supply ● Connect the heat press to a 230 V power socket using the connection cable supplied. ● Switch on the press with the red rocker switch. Operation and setting ● After a short selftest lines appear in the display. ● Press the OK button. ● Use “UP” or “DOWN” to set °C or °F and press OK. ● Use “UP” or “DOWN” to set the desired temperature and press OK. ● Use “UP” or “DOWN” to set the desired time and press OK. ● The press is heating up to the desired temperature. Operating transfers ● You can now make the first transfers. The timer starts running as soon as the press is closed with the press lever. ● 3 seconds before the set time elapses, a warning signal sounds. ● The contact pressure can be adjusted with a wheel below the base plate. Clockwise rotation causes less pressure counter clockwise rotation increases the pressure. ● The settings of the controller cannot be changed during pressing. ● Each time the pressing process is completed, the counter display increments by one after the set time has expired. ● You can reset the counter by pressing RESET for longer than 5 seconds. ● After the set time has expired, the TS7 opens and swings away automatically in case the Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com ... -
Page 5: Maintenance And Cleaning
150s 180s mugs Sublimation on tiles 200°C high 120s 480s (depending on thickness of material) Sublimation on jigsaw 200°C light medium 50s puzzles Sublimations 200°C medium 20s 40s mousepads Sublimation on textiles 200°C mediumhigh 30s 50s Sublimation on metal 200°C high 10s 50s (depending on thickness of plates material) Important note: You should carry out your own tests with the transfer material and backing to be used before starting production. The values given above and the manufacturer’s own figures are only intended as a guide. You should establish the washability and behaviour during transfer in your own tests. The recommended values do not imply a guarantee. The user is responsible for determining and Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com ... -
Page 6: Technical Data
Note for textile work: After pressing, allow textiles to cool down before removing any type of backing from the transfer material. The hot glue in the transfer material develops its adhesive force only in the cold state. If the adhesive does not stick in the cold state, it may have been pressed too cold or for a too short time. Technical data Heat press TS7 Type auto swing away heat press Working Area 40cm x 50cm portrait Max. temperature 225°C Max. time setting 999s Max. pressure 170g/cm² Pressure setting Height adjustment base plate Power supply 230V / 50Hz 60Hz, 1,8kW Environment +5°C +35°C / 30% 70% humidity Weight 90kg Dimensions (B x H x T) 50cm x 92cm x 80cm Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com ... - Page 7 Konformitätserklärung Statement of Conformity Hiermit erklären wir in alleiniger Verantwortung, dass das unter „Technische Daten“ genannte Produkt mit den Bestimmungen der folgenden EGRichtlinien und Normen übereinstimmt: We herewith declare under sole responsibility that the under „technical data“ mentioned product meet the provisions of the following EC Directives and Harmonized Standards: ● EGRichtlinien / EC Directives: ● 2006/95/EG Niederspannungsrichtlinie / 2006/95/EC Low Voltage Directive ● 98/37/EG Maschinenrichtlinie (2006/42/EG ab 29.12.2009) / 98/37/EC Directive on machinery (from 20091229: 2006/42/EC) ● Norm / Standard: EN 602041:2006 Technische Dokumente bei / Technical documents at: Secabo GmbH, Hochstatt 68, 85283 Wolnzach, Germany Dipl. Ing. Fabian Franke Dipl. Ing.(FH) Bernhard Schmidt Secabo GmbH Hochstatt 68 85283 Wolnzach Germany mail@secabo.com www.secabo.com ...
