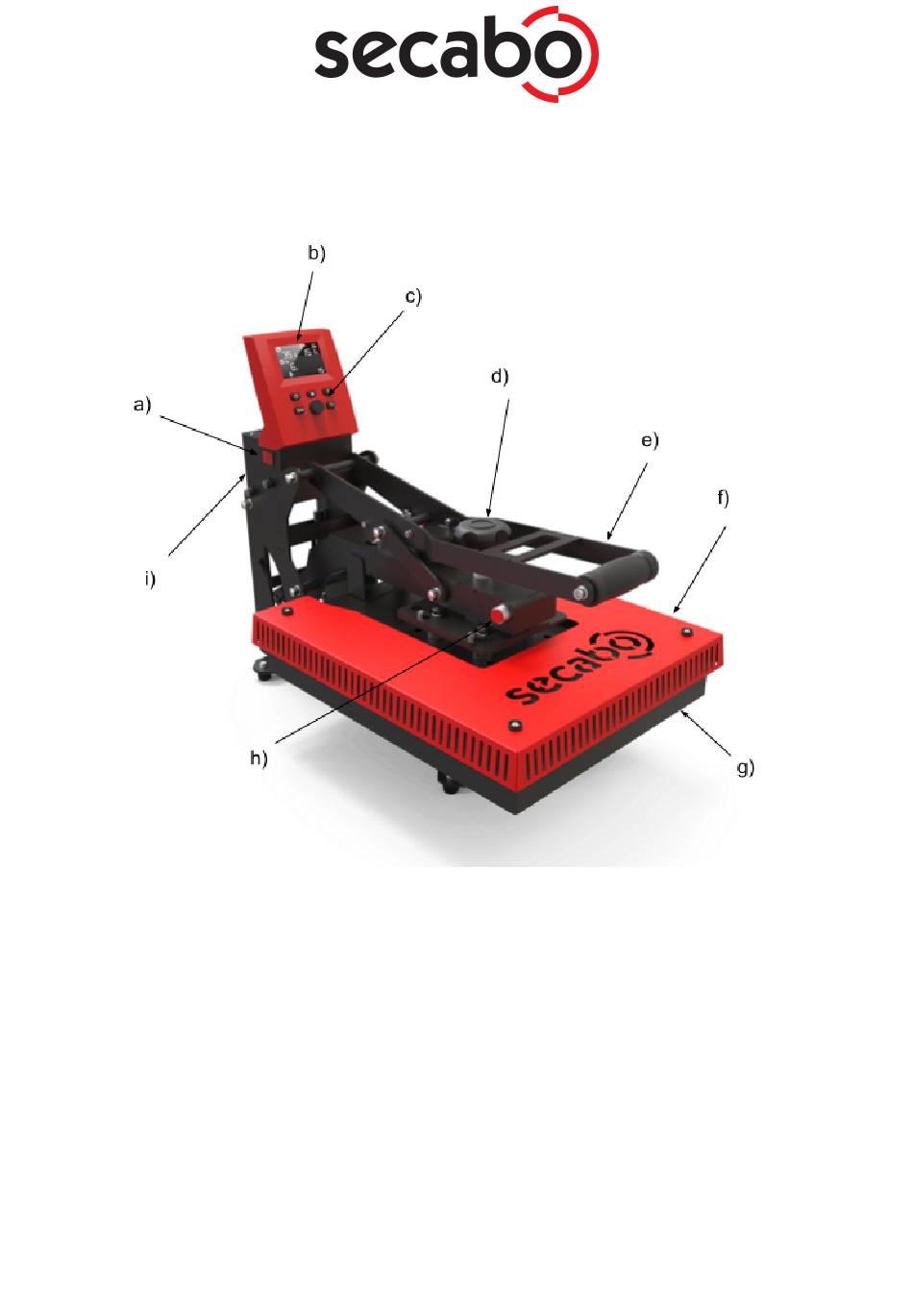

Machine description
a. Main switch
b. Liquid Crystal Display (LCD)
c. Control panel with buttons and rotary push setter
d. Hand wheel for pressure adjustment
e. Press lever
f.
Heat plate cover and heat plate
g. Base plate
h. Button for manually opening the press
i.
IEC socket and internal connections (not depicted)
Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com
4
