OPERATING MANUAL

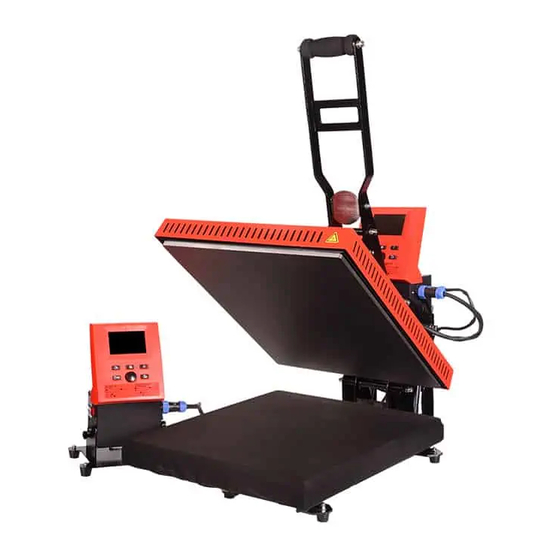

for the TB7 Thermobase
40cm x 50cm
Congratulations on purchasing your Secabo product!
Please read these operating instructions carefully so that you can start production smoothly with
your device.
Any form of reproduction of these operating instructions requires the written permission of Secabo
GmbH. Technical data and product features are subject to change without notice.
Secabo GmbH accepts no liability for any direct or indirect damage resulting from the use of this
product.
Version 1.0 (11.12.2019)
Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Secabo TB7

  • Page 1 Any form of reproduction of these operating instructions requires the written permission of Secabo GmbH. Technical data and product features are subject to change without notice. Secabo GmbH accepts no liability for any direct or indirect damage resulting from the use of this product.
  • Page 2: Short Overview

    ● Ensure that no liquids or metal objects get inside the TB7 and the controller. ● Ensure that the outlet used is earthed. Please note that the TB7 may only be operated at a socket which is protected by a residual current circuit breaker.
  • Page 3: Machine Description

    HP7 (not part of the delivery contents, just as an example) e. HPC01 (not part of the delivery contents, just as an example) Secabo TC Smart Base (not part of the delivery contents, just as an example) Technical data...
  • Page 4: Items Included

    Items included: Heating plate with silicone mat and coating Controller Box with table holder       C13 Cold device cable Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com...
  • Page 5 ● Alternatively, you can also mount the TB7 on the Secabo quick-change system or the Secabo Slide extension. ● Place the table holder for the controller box on a flat surface near the TB7 and mount the controller box in it.
  • Page 6 Controller components and operation Display components and their meaning Area for time setting and countdown when press is closed (irrelevant for the TB7, time is controlled by the heat press) Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com...
  • Page 7 Now select the desired unit for temperature - °C or °F - by turning the rotary control to the desired unit and confirm with pressing . This initial setup will no longer be displayed when the TB7 is switched on in the future. Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com...
  • Page 8 TARGET and CURRENT temperature (value outside of a range that allows for pressing). Setting the time (irrelevant for the TB7, time is controlled by the heat press) push briefly, symbol in the display flashes. Turning the rotary knob clockwise increases time, counter-clockwise decreases. Press the rotary knob or press...
  • Page 9 If no input occurs for 5 seconds, input mode ends automatically. Pressing will exit the input mode, the display will return to its original value. Configuring pre-pressing: (irrelevant for the TB7, time is controlled by the heat press) Briefly pressing activates pre-pressing for the following press operation using the preset time, and is deactivated again upon completing the press operation.
  • Page 10 The following eight menu items are available in the setting tier. 1. Auto Prepress (irrelevant for the TB7, time is controlled by the heat press) ○ Enable / Disable a permanent pre-pressing. 2. Bluetooth (for TB7 please deactivate/ do not use, connection via heat press) ○...
  • Page 11 8. Unit ○ Configuring the temperature unit. Celsius or Fahrenheit are possible. Resetting the counter: (irrelevant with TB7, time is controlled by the heat press) Press the button for 2s, display flashes briefly, values are set to 0. Second setting tier for operational key figures and service Press and hold the Settings button to enter the second tier of the settings.
  • Page 12: Maintenance And Cleaning

    The supplied coating is heat resistant up to 220°C and protects the base plate from discoloration and damage. The cover can be removed from the TB7 and cleaned in the washing machine. After drying it can be put on again and is ready for use. If it is closed, it must be replaced.
  • Page 13: Recommended Times And Temperatures

    If the glue does not stick in its cold state, this may indicate that the pressing procedure was too cold or too short. Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com...
  • Page 14 ● 98/37/EC Directive on machinery (from 2009-12-29: 2006/42/EC) ● Norm / Standard: EN 60204- 1:2006 Technische Dokumente bei / Technical documents at: Secabo GmbH, Hochstatt 6- 8, 85283 Wolnzach, Germany Dipl. Ing. Fabian Franke Dipl. Ing.(FH) Bernhard Schmidt Secabo GmbH Hochstatt 6-8 85283 Wolnzach Germany mail@secabo.com www.secabo.com...
