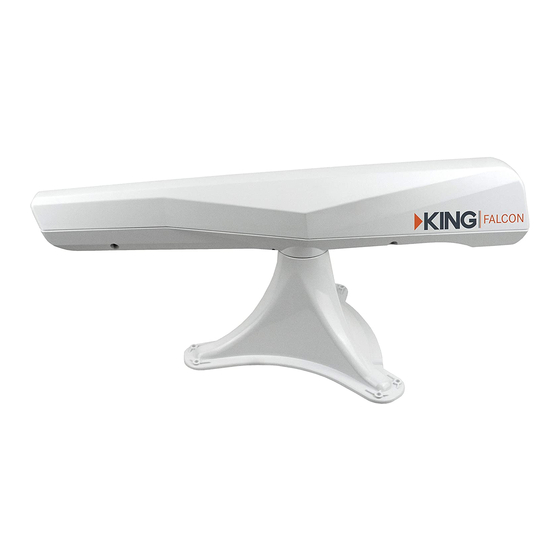

KING Falcon KF1000 Installation And Operating Instructions Manual

Automatic directional wi-fi antenna with wifimax router
Hide thumbs

Advertisement

Quick Links

Automatic Directional Wi-Fi Antenna
Installation and Operating Instructions
OPERATION ....................................................................................... 1-20
INSTALLATION ................................................................................ 22-29
TROUBLESHOOTING ........................................................................... 30
SPECIFICATIONS ................................................................................. 31
LIMITED WARRANTY ........................................................................... 32
WIRELESS REGULATORY INFORMATION ......................................... 33
NOTE: Please read thru this manual before using or installing.
includes the KING
WiFiMax Router
KWM1000
CONTENTS
You will need to download the free KING Wi-Fi app to
use this product (see page 1).
KF1000 • White
KF1001 • Black

Advertisement

loading
Need help?

Need help?

Do you have a question about the Falcon KF1000 and is the answer not in the manual?

Questions and answers

Maria
April 22, 2025

Does the king falcon antenna have a reset button? I forgot the 4 digit password when I go on it on the app to connect to it so I’m trying to find a way to reset the antenna

0

Related Manuals for KING Falcon KF1000

Summary of Contents for KING Falcon KF1000

  • Page 1: Table Of Contents

    TROUBLESHOOTING ................30 SPECIFICATIONS ................. 31 LIMITED WARRANTY ................32 WIRELESS REGULATORY INFORMATION ......... 33 NOTE: Please read thru this manual before using or installing. You will need to download the free KING Wi-Fi app to use this product (see page 1).
  • Page 2 Record your serial number.

  • Page 3: Operation

    The KING Falcon will not locate Wi-Fi signals while the vehicle is in motion. You must leave the power inserter and KING WiFiMax connected and plugged in while using your Wi-Fi. Any time you move your vehicle, you will have to scan for a network again.
  • Page 4 FIRST-TIME USE 1. SET UP KING WIFIMAX NOTE: Make sure your KING WiFiMax and power injector are connected and powered on as shown on page one (blue lights on both devices will turn on when power is connected). To maintain the best connection to your KING WiFiMax, it is suggested that the cellular network on your smart phone or tablet be turned off while completing the first-time setup.
  • Page 5 2. Open the KING Wi-Fi app and tap “Get Started.” Get Started Back KC1131 Let’s Get Started WiFiMax Setup Antenna Pairing to Device Scanning, Selecting, Locating Networks 3. Tap “Continue” to begin your Continue KING WiFiMax setup. Back KC1132 Please configure your WiFi Max’s network name.
  • Page 6 Use your phone or tablet's zoom functionality to change the view of your screen. 5. This screen should appear. Tap “WiFi Settings” in the left-hand column. Internet Status English Exit 2.4 GHz: King_XXXXXX Internet Status 5 GHz: King_XXXXXX_5G Internet Settings WiFi Settings Parental Control Online: 1...
  • Page 7 Passwords can be the same for both networks if you wish, and must be at least 8 characters. When you have entered names and passwords for both networks, tap “Save.” Tap the “X” to exit the KING WiFiMax setup screen. WiFi Settings English Exit WiFi Name &...
  • Page 8 2. CONNECT TO THE KING WIFIMAX WITH YOUR PERSONALIZED NETWORK NAME 1. Once you have configured your KING WiFiMax network names Back in the previous step, this pop up will appear. STOP STOP Do not click on “OK.” Instead, exit the app.
  • Page 9 When the next screen appears, tap the “X” in the upper left hand corner. KC1121 Back Let’s Get Started The KING WiFi app will confirm your KING WiFiMax setup and that the connection was successful. WiFiMax Setup (Check mark turns green.) Antenna Paired Scanning, Selecting, Locating Networks 4.
  • Page 10 3. PAIR YOUR KING FALCON ANTENNA Back Tap below to pair you KING Falcon 1. A list of available KING Falcon antennas to connect to will appear. KSA02541 Identify your antenna and tap to select it. If more than one antenna appears in the list:...
  • Page 11 KC1120 KC1136 Only one smart phone or tablet can be paired with your KING Falcon antenna at a time. In the event you need to switch control of the KING Falcon antenna to a different device, and don’t have the PIN, a PIN reset may be required.
  • Page 12 WPA/WPA2-PSK Encryption Mode: Enter password here WiFi Password: KC1097 Fun Lake Campground Rescan Antenna Paired Available Networks 2. The KING Falcon will locate your selected network and confirm success. Fun Lake Campground Found 3. Tap "Continue." Continue KC1138 Page 10...
  • Page 13 Antenna Paired Network Found Setup KING WiFiMax To begin WiFi experience you must configure your KING WiFiMax. KING WiFiMax Setup is located in the 1. Almost there! Tap "Continue.” menu at the top left corner of the page. Menu Tab About...
  • Page 14 4. This screen should appear. Tap “WiFi Settings” in the left-hand column. Internet Status English Exit 2.4 GHz: MyWiFiName Internet Status 5 GHz: MyWiFiName_5G Internet Settings WiFi Settings Parental Control Online: 1 Repeating failed. Advanced Settings WiFi Extender System Settings Upstream Router My Router V15.03.05.16_multi...
  • Page 15 6. This screen should appear. The router is scanning for networks. WiFi Settings English Exit Wireless Repeating Internet Status Internet Settings Wireless Repeating: WiFi Settings WiFi Name & Password Wireless Repeating Channel & Bandwidth Transmit Power Enable Repeating Mode: Enable WISP Client+AP Channel/Bandwidth...
  • Page 16 8. Select the same upstream network as the one you pointed the KING Falcon at (page 10, step 1). Example: --Select-- Back --Select-- --Enter WiFi name manually-- Filter - Select a Network Fun Lake Campground Fun Lake Campground Dad’s Campground Dad’s Campground...
  • Page 17 This page intentionally left blank. Page 15...
  • Page 18 5. Dad’s Campground Chat Cafe Campit Here KC1075 2. Open the KING Wi-Fi app and follow the instructions to either: Start a rescan with the KING Falcon (for example you have moved and wish to scan for new networks) KingGuest...
  • Page 19 WiFi Password: Enter password here KC1097 4. Follow the app instructions to locate the “KING WiFiMax Setup” screen (see page 11 if you don’t remember how to do this). Tap on “KING WiFiMax Setup.” 5. This screen should appear. Tap “WiFi Settings” in the left-hand column.
  • Page 20 6. This screen should appear. Tap “Wireless Repeating.” WiFi Settings English Exit Internet Status Internet Settings WiFi Settings WiFi Name & Password Wireless Repeating Channel & Bandwidth Transmit Power Enable Enable Channel/Bandwidth 2.4 GHz High/5 GHz High Parental Control Advanced Settings Beamforming+ AP Mode Anti-interference...
  • Page 21 This screen should appear. The router is scanning for networks. WiFi Settings English Exit Wireless Repeating Internet Status Internet Settings Wireless Repeating: WiFi Settings WiFi Name & Password Wireless Repeating Channel & Bandwidth Transmit Power Enable Repeating Mode: Enable WISP Client+AP Channel/Bandwidth 2.4 GHz High/5 GHz High...

  • Page 22: Operation

    9. Select the same network as the one you pointed the KING Falcon at (page 17, step 3). Example: --Select-- Back --Select-- --Enter WiFi name manually-- Filter - Select a Network Fun Lake Campground Fun Lake Campground Dad’s Campground Dad’s Campground...
  • Page 23 This page intentionally left blank. Page 21...

  • Page 24: Installation

    • Do not locate interior components in a slide-out. • Ensure supplied cables reach between components when placed in their installation locations. • Ensure power inserter and KING WiFiMax router are located where their power supplies can be plugged into a 110 VAC outlet.
  • Page 25 EXTERIOR INSTALLATION OPTION 1: Concealed Cable (pages 24-25) Coax enters vehicle directly under base mount. INSTALLATION OPTION 2: External Cable (pages 26-27) Coax exits base mount in rear, is routed along roof, and enters vehicle outside of base mount perimeter. INTERIOR Connections are the same regardless of where coax enters vehicle (pages 28-29)
  • Page 26 INSTALLATION OPTION 1: Concealed Cable IMPORTANT! The installer is responsible for determining and supplying the most appropriate fasteners to secure the base mount to the roof. All holes, fastener heads, and the entire perimeter of the base mount (including coax port) must be completely sealed and weatherproofed with roof-compatible sealant.
  • Page 27 INSTALLATION OPTION 1: Concealed Cable FIG. 1 FIG. 2 DO NOT TOUCH CIRCUIT BOARD! FIG. 3 SEE PAGE 28 Page 25...
  • Page 28 INSTALLATION OPTION 2: External Cable IMPORTANT! The installer is responsible for determining and supplying the most appropriate fasteners to secure the base mount and coax to the roof. All holes, fastener heads, and the entire perimeter of the base mount (including coax port) must be completely sealed and weatherproofed with roof-compatible sealant.
  • Page 29 INSTALLATION OPTION 2: External Cable FIG. 2 FIG. 1 DO NOT TOUCH CIRCUIT BOARD! SEE PAGE 28 FIG. 3 Page 27...
  • Page 30 2. Rotate 3 antennas into upright position (antennas must be vertical whether the KING WiFiMax is placed on a flat surface or wall mounted). 3. Plug in power inserter and KING WiFiMax. NOTE: You can wall mount the KING WiFiMax using the keyhole slots in the back. Always orient the antennas vertically. Page 28...
  • Page 31 INTERIOR CONNECTIONS Page 29...

  • Page 32: Troubleshooting

    If a network is very far away or very weak, the KING WiFiMax may not be able to see it, or may not offer it as an option. Try scanning again for networks by clicking on the blue circular arrows. If your network is still not offered as an option, try moving your KING WiFiMax to a location closer to your desired network.

  • Page 33: Specifications

    Included 12v power supply, requiring 110V AC plug-in Wireless standards: IEEE802.11a/b/g/n/ac Supported Frequencies: 2.4GHz and 5GHz (dual-band) Security: WPA/WPA2-PSK Storage Environment: Temperature -40ºF to 158ºF IMPORTANT! Do not power wash any part of the KING Falcon antenna head or base mount. Page 31...

  • Page 34: Limited Warranty

    OEM manufacturer and 2) the dealer/installer receives prior authorization to perform the repair. A certified dealer must not perform any repair without first contacting KING for a Service Order Number. KING will advise the dealer on how to proceed with any repairs.

  • Page 35: Wireless Regulatory Information

    WIRELESS REGULATORY INFORMATION FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 36 Simply better, by design. ™ 11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com © 2018 KING 22872 Rev B All trademarks are the sole property of their respective owners.
