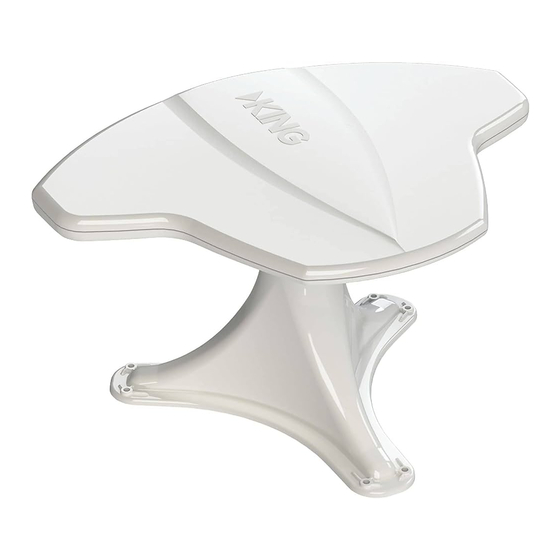

KING JACK OA8500 Owner's Manual

Low profile digital hdtv over-the-air antenna with built-in surelock digital tv signal meter, white/black, roof thickness: 1" to 4-1/2" / 8" when installed with extension 21850

Hide thumbs

page of 8

/ 8
Bookmarks

Quick Links

Download this manual

Dimensions:

8.7" H x 16" W x 12.5" L

Weight:

2.62 lbs.

Power Requirement: 12 VDC / 100 mA

(supplied by KING Wall Mount Power Injector)

and

......................................................................................... 6

Please read thru the installation instructions before beginning.

See page 2 for items supplied by the installer.

See page 5 for information on the MB8200 Mounting Plate

™

Owner's Manual

OA8500 • White

OA8501 • Black

.........................................................

..................................................

....................................................... 3

.......................................................... 4

..................................................................

Frequency Bands:

Signal Meter Frequency Response: 54-698 MHz (Ch 2-51)

Enclosure/Mount:

VHF (54-216 MHz)

UHF (470-698 MHz)

FM (87.9-107.9 MHz)

ASA-Automotive grade

Need help?

Do you have a question about the JACK OA8500 and is the answer not in the manual?

Questions and answers

Summary of Contents for KING JACK OA8500

Page 1 8.7” H x 16” W x 12.5” L Frequency Bands: VHF (54-216 MHz) UHF (470-698 MHz) Weight: 2.62 lbs. FM (87.9-107.9 MHz) Power Requirement: 12 VDC / 100 mA Signal Meter Frequency Response: 54-698 MHz (Ch 2-51) (supplied by KING Wall Mount Power Injector) Enclosure/Mount: ASA-Automotive grade...
Page 2 1. Turn on TV and power injector (see above). 2. Turn on KING SureLock Signal Meter with switch on side of enclosure. 3. Press button and turn knob to rotate antenna in one direction until it hits the stop. 4. Rotate attenuator dial fully clockwise.
Page 3 • Remove the existing adjustable connector from the upper connector located in the base mount. as shown at right and engage the extension onto the upper connector. • Leave extension sticking out of base mount more than the thickness of the roof. Page 2...
Page 4 1. Select an area on the roof for the base mount keeping in mind the following 2. Drill a 2-1/4” hole all the way thru the vehicle roof where the adjustable connector will go. 3. Carefully pull out the adjustable connector so it will extend beyond the thickness of the roof when the base mount is installed. It must extend thru the roof to allow installation of interior components.
Page 5 Fasten knob to connector with screw. 4. Route the coax around the raised ring as shown and connect the coax to the RF connector on the KING SureLock signal meter. 5. Optional: If desired, apply the decal to the enclosure cover.
Page 6 • Can be mounted in most standard electrical boxes. • Requires a +12 Volt DC power source. (Inadequate voltage may cause the green LED to not illuminate and the unit to not function properly. • Requires .25” female spade connectors for power and ground connections. •...
Page 7 If it is determined that the unit needs to be returned to KING, customer must return COMPLETE product, freight prepaid, to: If inspection shows the trouble is caused by defective workmanship or material, KING will repair (or at its option, replace) without charge.
Page 8 ™ Simply better, by design. 11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com © 2018 KING 22600 Rev B...
