KING WiFiMax KWM1000 Manual

Hide thumbs Also See for WiFiMax KWM1000:

Advertisement

Table of Contents

Wi-Fi Extender KWM1000
(included with KS1000)

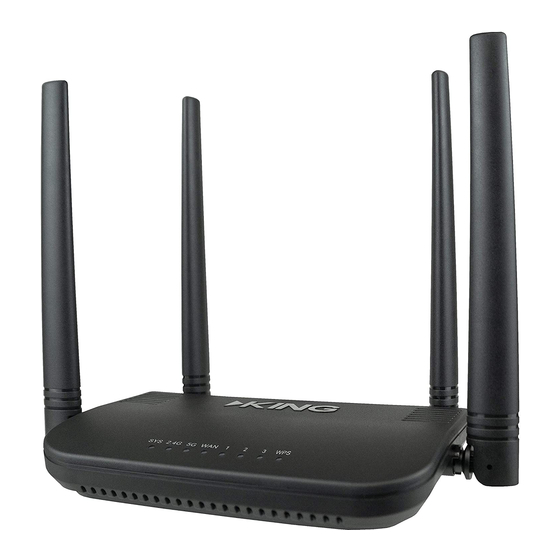

The KING WiFiMax creates your own private and secure Wi-Fi
network, just like you have in your home. When in range of an
network, and it will extend the internet access from that network to
your own private Wi-Fi network.
Omnidirectional Wi-Fi Antenna KS1000
(not included with KWM1000)
The KING Swift is an omnidirectional Wi-Fi antenna
that increases the range and performance of your
KING WiFiMax router and range extender. This
2.4GHz Wi-Fi antenna mounts to your roof, connects
to your KING WiFiMax via a single cable, and allows
your KING WiFiMax to connect to networks from
even farther away and still utilize its 5GHz network for
fastest speeds.
CONTENTS ................................................................................................. 2
CONNECTIONS .......................................................................................... 3
FIRST-TIME USE ..................................................................................... 4-7
STANDARD OPERATION ..................................................................... 8-11
INSTALLATION ................................................................................... 12-13
TROUBLESHOOTING .............................................................................. 14
SPECIFICATIONS .................................................................................... 15
LIMITED WARRANTY ......................................................................... 16-17
WIRELESS REGULATORY INFORMATION ....................................... 18-19
SWIFT
CONTENTS
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiFiMax KWM1000 and is the answer not in the manual?

Questions and answers

Paul Mincey
May 18, 2025

RESET PASSWORD

0

Subscribe to Our Youtube Channel

Related Manuals for KING WiFiMax KWM1000

Summary of Contents for KING WiFiMax KWM1000

  • Page 1: Table Of Contents

    Wi-Fi Extender KWM1000 (included with KS1000) The KING WiFiMax creates your own private and secure Wi-Fi network, just like you have in your home. When in range of an network, and it will extend the internet access from that network to your own private Wi-Fi network.

  • Page 2: Contents

    Dipole Antenna Manual Power Supply NOTE: No tools are required to set up and use the KING WiFiMax (unless wall mounting the unit). There are key hole slots on the back to mount the unit to a wall. The user must determine where and how to best mount the unit to a wall (inside use only).

  • Page 3: Connections

    CONNECTIONS Place your KING WiFiMax on a stable surface (or wall mount). Make connections as shown. (Blue lights on KING WiFiMax will turn on when power is connected.) Attach included dipole antenna or cable from KING Swift to open port.

  • Page 4: First-Time Use

    FIRST-TIME USE NOTE: When using a smart phone or tablet: to maintain the best connection to your KING WiFiMax, it is suggested that the smart phone or tablet’s 1. Go to your smart phone, tablet or computer’s Wi-Fi settings page and...
  • Page 5 2. Open your device’s web browser. Type exactly as written. Go to: Tap “WiFi Settings” in the left-hand column. 3. Tap “WiFi Name & Password.” Page 5...
  • Page 6 2.4GHz network name. Enter a password. KING highly recommends password protecting your name. Choose WPA/WPA2-PSK under “Encryption Mode” to enable password protection. Passwords can be the same for both networks if you wish, and must be at least 8 characters.
  • Page 7 2.4GHZ Write your network name here: Write your password here: 5GHZ Write your network name here: Write your password here: 5. When you have entered names and passwords for both networks, tap “Save.” If the “Save” button does not appear, scroll You have personalized your router setup.

  • Page 8: Standard Operation

    STANDARD OPERATION When using a smart phone or tablet: to maintain the best connection to your KING WiFiMax, it is suggested that the smart phone or during standard operation. 1. Go to your phone, tablet or computer’s settings page and connect to the Wi-Fi Network with your personalized network name (you created this on page 6).
  • Page 9 3. Tap “Wireless Repeating.” 4. Tap the blue arrows to scan for networks. Page 9...
  • Page 10 The router is scanning for networks. 5. After the scanning process is complete, this screen will appear. Tap on “Upstream WiFi Name” drop down menu to display a list of available networks. If the upstream network you are looking for does not appear in this list, scroll up and down Page 10...
  • Page 11 Wi-Fi network with your personalized network name, as you may lose connection during the router’s rebooting process. Your KING WiFiMax is now extending your network! standard operation, it is now safe to turn it back on. Page 11...

  • Page 12: Installation

    • When determining locations, make sure the long cable will reach the KING WiFiMax when attached to the KING Swift cable. (KING Swift cable may go directly to prewire enclosure - see opposite page). • Do not locate the KING WiFiMax or KING Swift in a slide-out.
  • Page 13 IMPORTANT! The installer is responsible for determining and All holes, fastener heads, and the entire perimeter weatherproofed with sealant. Page 13...

  • Page 14: Troubleshooting

    I don’t see the Upstream WiFi name I want to extend in my list of networks. If a network is very far away or very weak, the KING WiFiMax may not be able to see KING WiFiMax to a location closer to your desired network.

  • Page 15: Specifications

    SPECIFICATIONS KING WiFiMax Power: Included 12v power supply, requiring 110V AC plug-in Wireless standards: IEEE802.11a/b/g/n/ac Supported Frequencies: 2.4GHz and 5GHz (dual-band) Security: WPA/WPA2-PSK Storage Environment: Temperature -40ºF to 158ºF KING Swift Radio Frequency Band: 2.4GHz Wireless Standards: IEEE802.11a/b/g/n Antenna: 3dBi roof-mounted omnidirectional antenna Height: 9.5”...

  • Page 16: Limited Warranty

    30 days after date of manufacture. If it is determined that the unit needs to be returned to KING, customer must return COMPLETE product, freight prepaid, to: KING, 11200 Hampshire Avenue South, Bloomington, MN 55438-2453.
  • Page 17 This warranty also does not apply where: • The product has been abused, misused, improperly installed or improperly maintained. • The product has been used with an accessory other than a KING accessory designed for the product. such repairs. • Repairs are required because of normal wear and tear.

  • Page 18: Wireless Regulatory Information

    WIRELESS REGULATORY INFORMATION FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 19 CAN ICES-3 (B)/NMB-3(B) L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; et (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
  • Page 20 ™ Simply better, by design. 11200 Hampshire Avenue South, Bloomington, MN 55438 PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com ©2020 KING 23180 Rev D All trademarks are the sole property of their respective owners.
