- Page 1 Installation Guide for PrimeSHOT 20 HDMI PTZ Camera Document 411-0022-31 Rev B July 2018...
-
Page 2: Table Of Contents
Contents Overview What's in this Guide Features Unpacking the Camera A Quick Look at the Camera Front of the Camera Back of the Camera Video Resolution Setting Installation Before You Install the Camera Don’t Void Your Warranty! Cabling Notes Installing the Thin Profile Wall Mount About Ceiling-Mounted Cameras Basic Connection Diagram RS-232 Serial Communication... -
Page 3: Overview
PrimeSHOT 20 HDMI (black) with HDMI Extenders, Europe and UK – 999-30420-301 PrimeSHOT 20 HDMI (white) with HDMI Extenders, Europe and UK – 999-30420-301W PrimeSHOT 20 HDMI (black) with HDMI Extenders, Australia and New Zealand – 999-30420-309 PrimeSHOT 20 HDMI (white) with HDMI Extenders, Australia and New Zealand – 999-30420-309W... -
Page 4: Unpacking The Camera
12 VDC, 3.0 Amp power supply with AC cord set(s) EZCamera RS-232 control adapter Quick-Start Guide 999-30420-300 – PrimeSHOT 20 HDMI (black) with HDMI Extender, North America 999-30420-300W – PrimeSHOT 20 HDMI (white) with HDMI Extender, North America 999-30420-301 – PrimeSHOT 20 HDMI (black) with HDMI Extender, Europe and UK 999-30420-301W –... -
Page 5: A Quick Look At The Camera

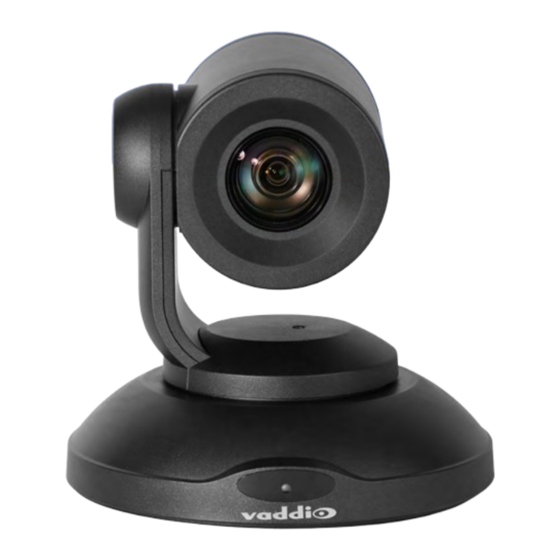

This section covers the physical features of the camera. Front of the Camera Camera and Zoom Lens: The PrimeSHOT 20 HDMI camera features a 20x optical zoom lens. IR sensor: Receives signals from the IR remote. Make sure there's nothing directly in front of the camera base, and point the remote at the camera. -
Page 6: Back Of The Camera
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera Back of the Camera From left to right: Power connector – Connect the 12 VDC, 3 A power supply shipped with the camera. Rotary switch – Select the video output resolution. -
Page 7: Installation
Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of these things happen, return it to Vaddio for safety and functional testing. Cabling Notes Note Use standard RJ-45 connectors and a good crimping tool. -
Page 8: Installing The Thin Profile Wall Mount
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera Installing the Thin Profile Wall Mount The PrimeSHOT 20 HDMI camera is shipped with a Thin Profile Wall Mount. Other mounting options are available as well. Contact us if you don’t have the camera mount you need. -
Page 9: Rs-232 Serial Communication
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera RS-232 Serial Communication The RS-232 serial port (RJ-45, color-coded blue) on the camera's back panel enables third-party control. Parameter Value Communication Speed 9600 bps (default) Number of start bits Number of stop bits... -
Page 10: Installing The Camera
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera Installing the Camera Caution Before you start, be sure you can identify all cables correctly. Connecting a cable to the wrong port can result in equipment damage. Caution: Check Cat-5 cables for continuity before using them. Using the wrong pin-out may damage the camera system and void the warranty. -
Page 11: Powering Up The Camera
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera Powering Up the Camera Connect camera power. The camera will initialize and move. This will take a few seconds. When an image is available, the camera is ready to accept control information. -
Page 12: Next Steps
The camera is now ready to configure and use. This information is available in the Configuration and Administration Guide for the PrimeSHOT 20 HDMI PTZ Camera. It is also included in the Complete Manual for the PrimeSHOT 20 HDMI PTZ Camera. -
Page 13: Compliance Statements And Declarations Of Conformity
(2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 14: European Compliance
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 15: Warranty Information
Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or... -
Page 16: Photo Credits
Installation Guide for the PrimeSHOT 20 HDMI PTZ Camera Photo Credits This guide may include some or all of these photos. European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats-... -
Page 17: Index
precautions 5 for operating the system 5 Index product capabilities 1 product returns and repairs 13 anatomy of the camera 3 regulatory information 11 requirements 5 installation 5 cable connectors 5 mounting 5 camera mount 5-6, 8 resolution 4 installing 6 switch setting 4 camera placement 5 RJ-45 connectors 5... - Page 18 Vaddio and PrimeSHOT are trademarks or registered trademarks of Milestone AV Technologies. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo, are trademarkes or registered trademarks of HDMI Licensing LLC in the United States and other countries. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
