- Page 1 Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Including RoboSHOT 12 HDMI, RoboSHOT 30 HDMI, RoboSHOT 12E HDMI, and RoboSHOT 30E HDMI Document 411-0026-31 Rev B April 2019...
-
Page 2: Table Of Contents
Contents Overview What's in this Guide Camera Features Unpacking the Camera A Quick Look at the Camera Front of the Camera Back of the Camera – RoboSHOT 12E HDMI and RoboSHOT 30E HDMI Back of the Camera – RoboSHOT 12 HDMI and RoboSHOT 30 HDMI Installing the Camera Don’t Void Your Warranty! Before You Start... -
Page 3: Overview
Instructions for installing the camera mount Information on connecting and mounting the camera Camera power-on Complete product information is available in the Complete Manual for RoboSHOT HDMI High- Definition PTZ Cameras. Download manuals, dimensional drawings, and other information from www.vaddio.com/support. -
Page 4: Camera Features
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Camera Features Cost-effective professional HDMI camera Full HD (native 1080p/60) resolution RoboSHOT 12E and 30E HDMI only: simultaneous HDMI and H.264 IP streaming (RTSP or RTMP) ® RoboSHOT 12 HDMI and RoboSHOT 30 HDMI: Exmor 1/2.8 type image sensor RoboSHOT 12E HDMI and RoboSHOT 30E HDMI: Exmor R™... -
Page 5: Unpacking The Camera
Thin Profile Wall Mount with mounting hardware, black or white, depending on camera color Vaddio IR Remote Commander Quick-start guide Note If you need an EZCamera RS-232 Control Adapter for use with this camera, please contact Vaddio Technical Support to obtain one. - Page 6 Thin Profile Wall Mount with mounting hardware, black or white, depending on camera color Vaddio IR Remote Commander Quick-Start Guide Note If you need an EZCamera RS-232 Control Adapter for use with this camera, please contact Vaddio Technical Support to obtain one.
- Page 7 RoboSHOT 30 HDMI Camera 12 VDC, 3.0 A switching power supply with AC cord set(s) Thin Profile Wall Mount with mounting hardware, black or white, depending on camera color Vaddio IR Remote Commander EZCamera RS-232 Control Adapter (998-1001-232) Quick-Start Guide RoboSHOT 12E HDMI for Cisco Codecs, North America –...
- Page 8 RoboSHOT 12 HDMI camera, black 12 VDC, 3.0 A switching power supply with AC cord set(s) Thin Profile Wall Mount with mounting hardware, black Vaddio IR Remote Commander EZCamera RS-232 Control Adapter (998-1001-232) EZCamera RS-232 Control Adapter for Cisco Codec (998-1002-232) 10.25 in.
- Page 9 Thin Profile Wall Mount with mounting hardware, black Vaddio IR Remote Commander EZCamera RS-232 Control Adapter (998-1001-232) 2 ft. (0.6 m) Fan-out Cable for Polycom, Codec Side Quick-start guide Application note Download manuals, dimensional drawings, and other information from www.vaddio.com/support.
-
Page 10: A Quick Look At The Camera

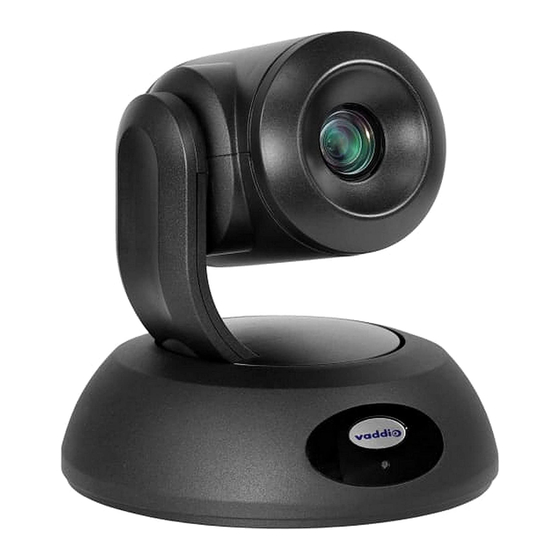

Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras A Quick Look at the Camera The cameras in the RoboSHOT line are similar in appearance. RoboSHOT 12 HDMI is silver, with a black base and stepped lens bezel RoboSHOT 30 HDMI is available in black or white, and has a fluted lens bezel RoboSHOT 12E HDMI and RoboSHOT 30E HDMI are available in black or white, and have smooth lens bezels The image below shows a RoboSHOT 30 HDMI camera. -
Page 11: Back Of The Camera - Roboshot 12E Hdmi And Roboshot 30E Hdmi
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Back of the Camera – RoboSHOT 12E HDMI and RoboSHOT 30E HDMI Rear panel connectors are identical for the older RoboSHOT 12E HDMI and RoboSHOT 30E HDMI cameras. From left to right: Network PoE+: RJ-45 connector. -
Page 12: Back Of The Camera - Roboshot 12 Hdmi And Roboshot 30 Hdmi
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Back of the Camera – RoboSHOT 12 HDMI and RoboSHOT 30 HDMI Rear panel connectors are identical for the older RoboSHOT 12 HDMI and RoboSHOT 30 HDMI cameras. From left to right: Network: RJ-45 connector. -
Page 13: Installing The Camera
Do not install or operate this product if it has been dropped, damaged, or exposed to liquids. If any of these things happen, return it to Vaddio for safety and functional testing. Caution If using a DC power supply with this product, use the power supply included with it or recommended for use with it. -
Page 14: Installing The Wall Mount
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Prepare for a successful installation: Be sure you can identify all cables correctly. Check Cat-5 cables for continuity. Ensure that the video resolution rotary switch and the DIP switches (if any) are set appropriately. Talk to the network administrator. -
Page 15: Video Resolution Setting
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Video Resolution Setting All non-architectural RoboSHOT cameras use a rotary switch to set output resolution. Set the desired video output resolution with the rotary switch before installing the camera. Note that the video resolutions are mapped differently on the rotary switch for the newer Elite-series cameras. -
Page 16: Camera Behavior Settings - Roboshot 12 Hdmi And Roboshot 30 Hdmi
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Camera Behavior Settings – RoboSHOT 12 HDMI and RoboSHOT 30 HDMI Older RoboSHOT cameras use DIP switches to set camera behaviors; the RoboSHOT Elite series cameras set all camera behaviors in the web interface. A label on the bottom of the camera provides a quick reference for setting the switches. -
Page 17: Rs-232 Serial Communication Settings
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras RS-232 Serial Communication Settings The RS-232 serial port (color-coded blue) provides a means of controlling the camera from a third-party device. Be sure the camera is set to the same baud rate as the external control device. Specification Value Communication Speed... -
Page 18: Cabling Notes
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Cabling Notes Caution When making cables, do not use pass-through RJ-45 connectors. If they are crimped incorrectly, they can damage the connectors on the product, cause intermittent connections, and degrade signal quality. Physical damage to the connectors may void your warranty. -
Page 19: Basic Connections - Roboshot 12E Hdmi And Roboshot 30E Hdmi
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Basic Connections – RoboSHOT 12E HDMI and RoboSHOT 30E HDMI This diagram shows a simple installation for a RoboSHOT 12E HDMI or RoboSHOT 30E HDMI camera. The RoboSHOT HDMI Elite cameras are not compatible with OneLINK devices. Basic Connections –... -
Page 20: Basic Connections - Roboshot 12 Hdmi With Camera Extension
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Basic Connections – RoboSHOT 12 HDMI with Camera Extension This diagram shows a RoboSHOT 12 HDMI camera connected to a OneLINK HDMI interface to extend power, video, and control over a single cable. The EZCamera Interface Module (EZIM) is designed to be mounted to the underside of the camera's Thin Profile Wall Mount. -
Page 21: Installing The Camera
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Installing the Camera Be sure you have already set the camera's switches. Caution Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment damage and will void the warranty. -
Page 22: Powering Up The Camera
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Powering Up the Camera Connect camera power. The camera will run a self-test routine and move to its home position. This will take a few seconds. When the camera is initialized and ready, video is available and the status light is blue. At this point, the camera is ready to accept control information. -
Page 23: Operation, Storage, And Care
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Operation, Storage, and Care For smears or smudges on the product, wipe with a clean, soft cloth. Use a lens cleaner on the lens. Do not use any abrasive chemicals. Keep this device away from food and liquids. Do not operate or store the device under any of the following conditions: Temperatures above 40°C (104°F) or below 0°C (32°F) High humidity, condensing or wet environments... -
Page 24: Compliance And Conformity Statements
(2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 25: European Compliance
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 26: Warranty And Return Policy
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. - Page 27 Initial shipments of equipment that are refused upon attempted delivery, for any reason, are subject to restocking charges. The Dealer has up to 60 days from the date of purchase to return Vaddio product for credit for future purchases of Vaddio product only.
- Page 28 Returns must be made in the original Vaddio packaging with all original materials if at all possible. Vaddio products with missing original materials will be billed to the dealer at dealer price.
- Page 29 Repair Charge Estimates: Estimates on repair charges for a specific problem will not be given before an RMA is issued and the actual product has been evaluated by a Vaddio technician. Repair estimates will be given after the repair department receives and evaluates the unit.
-
Page 30: Photo Credits
Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras Photo Credits This manual may include some or all of these photos. European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats- gender-got-to-do-with-it/, Public Domain, https://commons.wikimedia.org/w/index.php?curid=38834990 Carl Sagan, Bruce Murray, Louis Friedman (founders) and Harry Ashmore (advisor), on the occasion of... -
Page 31: Index
locations of connectors 9-10 Index mounting cameras 11-12, 19 anatomy of the camera 8-10 OneLINK 9-10, 18 operating environment 21 output resolution 13 behavior on power-up 20 packing lists 3 cable 9-10, 16 pin-out, RS-232 connector 15 connectors 9-10, 16 power 9-10, 18, 20 please check them (PLEASE) 16 on and off 20... - Page 32 Installation Guide for RoboSHOT HDMI High-Definition PTZ Cameras wall mount 12 warranty 11, 24 YCbCr color space setting 14...
- Page 33 ©2019 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.
