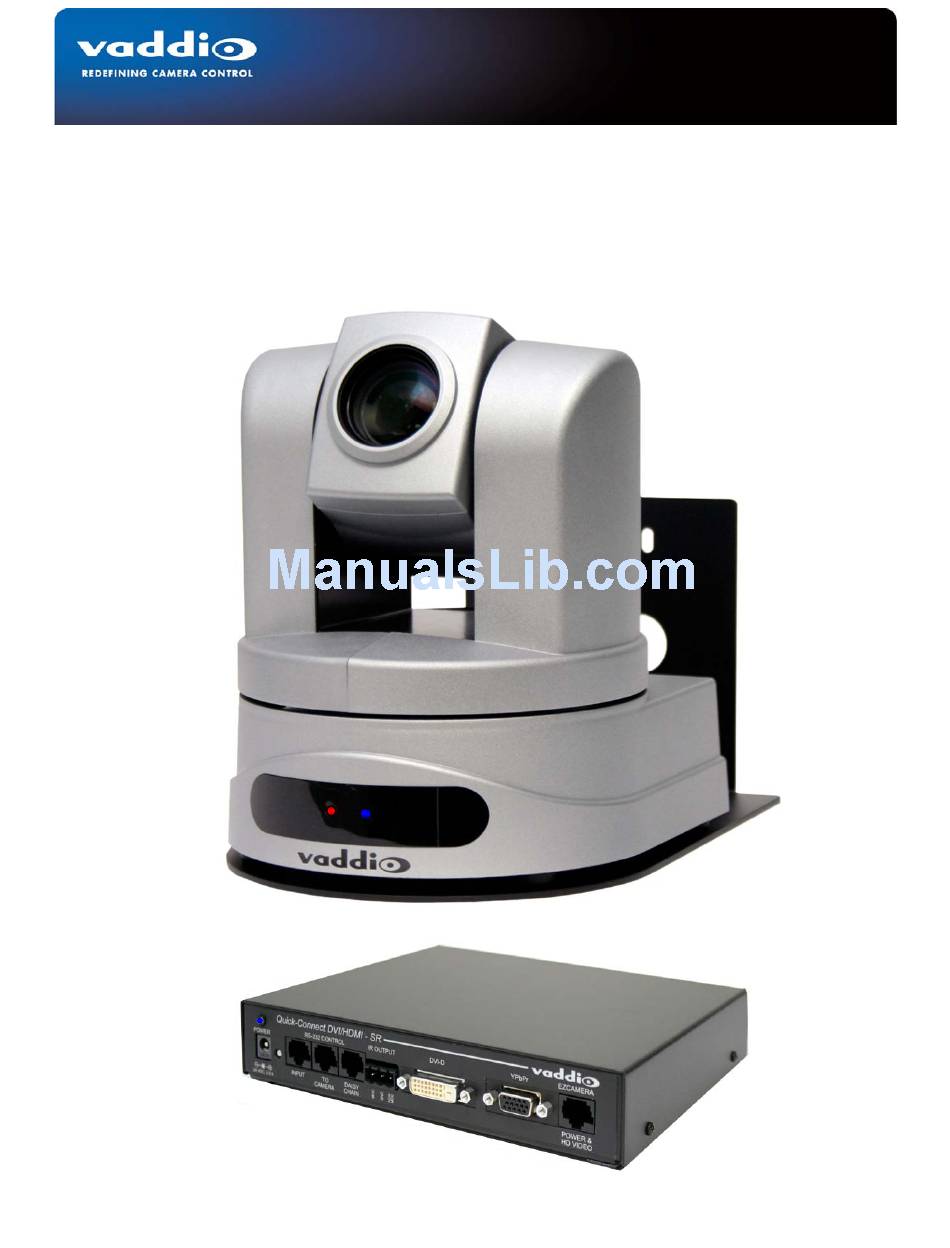

High Definition PTZ Camera Featuring the Quick-Connect™ DVI/HDMI SR Interface
Model Number 999-6956-000 (North America)
Model Number 999-6956-001 (International)
Quick-Connect DVI/HDMI SR Interface
PN: 998-1105-018
©2011 Vaddio - All Rights Reserved ● WallVIEW DVI/HDMI HD-20 ● Document Number 342-0180 Rev. A
W
V
I
E
W
V
I
E
A
L
L
A
L
L
Installation and User Guide
W
™
D
V
I
/
W
™
D
V
I
/
H
D
M
I
H
D
H
D
M
I
H
D
-
2
0
-
2
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WALLVIEW DVI/HDMI HD-20 and is the answer not in the manual?

Questions and answers

Related Manuals for VADDIO WALLVIEW DVI/HDMI HD-20

Summary of Contents for VADDIO WALLVIEW DVI/HDMI HD-20

  • Page 1 High Definition PTZ Camera Featuring the Quick-Connect™ DVI/HDMI SR Interface Model Number 999-6956-000 (North America) Model Number 999-6956-001 (International) Quick-Connect DVI/HDMI SR Interface PN: 998-1105-018 ©2011 Vaddio - All Rights Reserved ● WallVIEW DVI/HDMI HD-20 ● Document Number 342-0180 Rev. A...
  • Page 2 WallVIEW DVI/HDMI HD-20 Inside Front Cover - Blank WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 2 of 20...
  • Page 3 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
  • Page 4 IR sensors are built into the front of the ClearVIEW HD-20 to receive IR signals from the IR remote control supplied with the camera. 4) Blue Power Light: A Vaddio blue power light is illuminated when the camera is turned on. Compatible Vaddio Switchers and Joystick Controllers: AutoPresenter...
  • Page 5 Interface to supply power and return HSDS video from the camera. 12) Slot for Optional Cards: Optional slot cards can be plugged into the ClearVIEW HD-20 camera (the HD-SDI and the EZIM CCU Slot Cards are available). WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 5 of 20...
  • Page 6 For RS-232, use a standard Cat-5e cable and RJ-45 connectors (568B termination) from the RS-232 port on the back of a Vaddio camera controller or switcher. If the camera is connected to a third-party control system (such as AMX or Crestron), a DB-9 to RJ-45 control adapter cable is supplied.
  • Page 7 The IR output is sent out on the RS-232 RJ-45 jack on the back of the camera. Turning on the IR output will allow IR signals to be transmitted over the CAT-5 cable to the head end. When using RS-232 control or Vaddio CCU controllers (also via RS-232), turn the IR OUT to OFF.
  • Page 8 WallVIEW DVI/HDMI HD-20 System Connectivity Example 1: Basic system connectivity of a Vaddio WallVIEW™ DVI/HDMI HD-20 and Quick-Connect DVI/HDMI SR Interface with Vaddio ProductionVIEW™ Precision Camera Controller and PreVIEW HD Monitors. WallVIEW DVI/HDMI Power to Camera HD-20 System HSDS Video from...

  • Page 9: Basic Installation Instructions

    WallVIEW DVI/HDMI HD-20 System Connectivity Example 2: System connectivity of two (2) Vaddio HD-20 cameras and two (2) Quick- Connect DVI/HDMI SR Interfaces configured with single control port codec and Daisy Chain Control Emulation (DCCE). Vaddio HD-20 HD Camera Systems...
  • Page 10 Step 7: Connect the Vaddio 24 VDC, 2.0A power supply to the POWER Connector on the Quick-Connect and plug the power adapter into an AC outlet. Power will travel down the Power/Video Cat-5e cable to the camera.
  • Page 11 Thin Profile Wall Mount HD-20 12-Gauge CRS with Black Powder Coat Paint Materials 5.125” (130.175)mm H x 6.75” (171.45mm) W x 10” (254mm) D Dimensions Approx. 2.4 lbs. (1.08862176kg) Weight WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 11 of 20...
  • Page 12 Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 13: Compliance And Ce Declaration Of Conformity - Quick-Connect Dvi/Hdmi Sr Interface

    • Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. • Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment.

  • Page 14: Warranty Information

    Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.

  • Page 15: Appendix 1: Ypbpr Video Pin-Out For The Hd-20 Camera & Quick-Connect Analog Ypbpr Output

    The video signals are differential (HSDS) and can only be transmitted by the HD-20 and received by the Quick- Connect SR Interface YPbPr Power+ Power- 12345678 PB GND Y GND Appendix 2: ClearVIEW HD-20 Dimensions WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 15 of 20...

  • Page 16: Appendix 3: Communication Specification

    TXD (to RXD of control source) No Flow control NOTE: The Vaddio ClearVIEW HD-20 Control Protocol is similar, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-20 specific commands in the following Command and Inquiry Lists.
  • Page 17 81 01 04 01 03 FF ICR Off **Additional Information: Pan Range: 8044 – 7FBC (-32,700 to +32,700) Tilt Range: E891 – 4C2B (-5,999 to +19,499) Actual Pan/Tilt ranges defined in Inquiry list WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 17 of 20...
  • Page 18 50 00 00 0p 0q FF pq: ExpComp Pos -Iris Position CAM_ICRModeInq 81 09 04 01 FF y0 50 02 FF ICR On y0 50 03 FF ICR Off WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 18 of 20...
  • Page 19 WallVIEW DVI/HDMI HD-20 WallVIEW DVI/HDMI HD-20 Manual 342-0180 Rev. A Page 19 of 20...
  • Page 20 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2011 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, ClearVIEW, ProductionVIEW, Quick-Connect, AutoPresenter, DCCE, WallVIEW, EZCamera, HSDS and PowerRite are registered trademarks of Vaddio.
