Installation and User Guide
V
™ Z
SHOT™ 20 QSR S
ADDIO
OOM
YSTEM

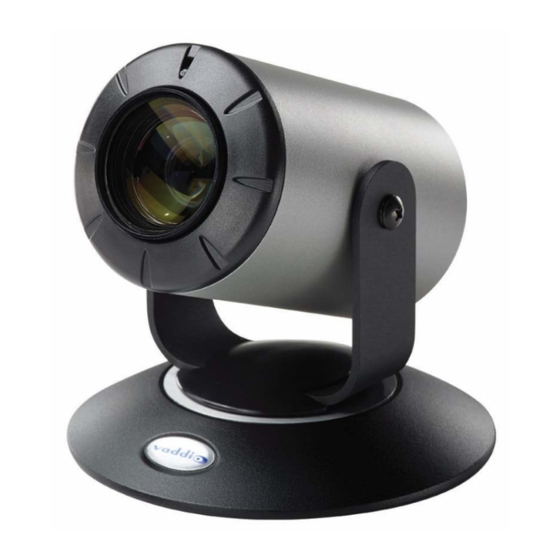

High Definition Camera System with 20X Optical Zoom
featuring the Quick-Connect SR Interface
Model Number 999-6920-300 (North America)
Model Number 999-6920-301 (International)
Quick-Connect SR Interface
ZoomSHOT 20 QDVI Camera Document Number 342-0968 Rev A
Page 1 of 20
Advertisement
Table of Contents
Related Manuals for VADDIO ZoomSHOT 20 QSR
Summary of Contents for VADDIO ZoomSHOT 20 QSR

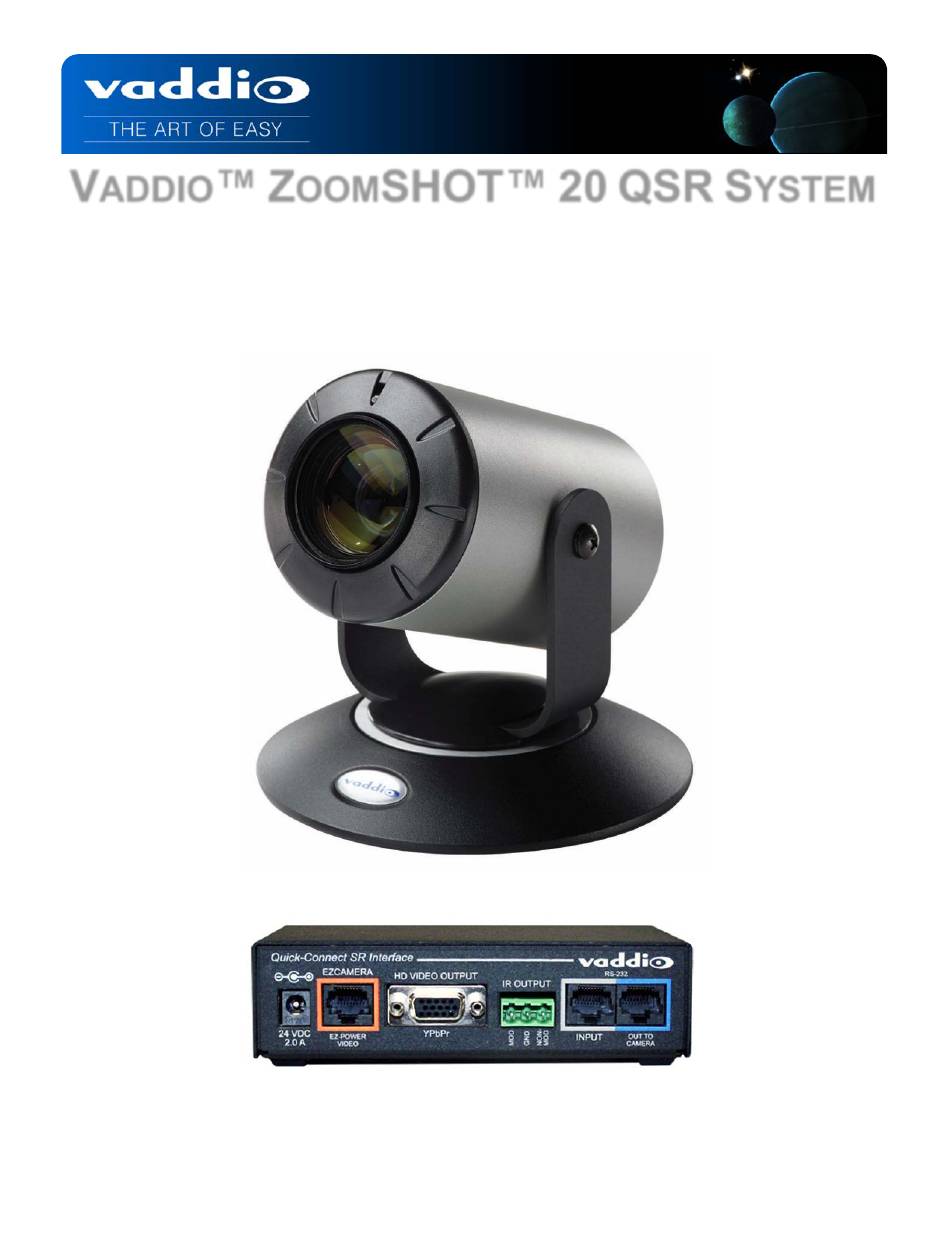

- Page 1 Installation and User Guide ™ Z SHOT™ 20 QSR S ADDIO YSTEM High Definition Camera System with 20X Optical Zoom featuring the Quick-Connect SR Interface Model Number 999-6920-300 (North America) Model Number 999-6920-301 (International) Quick-Connect SR Interface ZoomSHOT 20 QDVI Camera Document Number 342-0968 Rev A Page 1 of 20...
- Page 2 ZoomSHOT 20 QSR Camera System Inside Front Cover - Blank, Mostly ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 2 of 20...
-
Page 3: Table Of Contents
General Specifications ............................. 10 Vaddio IR SHOT Commander Remote ........................11 Image: Vaddio IR SHOT Commander Hand-held IR remote ................11 Table: ZoomSHOT 20 OSD Menu Structure ......................12 Compliance and CE Declaration of Conformity - ZoomSHOT 20 ................14 ... -
Page 4: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 5: Unpacking
4) The Aluminum Base and Steel Cylindrical Body: Please don’t drop it on your foot, it’s fairly substantial. 5) Logo: Really Cool Logo Badge (RCLB). The RCLB is affixed to the base in a recessed ovoid area. ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 5 of 20... -
Page 6: Rear Panel Connections With Callouts
1080i/60 1080p/60 720p/50 1080p/30 1080i/50 1080p/25 Notes: Set the rotary switch to an assigned position. If put on an unassigned position, then 720p/60 will be displayed. ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 6 of 20... -
Page 7: Quick-Connect Sr Interface
These RJ-45 connectors allow an external controller (beware of upcoming shameless plug) like the ProductionVIEW™ Precision Camera Controller to route through the Quick-Connect SR for ease of cabling. ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 7 of 20... -
Page 8: Image: Basic Wiring Configuration
EZ-POWER VIDEO and RS-232 ports on the back of the ZoomSHOT to the Quick-Connect SR Interface. These jacks are color coded for ease of connection. ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 8 of 20... -
Page 9: Step By Step Installation Instructions
To dress the cabling, push the extra cable back into the wall opening. Step 5: Connect the Vaddio 24 VDC, 2.08 Amp power supply to a power outlet and to the Quick Connect SR Interface. Power will travel down the EZ-POWER VIDEO Cat. 5 cable to the camera. The camera will boot up and in a few seconds, HSDS (differential) video will travel back down the Cat-5 cable and be ready to accept control information from the IR remote control or RS-232 camera controller. -
Page 10: General Specifications
1/3 Rack Size - 1.6” (40.64mm ) H x 5.5” (139.7mm) W x 3.25” (82.55mm) D Dimensions (H x W x D) 0.45 lbs. ( 0.2041165643 kg) Weight Rack Mount Adapter: 998-6000-002 - Holds three (3) Quick-Connect SR Interfaces Accessory ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 10 of 20... -
Page 11: Vaddio Ir Shot Commander Remote
Vaddio ClearVIEW HD-20 , PowerVIEW HD-22 and HD-30 The Vaddio IR Shot Commander is also compatible with the Sony® EVI series and the BRC series PTZ cameras. Image: Vaddio IR SHOT Commander Hand-held IR remote (Top View) Red LED indicates IR transmission and... - Page 12 Automatic Gain Control RETURN< OFF / LOW /MED / HIGH Noise Reduction - Don’t use above Low SSNR SENS-UP OFF - Do not Use Return to Main Menu RETURN< ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 12 of 20...
- Page 13 VIDEO OUT FORM Do not change this parameter RETURN< Do not change resolutions here - Use the Rotary Switch on the back of the camera RESET EXIT ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 13 of 20...
-
Page 14: Compliance And Ce Declaration Of Conformity - Zoomshot 20
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 15: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 16: Appendix 1: Pin-Outs For Zoomshot 20 Camera And Quick-Connect Sr
PB - 12345678 Important Note: The EZ-POWER VIDEO RJ-45 Connector on a Vaddio CAT-5 system camera is for use with the Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick- Connect USB and USB Mini Interfaces ONLY (568B Wiring Standard). The video signals are differential (HSDS) and can only be processed by the interfaces above. -
Page 17: Communication Specification
TXD (to RXD of control source) NOTE: The Vaddio ZoomSHOT 20 Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-Series specific commands in the following Command and Inquiry Lists. -
Page 18: Zoomshot 20 Command List (2/2)
ICR Off 8x 01 04 01 03 FF ICR Off - Cut Filter In *Zoom and Focus Data: CAM_Zoom: Range(0x000–0x071A) CAM_Focus: Range (0x0ed-0x0944) dependent on Zoom Position ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 18 of 20... -
Page 19: Zoomshot 20 Inquiry List (1/1)
ExpComp Pos CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On - ICR filter Out y0 50 03 FF Off – ICR filter In ZoomSHOT 20 QSR System Document Number 342-0968 Rev A Page 19 of 20... - Page 20 ©2015 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, ZoomSHOT, ProductionVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio. All other trademarks are...
