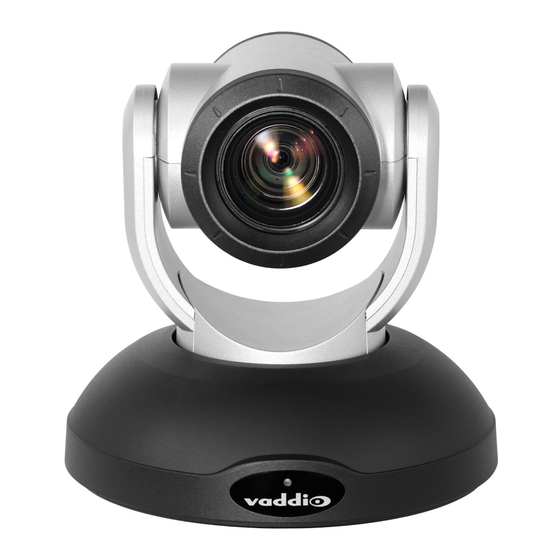

VADDIO RoboSHOT 20 UHD Installation Manual

VADDIO RoboSHOT 20 UHD Installation Manual

High performance, ultra high definition ptz camera
Hide thumbs Also See for RoboSHOT 20 UHD:

Advertisement

Installation Guide for
RoboSHOT 20 UHD
High Performance, Ultra High Definition

PTZ Camera

Document 342-1193 Rev. C
July 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoboSHOT 20 UHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VADDIO RoboSHOT 20 UHD

  • Page 1: Ptz Camera

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Document 342-1193 Rev. C July 2016...
  • Page 2: Table Of Contents

    Contents Overview What's in this Guide Camera Features Unpacking the Camera A Quick Look at the Camera Front of the Camera Connector Panel Switch Settings Video Resolution Camera Settings Installation Before You Install the Camera Don’t Void Your Warranty! Cabling Notes Installing the Wall Mount About Ceiling-Mounted Cameras Basic Connection Diagram...
  • Page 3: Overview

    Instructions for installing the camera mount Information on connecting and mounting the camera Camera power-on Complete product information is available in the Integrator's Complete Guide to RoboSHOT 20 UHD Ultra-High Definition PTZ Cameras. Camera Features Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3- type sensor delivers native 2160p/30 (3840 x 2160) video 12X optical zoom and 1.67X digital zoom;...
  • Page 4: Unpacking The Camera

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Unpacking the Camera Make sure you received all the items you expected. Caution Always support the camera's base when picking it up. Lifting the camera by its head or mounting arm will damage it.
  • Page 5: A Quick Look At The Camera

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera A Quick Look at the Camera This section covers the physical features of the RoboSHOT 20 UHD. Front of the Camera Camera and Zoom Lens: Horizontal field of view up to 74°.12X optical zoom combines with 1.67X digital zoom to deliver an effective 20X zoom range;...
  • Page 6: Connector Panel

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Connector Panel From left to right: 12 VDC, 3.0 A connector – EIA-J04 connector for the power supply shipped with the camera, if not using a OneLINK extension system OneLINK HDBaseT connector –...
  • Page 7: Video Resolution

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Video Resolution Set the desired available output resolution for the camera with the rotary switch. Switch positions A through F are not used. Switch position Resolution 1080p/59.94 1080p/50 1080i/59.94...
  • Page 8: Camera Settings

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Camera Settings Use the DIP switches to set other camera behaviors. Note When the camera is right side up, switches are in their default positions when they are up.
  • Page 9: Installation

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Installation This section covers Siting the camera Installing the mount Connecting the camera Installing the camera Before You Install the Camera Choose a camera mounting location that will optimize camera performance. Consider camera viewing angles, lighting conditions, line-of-sight obstructions, and in-wall obstructions where the camera is to be mounted. ...
  • Page 10: Installing The Wall Mount

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Installing the Wall Mount All RoboSHOT cameras include a Thin Profile Wall Mount. Other mounting options are available as well. Contact us if you don't have the camera mount you need.
  • Page 11: Installing The Camera

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Installing the Camera Caution Before you start, be sure you can identify all cables correctly. Connecting a cable to the wrong port can result in equipment damage.
  • Page 12: Powering Up The Camera

    The camera will wake up and initialize. This will take a few seconds. When the camera is initialized and ready, its front indicator is blue. At this point, it is ready to accept control information. When powering up, the RoboSHOT 20 UHD camera executes a different sequence of movements than other Vaddio PTZ cameras.
  • Page 13: Compliance Statements And Declarations Of Conformity

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera Compliance Statements and Declarations of Conformity Compliance testing was performed to the following regulations: FCC Part 15 (15.107, 15.109), Subpart B Class A ICES-003, Issue 54:  2012...
  • Page 14: European Compliance

    Installation Guide for RoboSHOT 20 UHD High Performance, Ultra High Definition PTZ Camera European Compliance This product has been evaluated for electromagnetic compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device.  In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ...
  • Page 15: Warranty Information

    Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or...
  • Page 16: Index

    Index quick reference 3 indicator light 3 anatomy of the camera 3-4 resolution 4 switch setting 4 RJ-45 connectors 7 baud rate setting 6 RS-232 serial connection 4 behavior on power-up 10 shelf-mounted cameras 9 cable connectors 4, 7 shelf, camera mount 8 camera ID setting (DIP switch) 6 status light, meanings of colors 3 camera mount, installing 8...
  • Page 17 RoboSHOT™, OneLINK™, EZCamera™, and IR Remote Commander™ are trademarks of Vaddio. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
