4. The holes in the mounts may also be used to attach a Ø3mm (Ø1/8")
safety cable. You must supply your own safety cable.
5. Run the 30 ft. CAT6 cable (included) from Junction Box to Junction
Box, and Junction Box to Interface Box.

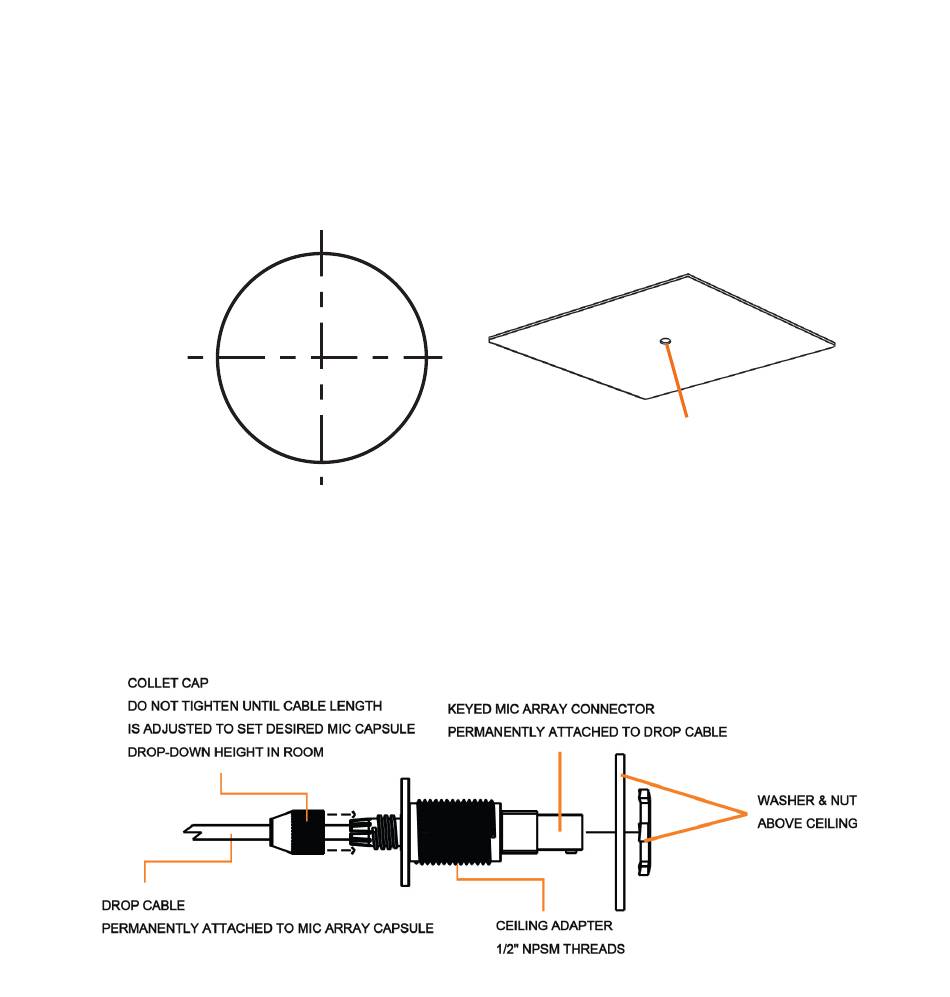

6. Drill a 7/8" hole in the removed ceiling tile for mic cable pass-through.
7/8" Hole
Template
7. Place the ceiling adapter in the hole, and pass the drop cable through.
8. Tighten the washer snugly into place against the ceiling adapter.
9. Adjust the length of drop-down for the cable as needed.
10. Slide the collet cap up to the ceiling adapter, and tighten snugly.
QUICK-START GUIDE
7/8" HOLE TEMPLATE
1:1 SCALE
Drill 7/8" Hole for Placement of
Ceiling Adapter
3
