Chore-Time Hyflo Assembly Manual page 2

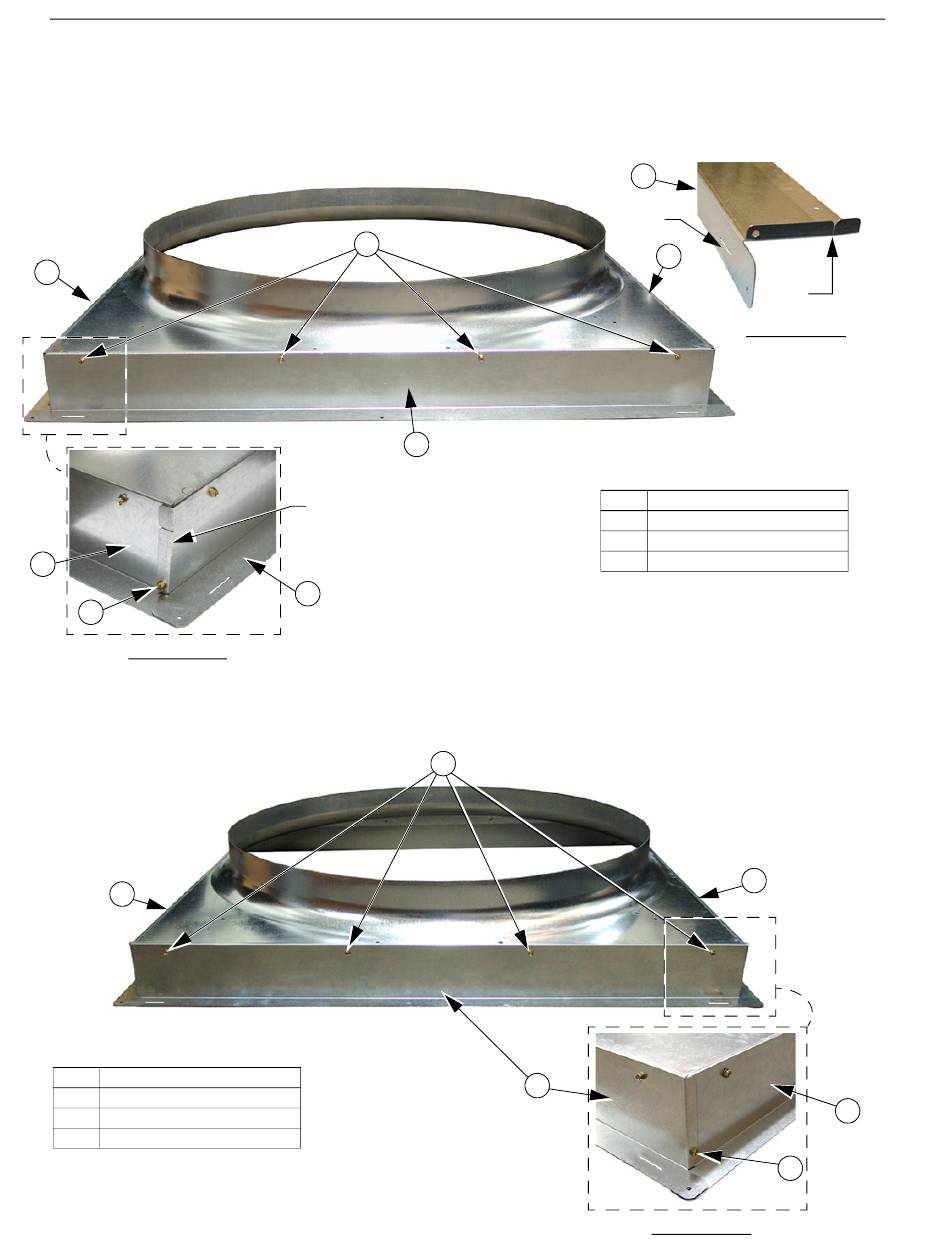

Attaching the Housing Panels
The Bottom Housing Panel has two Slots in it, and a full length bend (See Detail "A" below). The Flanges on the
Bottom Housing Panel should overlap the Side Housing Panels (Detail "B"). Attach the Bottom Housing Panel to
the bottom of the Shroud (the one with the Danger Decal) using the pre-drilled holes with four 1/4 x 1/2" Washer
Head Screws. Attach the Bottom Housing Panel to the Side Panels
with (2) 1/4 x 1/2" Washer Head Screws (one at each corner of the Fan) (Detail "B").
3 1
3 1
3 2
Detail "B"
Attach the Top Panel to the Shroud with (4) 1/4 x 1/2" Washer Head Screws. Make sure that the Top Panel Flanges
Overlap the Side Panels to provide watershed (See Detail "A"). Use (2) 1/4 x 1/2" Washer Head Screws to Fasten
the Top Panel to both side Panels (one at each corner of the Fan) (See Detail "A").
3 1
Item Description
1 Side Panel
2 1/4 x 1/2" Washer Head Screw
3 Top Housing Panel
2
48" and 52" Galvanized Hyflo® Un-Assembled Fans Assembly Manual
3 2
3 3
Bottom Housing Panel Overlapping
Side Housing Panel
3 3
3 2
Top Panel overlapping Top Panel overlapping
Side Panel
3 3
Slot
3 1
Item Description
1 Side Panel
2 1/4 x 1/2" Washer Head Screw
3 Bottom Housing Panel
3 3
Detail "A"
Bend
Detail "A"
3 1
3 1
3 2
MV1878D
