Front Panel

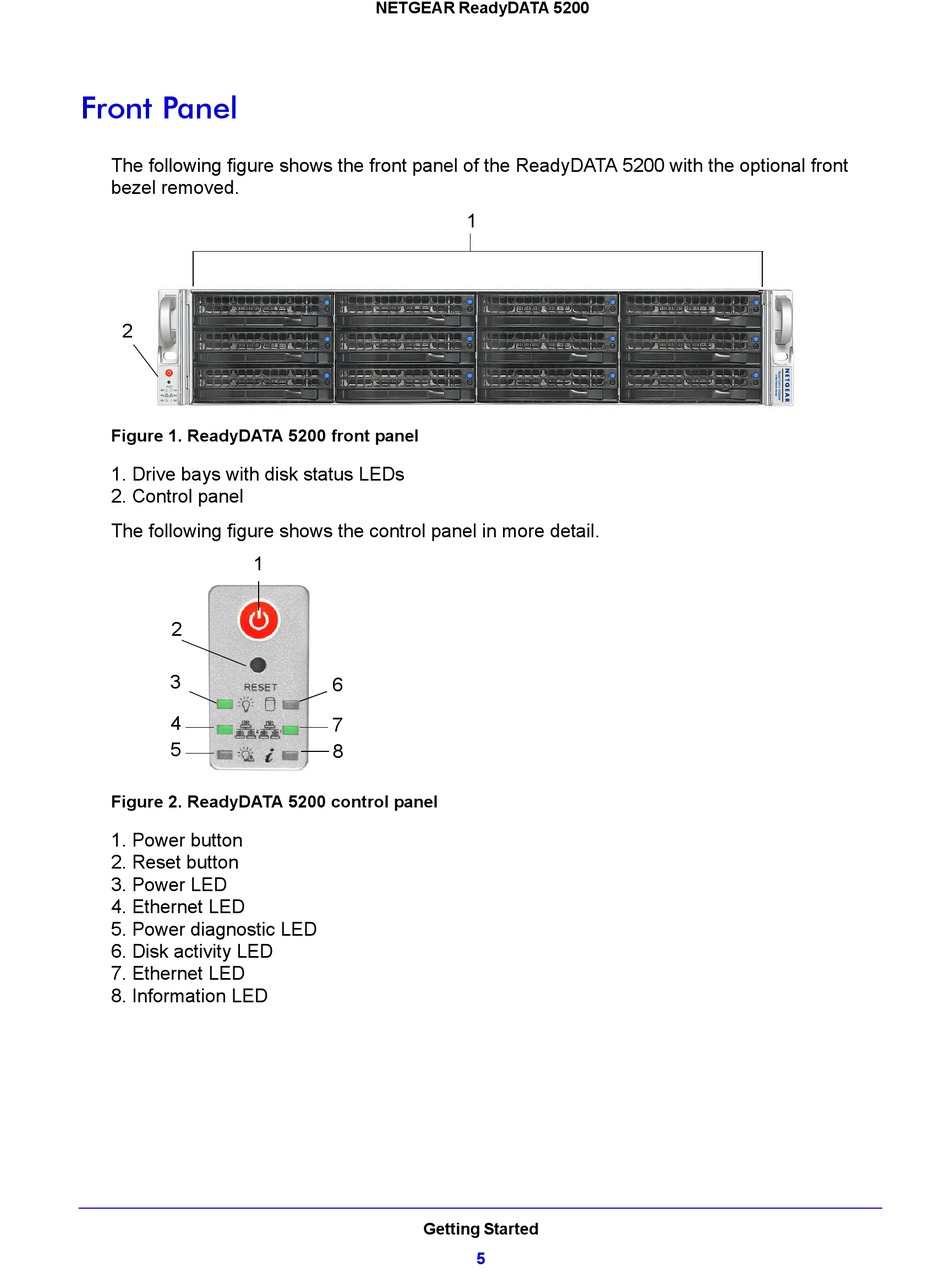

The following figure shows the front panel of the ReadyDATA 5200 with the optional front
bezel removed.
2
Figure 1. ReadyDATA 5200 front panel
1. Drive bays with disk status LEDs
2. Control panel
The following figure shows the control panel in more detail.
1
2
3
4
5
Figure 2. ReadyDATA 5200 control panel
1. Power button
2. Reset button
3. Power LED
4. Ethernet LED
5. Power diagnostic LED
6. Disk activity LED
7. Ethernet LED
8. Information LED
NETGEAR ReadyDATA 5200
1
6
7
8
