6.

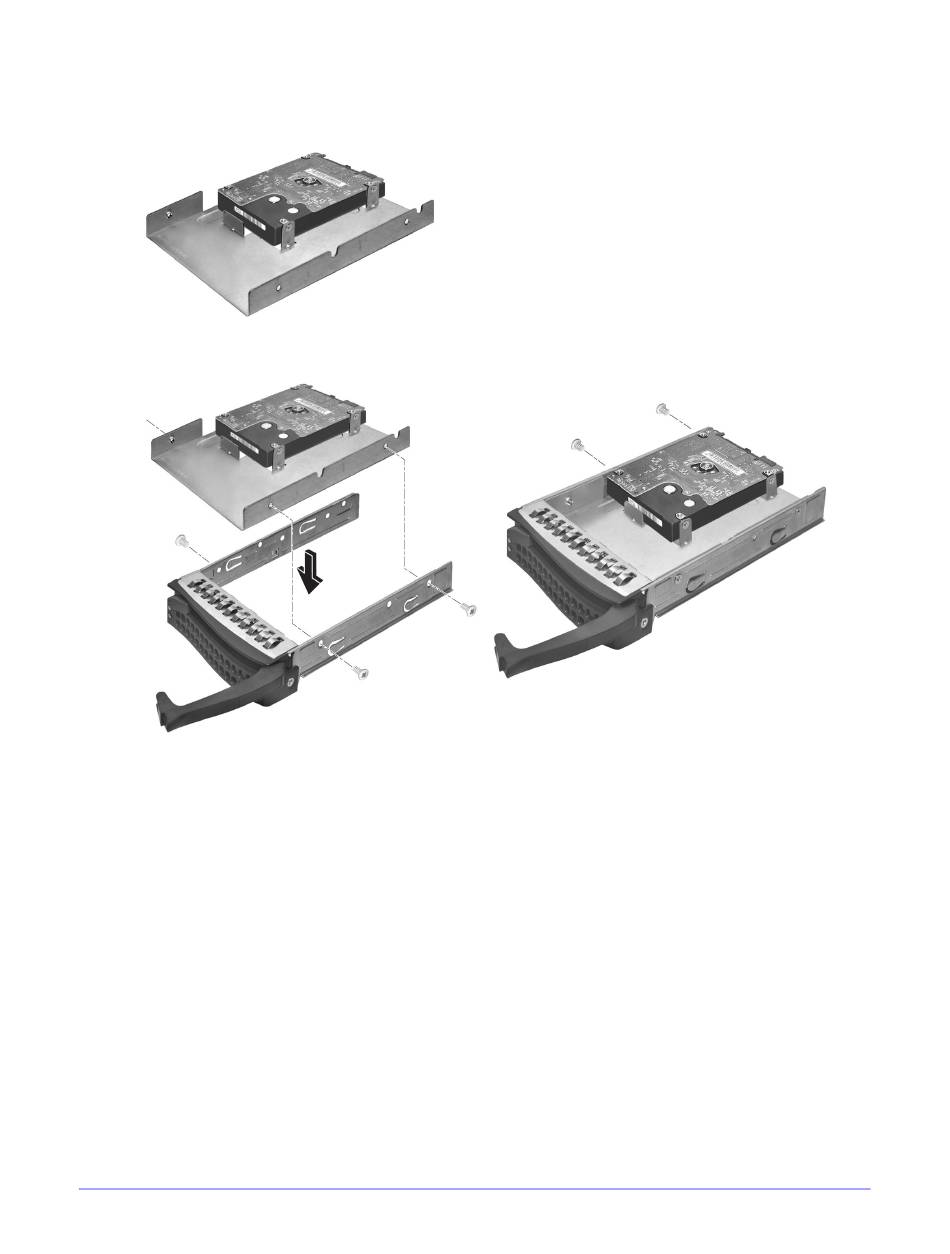

Align the screw holes on the disk drive with the screw holes on the metal tabs and install the
screws to fasten the disk drive to the metal plate.
7.
With the disk tray handle to the right and the hard disk drive to the left, assemble the disk
tray and metal plate.
8.
Slide the disk tray into the unit and secure the handle.
NETGEAR ReadyDATA 5200
Maintenance
25
