NETGEAR ReadyDATA 5200
Front Panel
The following figure shows the front panel of the EDA2000 (2U expansion disk array), top,
and EDA4000 (4U expansion disk array), bottom, with the optional front bezel removed.
2
1
2

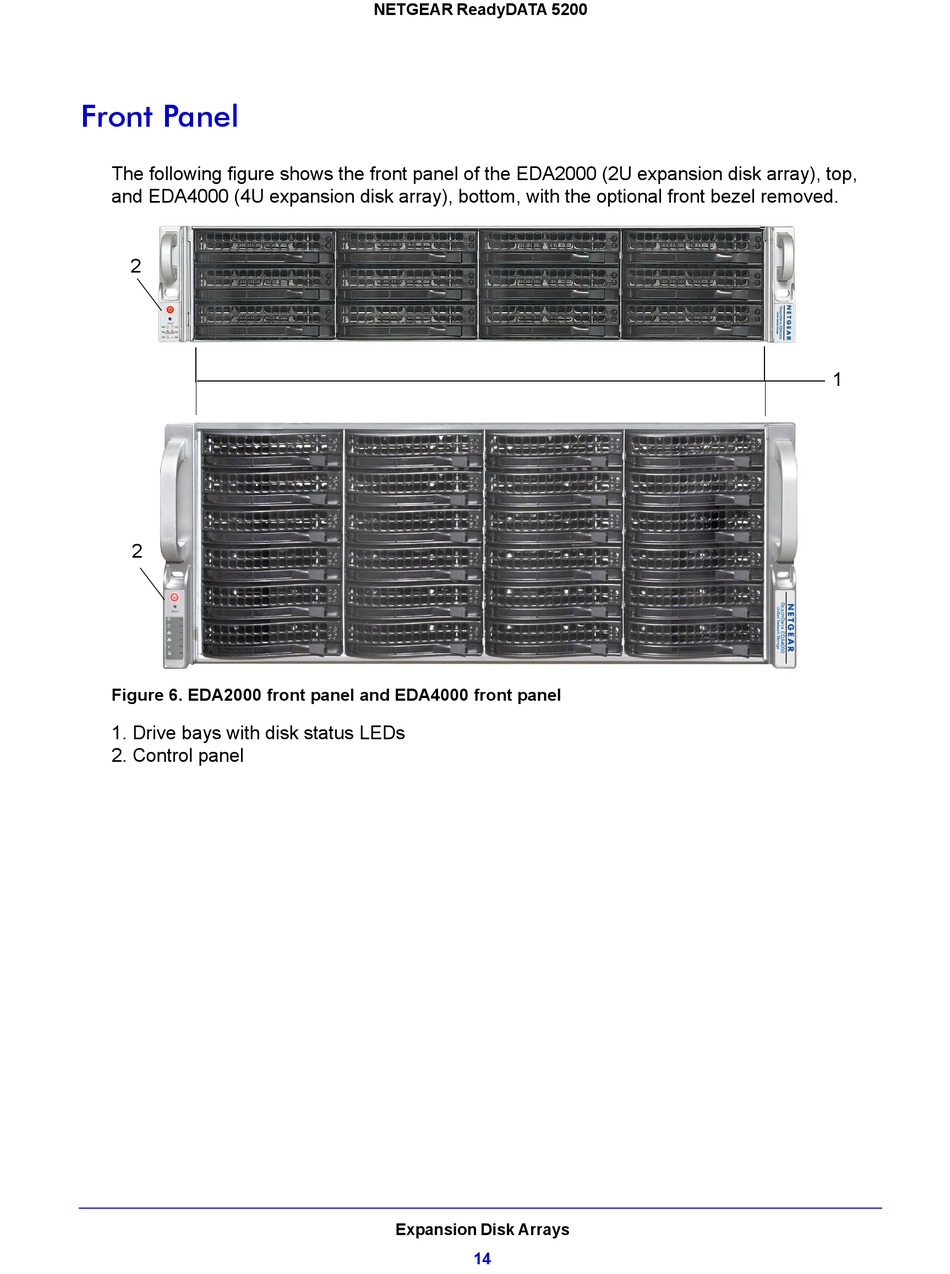

Figure 6. EDA2000 front panel and EDA4000 front panel
1. Drive bays with disk status LEDs
2. Control panel
Expansion Disk Arrays
