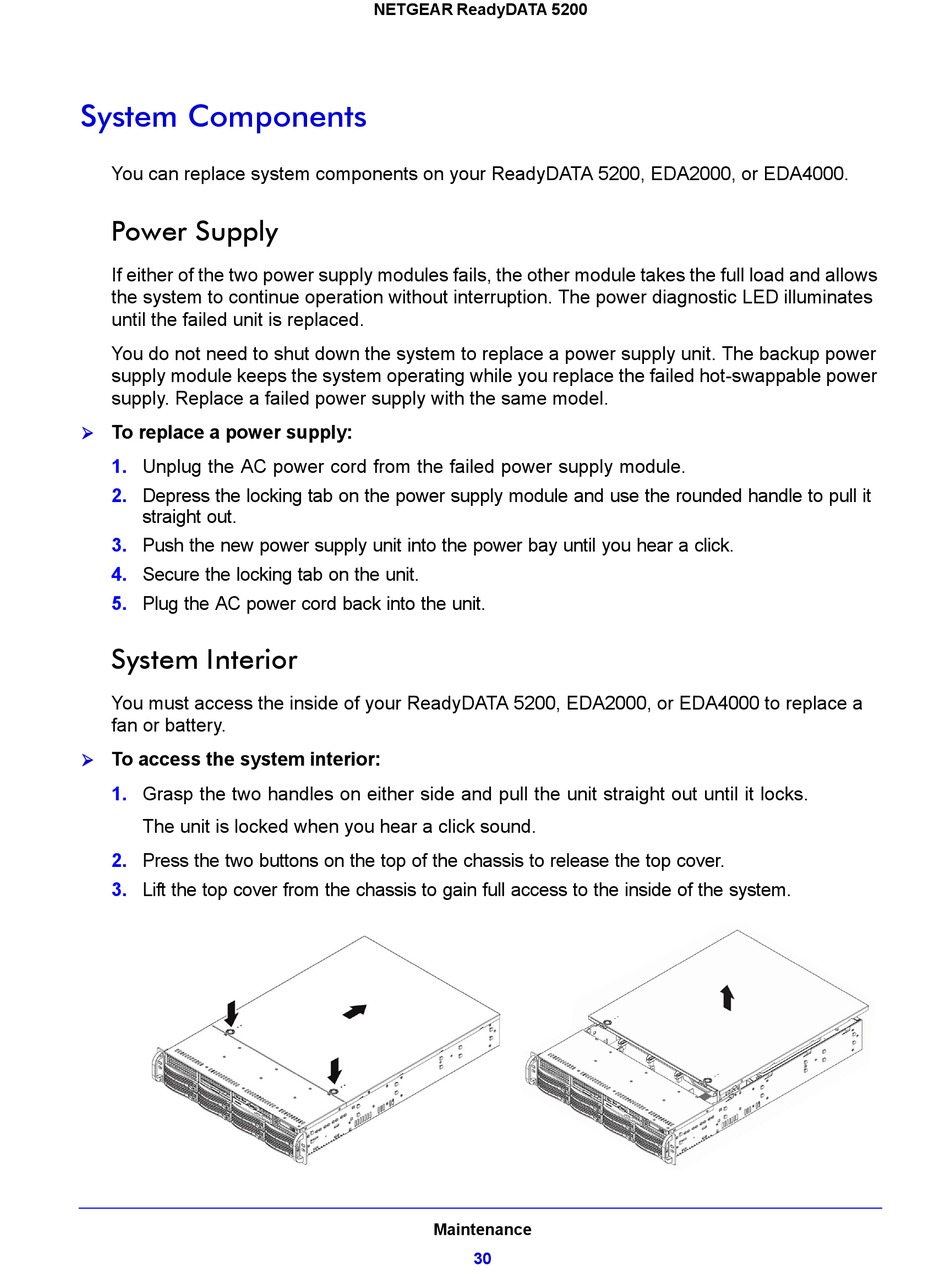

System Components

You can replace system components on your ReadyDATA 5200, EDA2000, or EDA4000.

Power Supply

If either of the two power supply modules fails, the other module takes the full load and allows
the system to continue operation without interruption. The power diagnostic LED illuminates
until the failed unit is replaced.
You do not need to shut down the system to replace a power supply unit. The backup power
supply module keeps the system operating while you replace the failed hot-swappable power
supply. Replace a failed power supply with the same model.
To replace a power supply:

1. Unplug the AC power cord from the failed power supply module.
2. Depress the locking tab on the power supply module and use the rounded handle to pull it
straight out.
3. Push the new power supply unit into the power bay until you hear a click.
4. Secure the locking tab on the unit.
5. Plug the AC power cord back into the unit.

System Interior

You must access the inside of your ReadyDATA 5200, EDA2000, or EDA4000 to replace a
fan or battery.
To access the system interior:

1. Grasp the two handles on either side and pull the unit straight out until it locks.
The unit is locked when you hear a click sound.
2. Press the two buttons on the top of the chassis to release the top cover.
3. Lift the top cover from the chassis to gain full access to the inside of the system.
