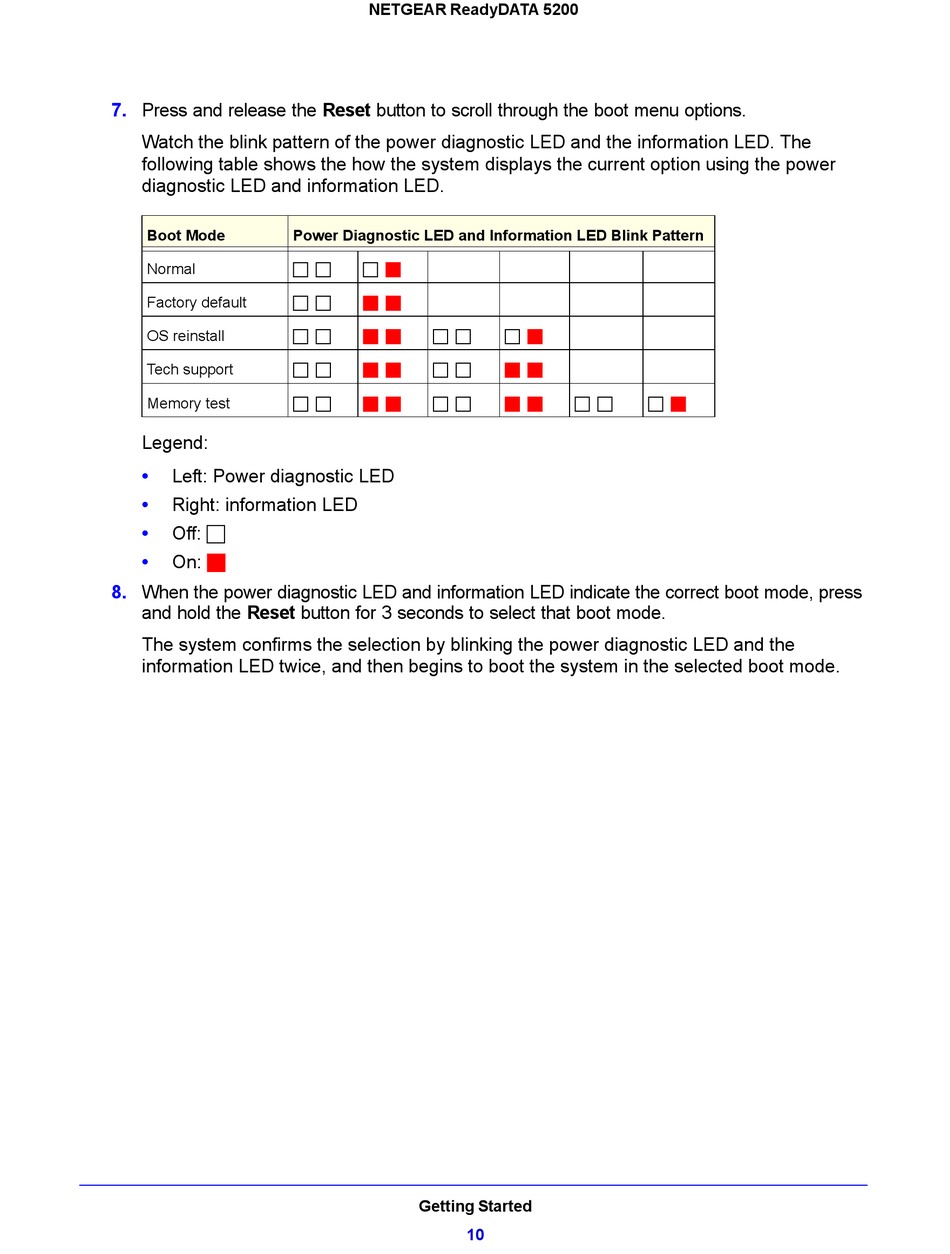

NETGEAR ReadyDATA 5200 Hardware Manual page 10

7. Press and release the Reset button to scroll through the boot menu options.
Watch the blink pattern of the power diagnostic LED and the information LED. The
following table shows the how the system displays the current option using the power
diagnostic LED and information LED.
Boot Mode
Normal
Factory default
OS reinstall
Tech support
Memory test
Legend:
• Left: Power diagnostic LED
• Right: information LED
• Off: 
• On:

8. When the power diagnostic LED and information LED indicate the correct boot mode, press
and hold the Reset button for 3 seconds to select that boot mode.
The system confirms the selection by blinking the power diagnostic LED and the
information LED twice, and then begins to boot the system in the selected boot mode.
NETGEAR ReadyDATA 5200
Power Diagnostic LED and Information LED Blink Pattern
 
 
  
  
  
Getting Started
10


  
