NETGEAR ReadyDATA 5200 Hardware Manual page 29

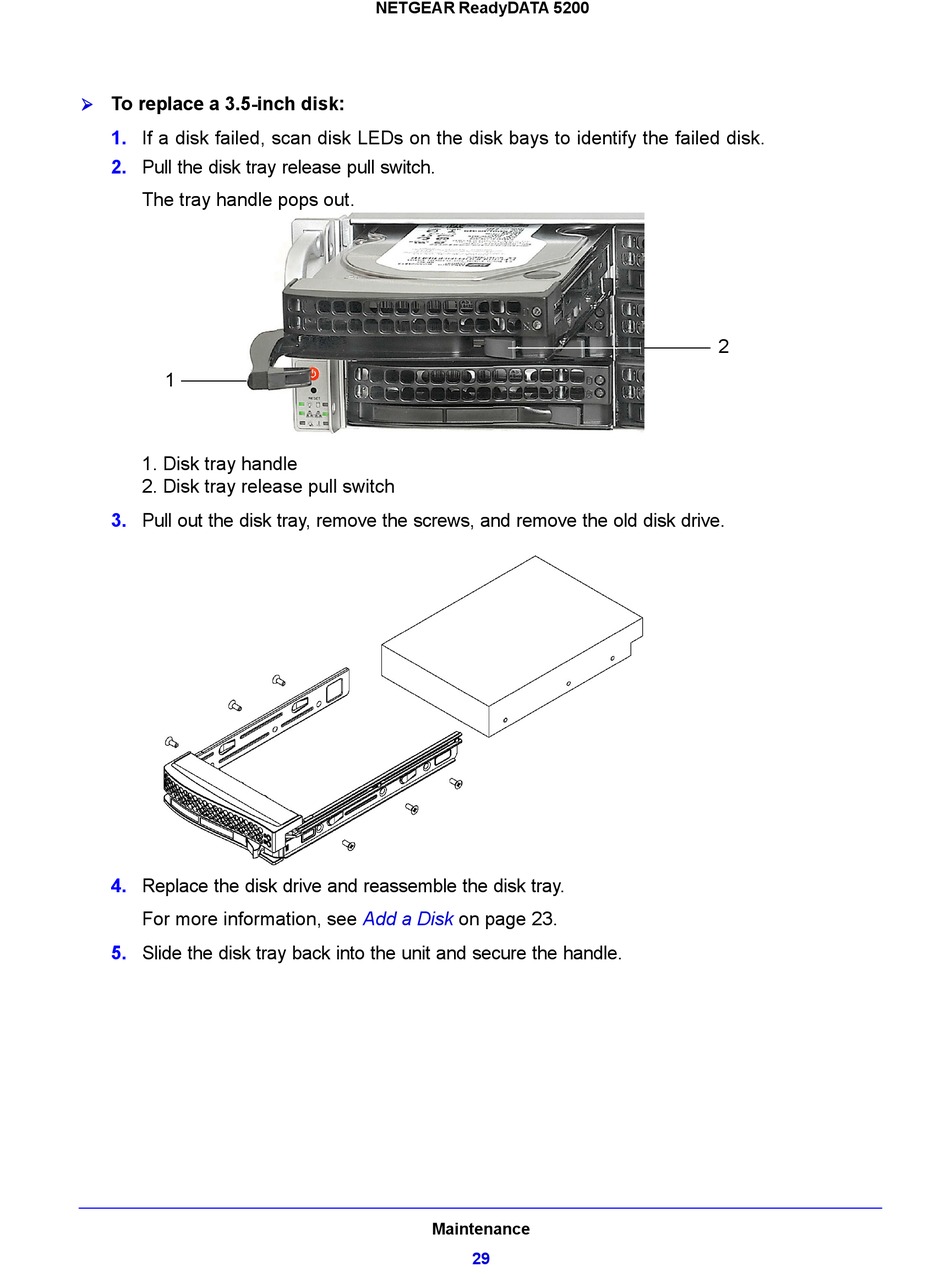

To replace a 3.5-inch disk:

1. If a disk failed, scan disk LEDs on the disk bays to identify the failed disk.
2. Pull the disk tray release pull switch.
The tray handle pops out.
1
1. Disk tray handle
2. Disk tray release pull switch
3. Pull out the disk tray, remove the screws, and remove the old disk drive.
4. Replace the disk drive and reassemble the disk tray.
For more information, see
5. Slide the disk tray back into the unit and secure the handle.
NETGEAR ReadyDATA 5200
Add a Disk on page 23.
Maintenance
29
2
