Soft reset
A module reset will only erase the steps perfomed in "Module programming". The firmware and settings flashed to the module
will not be affected.

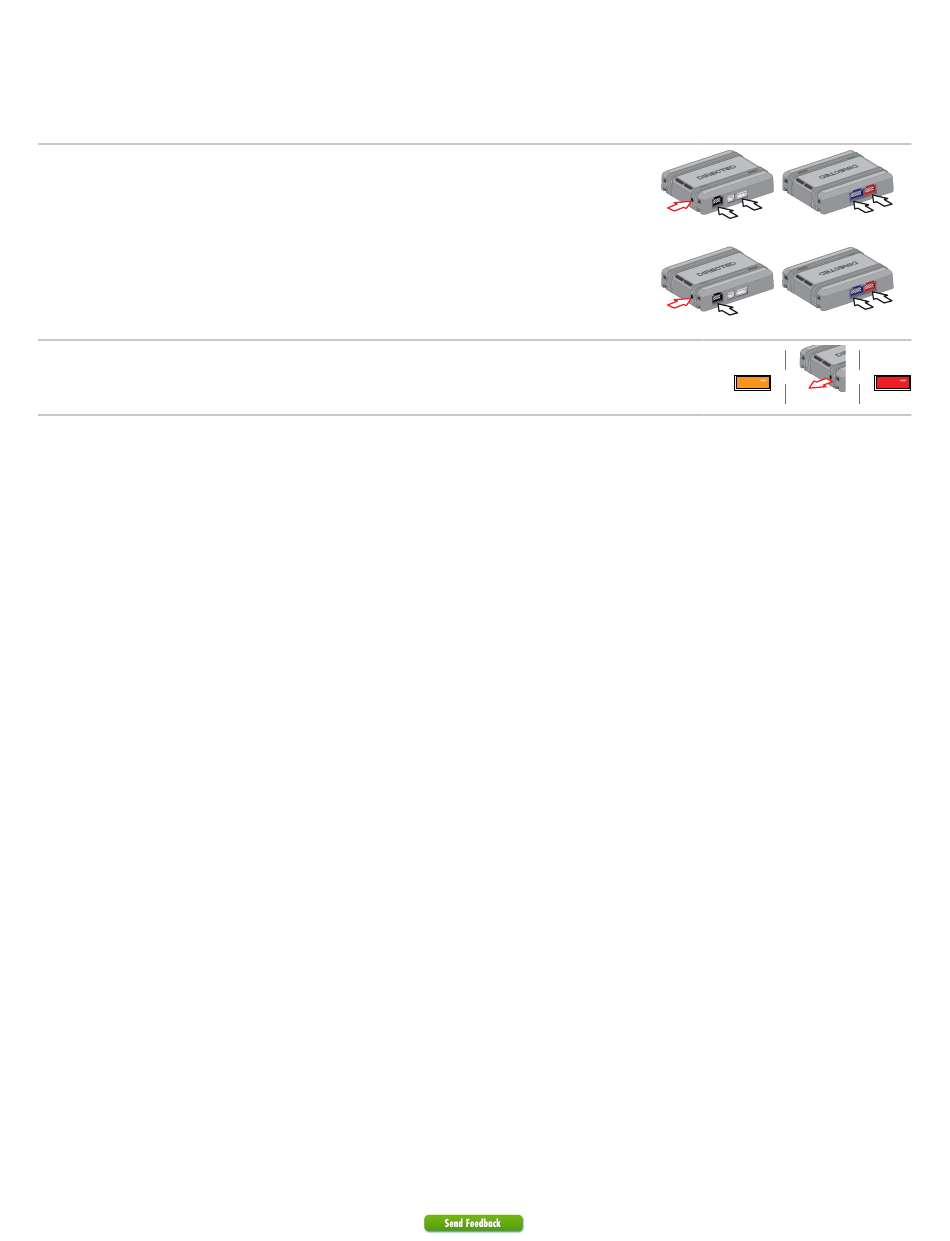

D2D installation
Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the
programming button, then connect the 4-pin D2D harness.
1
OR
W2W installation
Connect the 10-pin & 12-pin harnesses to the module. Press and hold the
programming button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange then release the programming button.
2
The LED turns ON solid red.
16
5
th
4
th
1
st
(D2D)
(Button)
(10-pin)
3
rd
1
st
(Button)
(10-pin)
&
Solid
Release
403.TL1 5.02 2010 Toyota Camry (Smart Key)
