A d j u s t i n g t h e y o k e p o s i t i o n
The Source Four provides multi-positioning capabilities within its yoke for overall fixture height and
angle.
S e t t i n g t h e f i x t u r e h e i g h t w i t h i n t h e y o k e

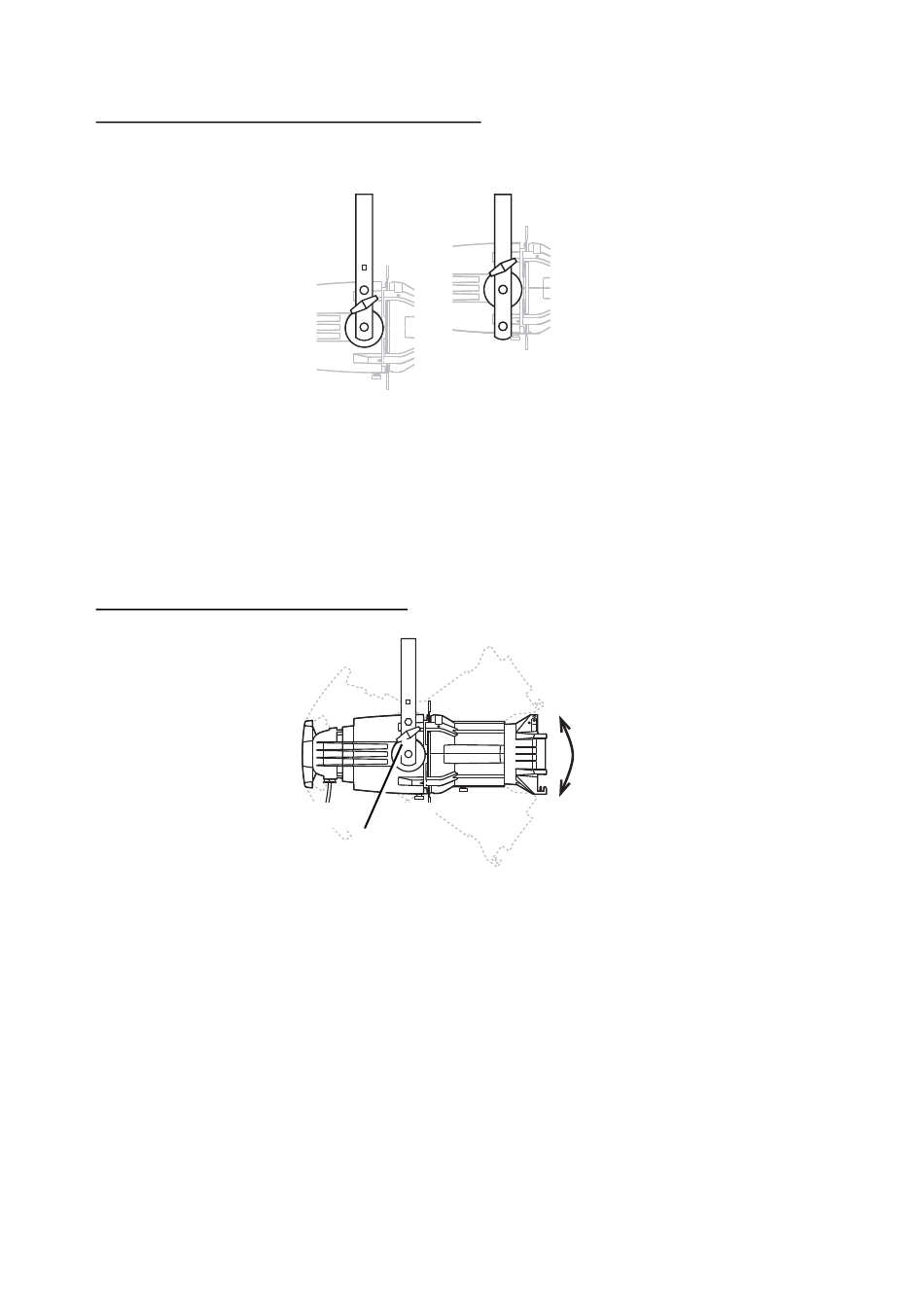

The Source Four has a two-position yoke for modifying the overall height in which the fixture is
mounted (see
General use position
Step 1: Remove the yoke locking knobs, washers, and hex bolts from either side of the fixture.
Step 2: Raise or lower the fixture to the desired position within the yoke.
Step 3: Reinstall the yoke's hex bolts, washers, and locking knobs.
Step 4: Tighten the yoke knobs to secure in position.
S e t t i n g t h e a n g l e w i t h i n t h e y o k e
Step 1: Loosen the yoke locking knobs (see
Step 2: Tilt the fixture to the desired position.
Step 3: Tighten the yoke locking knobs to secure in position.
8
Figure 11). To change the height position, perform the following steps.
Yoke locking knob
Low clearance position
Figure 12). Do not remove them.
Figure 11
Figure 12
