TriMark e-ask Instruction Manual

Discrete e-pad
Hide thumbs Also See for e-ask:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual , Manual
e-ASK
e
A
S
K
lectronic
ccess
ecurity
eyless-entry
Discrete e
-
PAD
Discrete e
-
PAD
Instruction Manual
(UM10 ~ 21067-01)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-ask and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TriMark e-ask

Summary of Contents for TriMark e-ask

  • Page 1 Discrete e Discrete e Instruction Manual (UM10 ~ 21067-01)

  • Page 2: Table Of Contents

    Table of Contents Introduction ................1 e-PAD Operation and Features ..........1 Locking Doors With Keypad ........... 2 Secure Operations ..............2 Dome Light Activation ............. 2 Protective Deactivating Security Feature ....... 2 Buzzer Operation ..............3 Keypad Backlight Operation ........... 3 Teaching Keypad New Authority / Access Codes ....

  • Page 3: Introduction

    Introduction This manual provides the necessary information for the proper installation and use of TriMark’s discrete e-PAD system. Note: Some features discussed in this manual may not be available on your system. e-PAD keypad Note: Horizontal or vertical e-PADs are available.

  • Page 4: Locking Doors With Keypad

    Locking Doors With Keypad Press and hold down the (1 / 2) button for 1-2 seconds. An access code is not needed to lock the doors. Secure Operations Entering a valid 5-digit access code enables secure operations. After entering an access code, the keypad is enabled for 5 seconds and a 6th button press initiates a secure operation, such as unlocking the doors.

  • Page 5: Buzzer Operation

    Buzzer Operation The buzzer chirps once when power is first applied to the keypad and for each key press during regular use. When an authorized access code is entered, the system chirps twice to indicate readiness for a secure operation (6th button press). The system chirps twice for each button press while in Learn Mode.

  • Page 6: Change/Add Access Codes

    The procedure is: 1. Ground the yellow learn mode wire. The buzzer will chirp for approximately 3 seconds and the keypad backlights will flash to indicate learn mode (back lights can only be seen when dark). 2. Enter the new 5-digit code. (Double chirps after each button press).
  • Page 7 Remote transmitter FOBs, batteries, and other equipment subject to normal wear and deterioration may need to be replaced periodically by dealer and/or end user and are not covered by this warranty. TriMark will not be liable for indirect, special, incidental or consequential damages.

  • Page 8: Appendix A: Mounting Information

    Appendix A: Mounting Information...

  • Page 9: Appendix B: Wiring Information

    Appendix B: Wiring Information Wire Identification: 1. Red / White Wire – Relay 12V 2. White / Green Wire - lock all TERMINAL 3. White / Red Wire – unlock all with 1/2 secure IDENTIFICATION operation (entry doors) 4. Brown Wire—unlock with 3/4 secure operation (bank 1) 5.

  • Page 10: Wiring Diagram

    Wiring Diagram LOCK RED/WHITE RELAY POWER UNLOCK ENTRY WHITE/GREEN ENTRY LOCK OUTPUT WHITE/RED UNLOCK BANK 1 UNLOCK Entry BANK 1 UNLOCK BANK 2 BROWN UNLOCK Bank 1 BANK 2 ORANGE UNLOCK Bank 2 PINK LIGHTS LIGHTS BLACK GROUND RED #7 + 12 VDC POWER SOURCE...
  • Page 11 Notes...

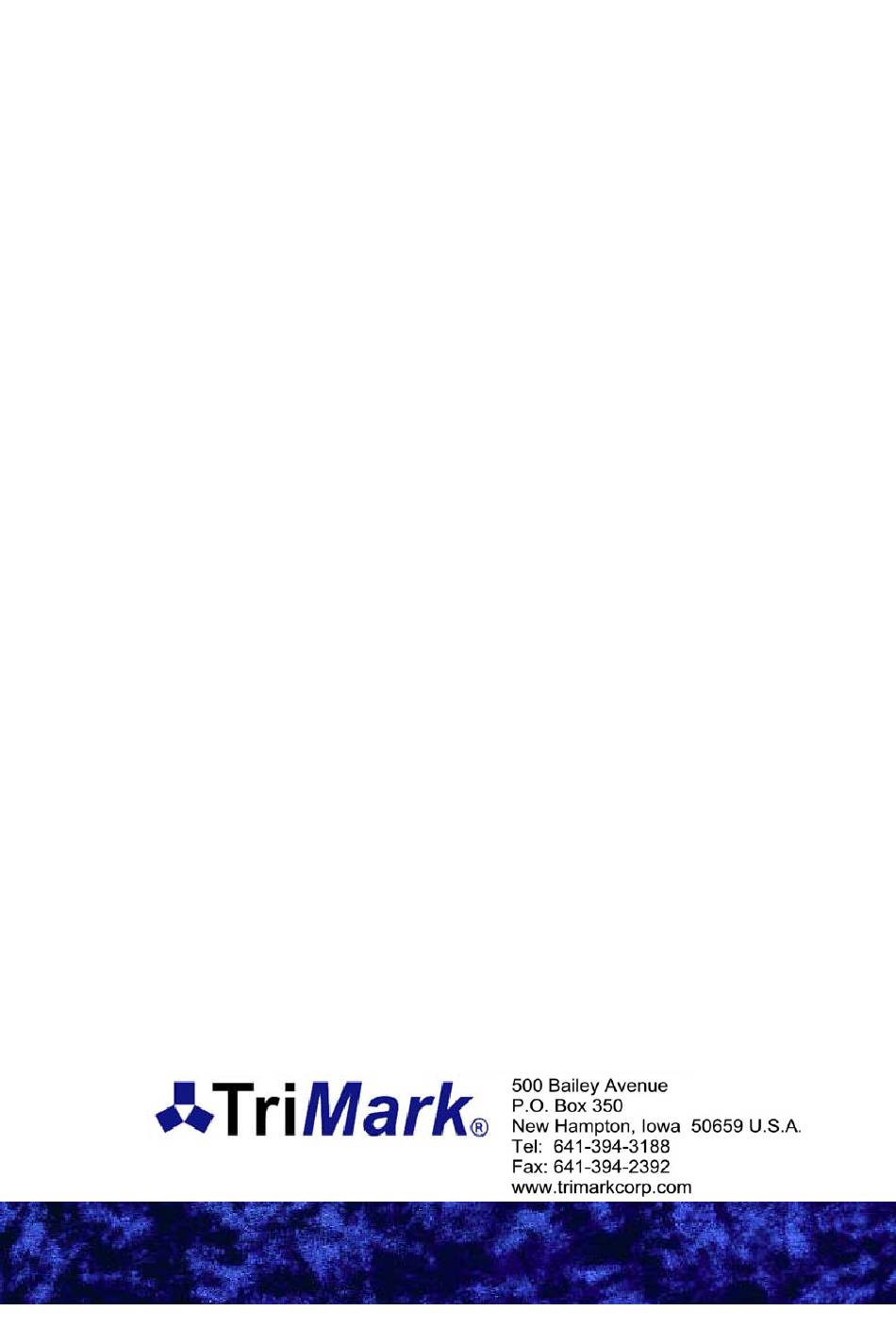

  • Page 12 UM10 21067-01 03/06-2...
