TriMark e-ASK Consumers Manual

Standard multiplex system
Hide thumbs Also See for e-ASK:
Table of Contents

Advertisement

Quick Links

Download this manual
e-ASK
A
S
K
e
lectronic
ccess
ecurity
eyless-entry
Standard Multiplex System
Standard Multiplex System
Consumer Manual
(UM13 ~ 22272-01)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-ASK and is the answer not in the manual?

Questions and answers

Related Manuals for TriMark e-ASK

Summary of Contents for TriMark e-ASK

  • Page 1 Standard Multiplex System Standard Multiplex System Consumer Manual (UM13 ~ 22272-01)

  • Page 2: Table Of Contents

    Table of Contents Introduction .................. 1 e-FOB Operation and Features ........... 2 Non-doorbell e-PAD Operation and Features ......3 Doorbell e-PAD Operation and Features ........3 Locking Doors with Keypad ............4 Secure Operations ..............4 Doorbell ..................4 e-PAD Configurations ............... 4 Optional Features ................

  • Page 3: Introduction

    Introduction This manual provides the necessary information for the proper use of TriMark’s e-ASK system. Note: Some features discussed in this manual may not be available on your system. Included with this system are the following components: • e-FOB (keyless entry radio frequency [RF] remote FOB transmitter and receiver) •...

  • Page 4: E-Fob Operation And Features

    e-FOB Operation and Features Lock button Horn button button Unlock button The FOB transmitter and receiver are shipped programmed. When the OEM has installed your e-FOB system, it will function as indicated below. Button Function Lock Locks doors and arms security system. Unlocks doors and disarms security system.

  • Page 5: Non-Doorbell E-Pad Operation And Features

    Non-doorbell e-PAD Operation and Features The e-PAD is shipped with default authority and access codes. Unless the OEM or dealer has changed default codes, the authority and access codes are as follows: Access code: Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 1 / 2...

  • Page 6: Locking Doors With Keypad

    Locking Doors With Keypad Press and hold down the (1 / 2) or (1) button for 1-2 seconds. An access code is not needed to lock the doors. Secure Operations Entering a valid 5-digit access code enables secure operations. After entering an access code, the keypad is enabled for 5 seconds and a sixth button press initiates a secure operation, such as unlocking the doors.

  • Page 7: Optional Features

    Optional Features These features may not be available on your vehicle. e-PAD / e-FOB Dome/Porch Light Activation The dome/porch light is activated for a timed duration (5-60 seconds) whenever a keypad button is pressed or when system is unlocked from FOB transmitter or vehicle switch. Contact your dealer to adjust duration.

  • Page 8: Door Ajar Warning

    Door Ajar Warning A triple siren chirp sounds if any compartment or entry door is open when the entry and compartment doors are locked. If a door is open, the alarm is not armed. Panic Mode Pressing and holding the horn button of the e-FOB transmitter for 2 seconds activates panic mode.

  • Page 9: Button Activation

    Button Activation Aux 1 output is activated with button on FOB transmitter. Ask your dealer for the function assigned to this button and for adjustment of activation duration. Starting the engine deactivates the output. Automatic Locking and Unlocking The system may include auto-locking. When auto-locking is enabled, doors are locked 5 seconds after the engine is started.

  • Page 10: Teaching E-Pad New Access Codes

    Teaching e-PAD New Access Codes With an active authority code, additional access codes can be programmed with the following instructions: 1. Press the (5 / 6) button for 5 seconds the keypad will beep. The backlighting LED of the keypad will flash indicating the learn mode.

  • Page 11: Troubleshooting

    Troubleshooting Problem Description Possible Solution e-FOB Hints Verify power to the I/O module and RF receiver. Button press does not provide Re-teach the FOB transmitter to the correct operation receiver. Ensure that only Lock button is pressed while in learn mode. Mount RF receiver away from enclosed metal areas and fully extend antenna.
  • Page 12 Remote transmitter FOBs, batteries, and other equipment subject to normal wear and deterioration may need to be replaced periodically by dealer and/or end user and are not covered by this warranty. TriMark will not be liable for indirect, special, incidental or consequential...

  • Page 13: Appendix A: Available Keypad Configurations

    Appendix A: Available Keypad Configurations Non-doorbell Configuration A • Button (1 / 2): Unassigned • Button (3 / 4): Unlocks all entry and compartment doors • Button (5 / 6): Unassigned • Button (7 / 8): Toggles Aux 1 output •...

  • Page 14: Doorbell Configuration A

    Doorbell Configuration A • Button (1): Unassigned • Button (2): Unlocks all entry and compartment doors • Button (3): Unassigned • Button (4): Toggles Aux 1 output • Button (doorbell): Activates zone 6 unidirectional actuation Doorbell Configuration B • Button (1): Unlocks all entry door(s) •...
  • Page 15 Notes:...

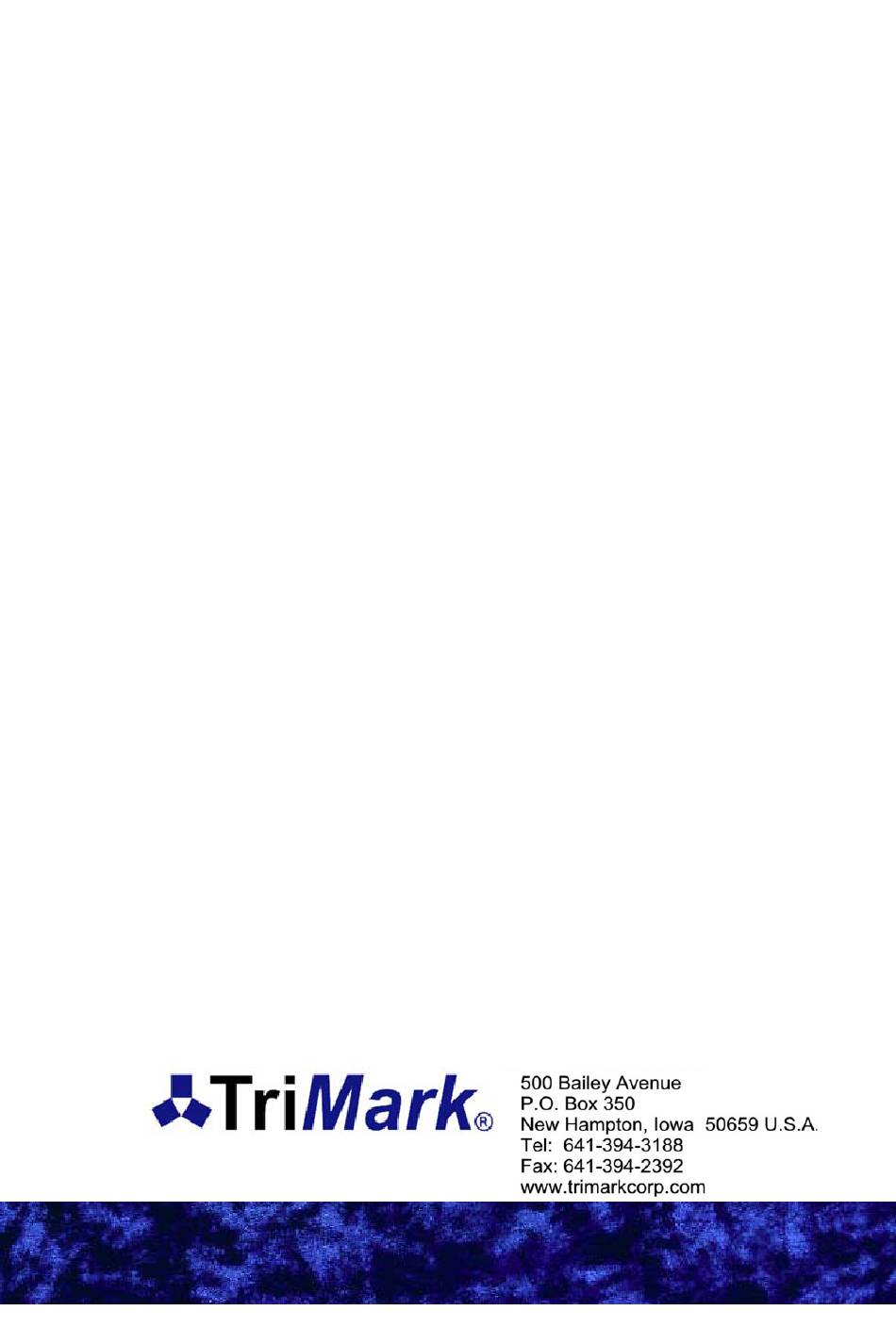

  • Page 16 UM13 22272-01 09/06-1...
