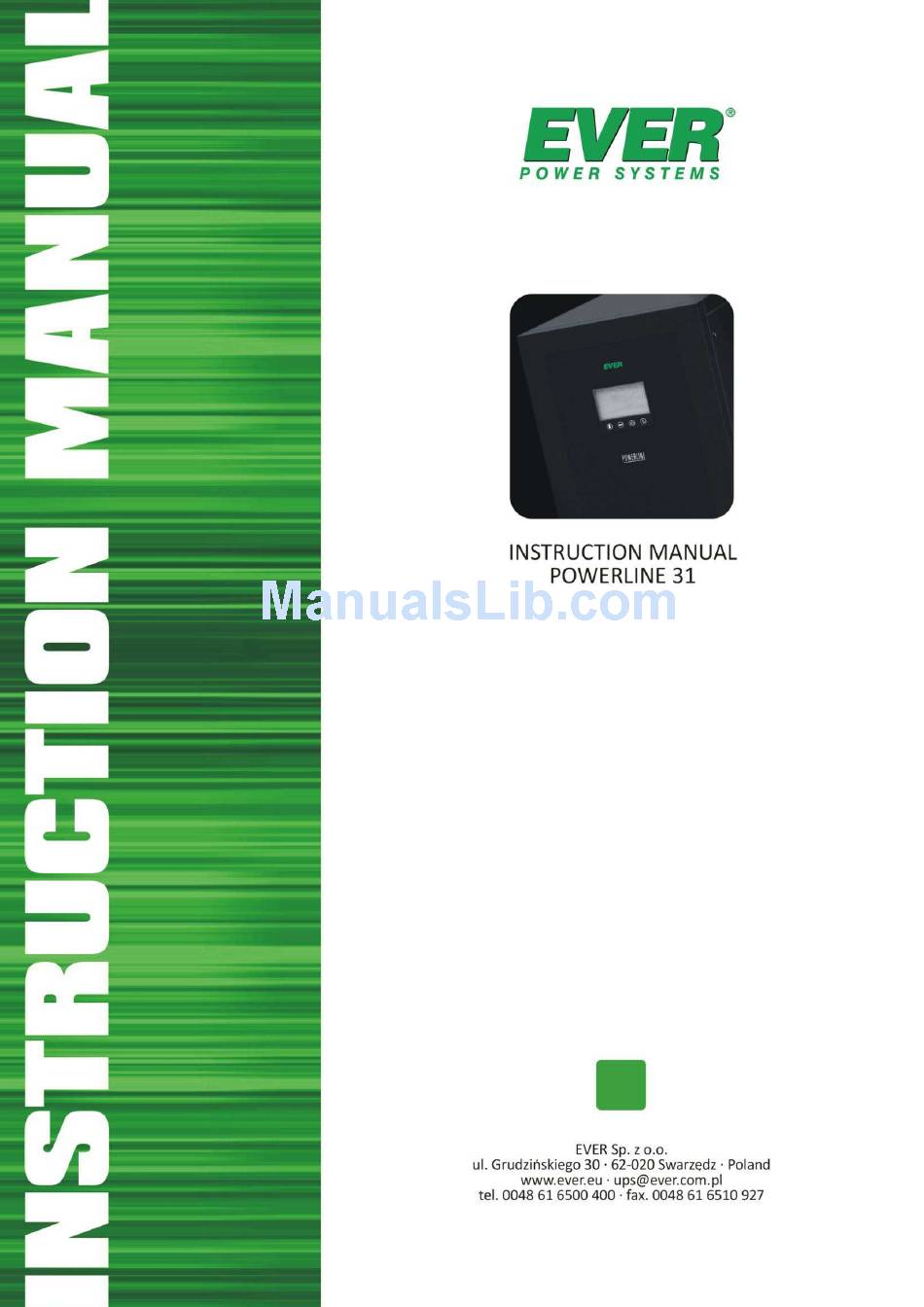

Instruction Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ever POWERLINE 31 series
Summary of Contents for Ever POWERLINE 31 series
-
Page 2: Table Of Contents
User Manual for POWERLINE 31 series power supply units TABLE OF CONTENTS TABLE OF CONTENTS .......................... 2 INTRODUCTION ............................. 3 GENERAL INFORMATION ........................3 INTENDED APPLICATION OF THE POWER SUPPLY UNIT ............3 GENERAL DESCRIPTION OF THE POWER SUPPLY UNIT............3 UPS STRUCTURE .......................... -
Page 3: Introduction
User Manual for POWERLINE 31 series power supply units INTRODUCTION Thank you for purchasing the EVER POWERLINE power supply unit. It is the latest series of a state-of-the-art power supply units that are dedicated to servers, computer networks and data processing systems. -
Page 4: Ups Structure
User Manual for POWERLINE 31 series power supply units which significantly extends battery life. A microprocessor control system (DSP) ensures precision and reliability of the entire power supply system. An automated bypass system increases the overall system security. In the event of inverter failure, the current from the mains is provided directly to the load. - Page 5 User Manual for POWERLINE 31 series power supply units Display Description Input* Input voltage value Input voltage frequency Indicates excessively high input voltage; not displayed if the voltage is regular Indicates excessively low input voltage; not displayed if the voltage is...
-
Page 6: Back Panel
User Manual for POWERLINE 31 series power supply units BACK PANEL Back panel view for POWERLINE 10-31 and POWERLINE 15-31/20-31 power supply units 1 - Wire holders 2 - Power network and receiving terminal panel shield 3 - Input protection... -
Page 7: Industrial Work Safety Instructions
User Manual for POWERLINE 31 series power supply units INDUSTRIAL WORK SAFETY INSTRUCTIONS TRANSPORT • Due to the considerable weight of the device, it is necessary to exercise particular care when transporting it; • The UPS units must be transported in a vertical position;... -
Page 8: Electrical Safety
User Manual for POWERLINE 31 series power supply units ELECTRICAL SAFETY • it is forbidden to work on your own under conditions constituting a threat to life and/or health; • in the event of a brief short-circuit, the high current may cause serious burns;... -
Page 9: Installation
User Manual for POWERLINE 31 series power supply units NOTE! The UPS is completely disconnected from the power network only when the power supply cord is disconnected. NOTE! The device is equipped with a power source (external batteries). The device’s output may be live, even if the mains is disconnected from the network. -
Page 10: Assembly
User Manual for POWERLINE 31 series power supply units Check the contents of the packaging. The packaging should contain the following: • power supply unit, • 1 RS 232 communication cable, • user manual, • warranty card. ASSEMBLY • When selecting the place of installation, consider the weight of the device:... -
Page 11: Connecting The Ups
User Manual for POWERLINE 31 series power supply units CONNECTING THE UPS The connected load must meet the requirements on the wire sizes and the protection systems installed (the table of technical parameters). NOTE! The UPS should be connected by qualified and authorised personnel only. -
Page 12: First Start-Up
User Manual for POWERLINE 31 series power supply units POWERLINE 15-31 and POWERLINE 20-31 power supply units 1 - Power supply line PE protection wire 7 - Battery negative terminal 2 - Power supply line neutral N wire 8 - Output line phase L wire... -
Page 13: Description Of The Operation Of The Power Supply Unit
User Manual for POWERLINE 31 series power supply units DESCRIPTION OF THE OPERATION OF THE POWER SUPPLY UNIT GENERAL INFORMATION POWERLINE UPS is a state-of-the-art electronic device forming an autonomous sinusoidal voltage source of 230 V. This device is from the group of uninterrupted power supply units of ONLINE class characterised by continuous processing. -
Page 14: Bypass Mode (Mode "01")
User Manual for POWERLINE 31 series power supply units The display presents information on the battery charge status and input parameters (the value and frequency of input voltage). The UPS does not supply voltage to the output. BYPASS MODE (“01” MODE) -
Page 15: Backup (Battery) Mode (Mode "03")
User Manual for POWERLINE 31 series power supply units After connecting the UPS to the mains, the output voltage is generated. Power is supplied to the output by an internal BYPASS system. When the device is connected to the mains, the UPS batteries are also charged. The UPS is activated only after the “ON”... -
Page 16: Service Bypass Mode
User Manual for POWERLINE 31 series power supply units SERVICE BYPASS MODE This mode enables UPS service without the necessity to disconnect the power supply from the receivers connected to the UPS output. NOTE! In the service BYPASS mode, receivers powered from the UPS output are not protected against voltage decays in the power supply line. -
Page 17: Protection
User Manual for POWERLINE 31 series power supply units Table 1 Code Unit operational status Signals Overload in mains mode; the A double sound signal every 1 second. UPS is in BYPASS mode Overload in mains mode; the A double sound signal every 1 second. -
Page 18: Epo
User Manual for POWERLINE 31 series power supply units EPO (Emergency Power Off) is a mechanism that cuts off the energy supply to the receivers at the UPS output in extreme situations (e.g. a fire). The mechanism may be activated by short-circuiting the pins of the external EPO connector (trip). -
Page 19: Work With Computers
User Manual for POWERLINE 31 series power supply units WORK WITH COMPUTERS RS 232 COMMUNICATION POWERLINE series units are equipped with extended management functions. There is an RS 232 communication port or an optional Ethernet port (for UPS units with the SNMP card). -
Page 20: Powersoft Personal Software Installation And Configuration
UPS for the same computer); To install PowerSoft with Windows (a list of operating systems verified for compatibility with the software is available at www.ever.eu), simply launch the software installer and then follow the instructions. When installing, choose the UPS model that is connected to the computer running the software. -
Page 21: Linus/Unix
User Manual for POWERLINE 31 series power supply units INUS The binary version for Linux/Unix is provided in the following forms: CentOS, RedHat, Suse Linux, and Fedora Core For systems: CentOS, RedHat, Suse Linux, and Fedora Core, the software is supplied as an RPM package. -
Page 22: Software Update
Linux/Unix PowerSoft for Linux/Unix can be updated using new versions available at www.ever.eu. In case of CentOS, RedHat, Suse Linux, and Fedora Core, the update can be executed by typing: rpm –Uv powersoftlite-x.x.x In Debian and FreeBSD, it is recommended to uninstall the older version and then install the new one. -
Page 23: Comments On Operation
User Manual for POWERLINE 31 series power supply units COMMENTS ON OPERATION NOTE! This product is intended for commercial and industrial use in the second environment. To prevent interference emissions, it may be necessary to apply additional measures of prevention or the limitation of the system. -
Page 24: Storage, Maintenance, And Transport
The UPS should be transported in its original packaging, under conditions concordant with those set forward in the product specification (cf. the table with technical parameters). EVER Sp. z o.o. shall not be liable for mechanical damage arising during the transport of the appliance without its original or incomplete packaging. -
Page 25: Technical Parameters
User Manual for POWERLINE 31 series power supply units TECHNICAL PARAMETERS INSTALLATION GUIDELINES Parameter/UPS POWERLINE 10-31 POWERLINE 15-31 POWERLINE 20-31 Apparent/active power 10 kVA/7 kW 15 kVA/10.5 kW 20 kVA/14 kW Power supply parameters Supply system topology 3P5W 3P5W 3P5W... -
Page 26: Technical Data
User Manual for POWERLINE 31 series power supply units TECHNICAL DATA PARAMETERS/UPS TYPE POWERLINE 10-31 POWERLINE 15-31 POWERLINE 20-31 Output power 10 kVA/7 kW 15 kVA/10.5 kW 20 kVA/14 kW Work environment office or industrial rooms with a low level of contamination Operating temperature 0 ÷... -
Page 27: Diagnostic Operations For Errors Reported By The Ups
User Manual for POWERLINE 31 series power supply units DIAGNOSTIC OPERATIONS FOR ERRORS REPORTED BY THE UPS Problem Possible cause Solution The unit switched to an error Make sure that the unit is not overloaded, the fans are not blocked, Error code “08”,continuous... -
Page 28: Legal Regulations And The Guarantee
EVER Sp. z o.o. does not provide any guarantees or warranties, including the guarantees of fitness for sale or for any specific purpose, other than what is set out in the guarantee card.
