I N S T A L L A T I O N I N S T R U C T I O N S
PSMO2085
[Landscape example]
PSMO2085
[Portrait example]
Outdoor Large Flat Panel Static Wall Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PSMO2085
Advertisement
Table of Contents
Related Manuals for CHIEF PSMO2085
Summary of Contents for CHIEF PSMO2085

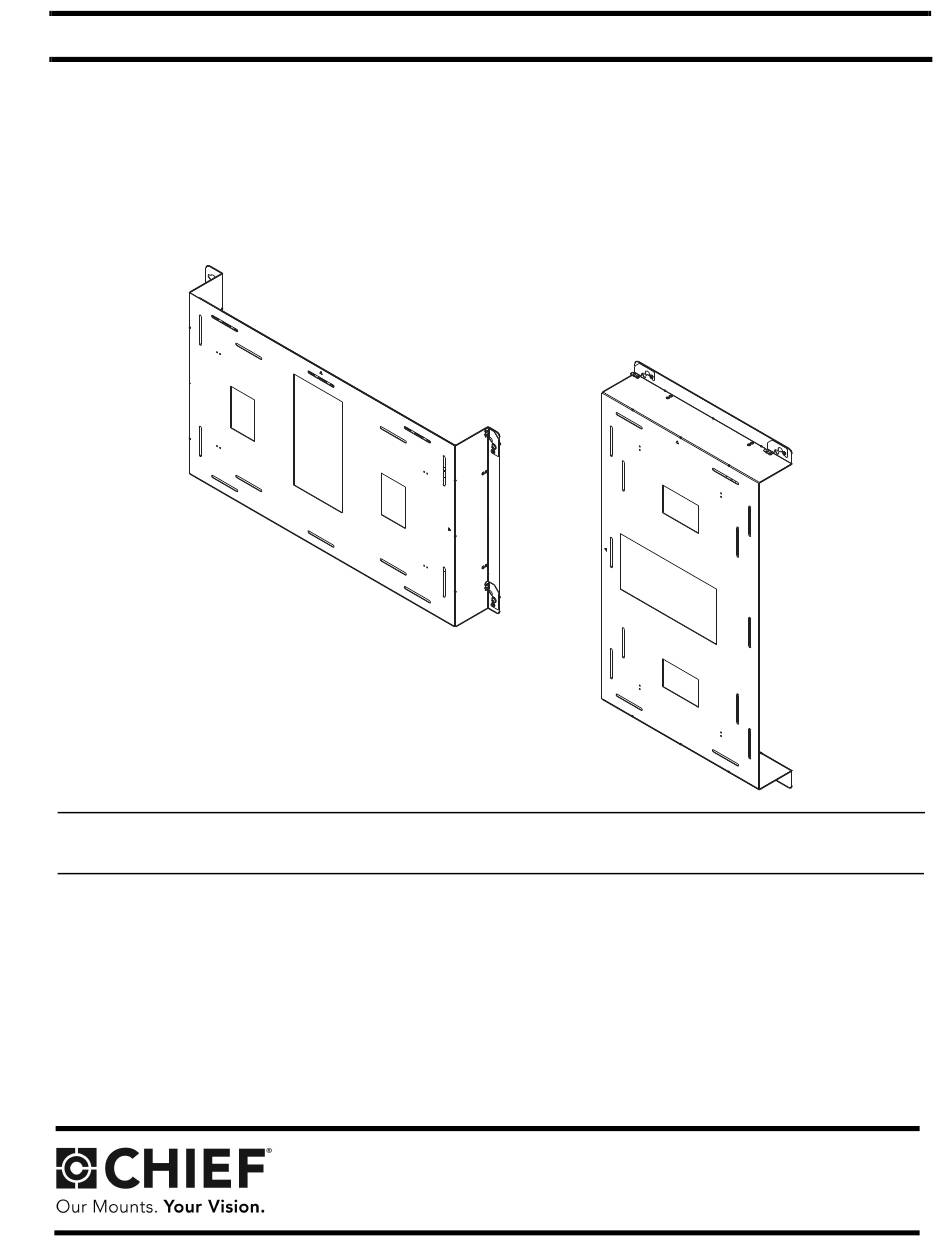

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S PSMO2085 [Landscape example] PSMO2085 [Portrait example] Outdoor Large Flat Panel Static Wall Mount Spanish Product Description...
-
Page 2: Important Safety Instructions
AN ACCESSORY is the secondary Chief of 5/8"; or product which is attached to a primary Chief product, and may have a component attached or setting on it. • bare 8" thick solid concrete or 8"x8"x16" concrete block wall. -
Page 3: Landscape Orientation
Installation Instructions PSMO2085 DIMENSIONS LANDSCAPE ORIENTATION PORTRAIT ORIENTATION PORTRAIT ORIENTATION SET-UP DIMENSIONS: INCHES [MILLIMETERS]... -
Page 4: Installation Instructions
PSMO2085 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación... -
Page 5: Tools Required For Installation
3/8" (concrete) 7/32" (wood) PARTS Hardware required - not included (For concrete installations only) Fischer UX10x60R Anchors (Qty 4 or 6 each) B (1) [PSMO2085 strut channel] A (1) [Wall mount] C (1) E (4) M8 x 25 [Quantities per kit]... -
Page 6: Assembly And Installation
Attaching PSMO2085 to Wall Place mounting system against wall in desired installation location. PORTRAIT Level and adjust PSMO2085 making certain slots at upper and lower edges are properly positioned over studs for either a 16" on-center wood studs installation (landscape or Figure 2 portrait) or a 24"... -
Page 7: Display Installation
(See Figure 6) Figure 3 Use one 5/16" x 3-1/2" hex head lag bolt (G) through one 5/16" washer (F), the strut channel (B) [landscape installation ONLY], the PSMO2085 and into pilot hole. (See Figure 4) OPEN Repeat for remaining pilot hole(s). - Page 8 PSMO2085 Installation Instructions Lift display following lifting instructions provided by display manufacturer. Align mounting buttons on display with teardrop mounting holes in mount. (See Figure 7) Move display forward until recessed area of mounting buttons is positioned over lower area of teardrop mounting OPEN holes.
- Page 9 Installation Instructions PSMO2085...
- Page 10 PSMO2085 Installation Instructions...
- Page 11 Installation Instructions PSMO2085...
- Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
