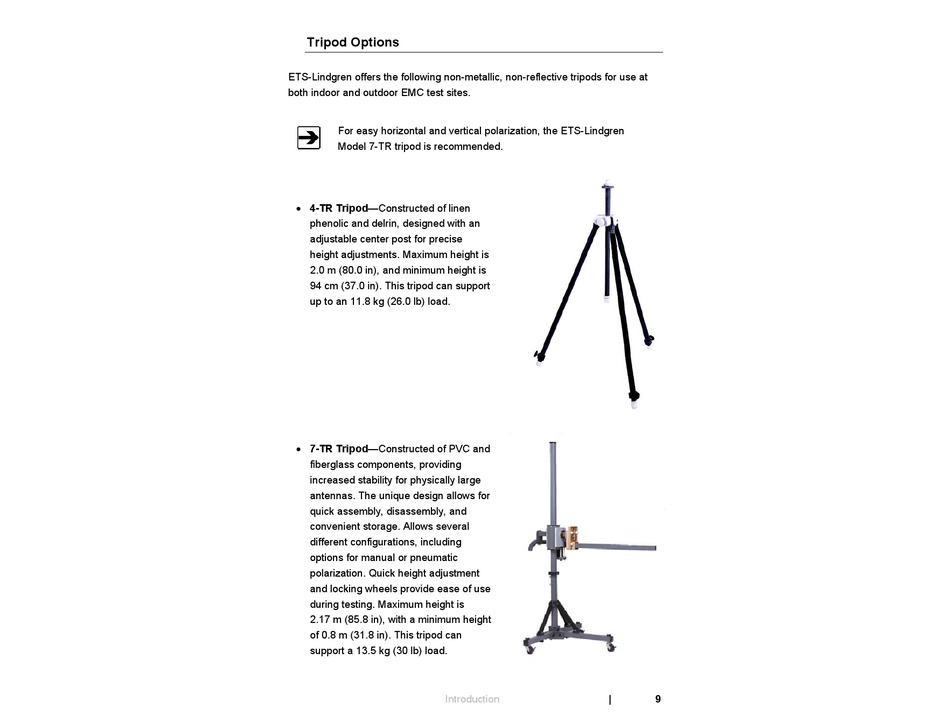

Tripod Options

ETS-Lindgren offers the following non-metallic, non-reflective tripods for use at
both indoor and outdoor EMC test sites.
For easy horizontal and vertical polarization, the ETS-Lindgren
Model 7-TR tripod is recommended.
 4-TR Tripod—Constructed of linen
phenolic and delrin, designed with an
adjustable center post for precise
height adjustments. Maximum height is
2.0 m (80.0 in), and minimum height is
94 cm (37.0 in). This tripod can support
up to an 11.8 kg (26.0 lb) load.
 7-TR Tripod—Constructed of PVC and
fiberglass components, providing
increased stability for physically large
antennas. The unique design allows for
quick assembly, disassembly, and
convenient storage. Allows several
different configurations, including
options for manual or pneumatic
polarization. Quick height adjustment
and locking wheels provide ease of use
during testing. Maximum height is
2.17 m (85.8 in), with a minimum height
of 0.8 m (31.8 in). This tripod can
support a 13.5 kg (30 lb) load.
