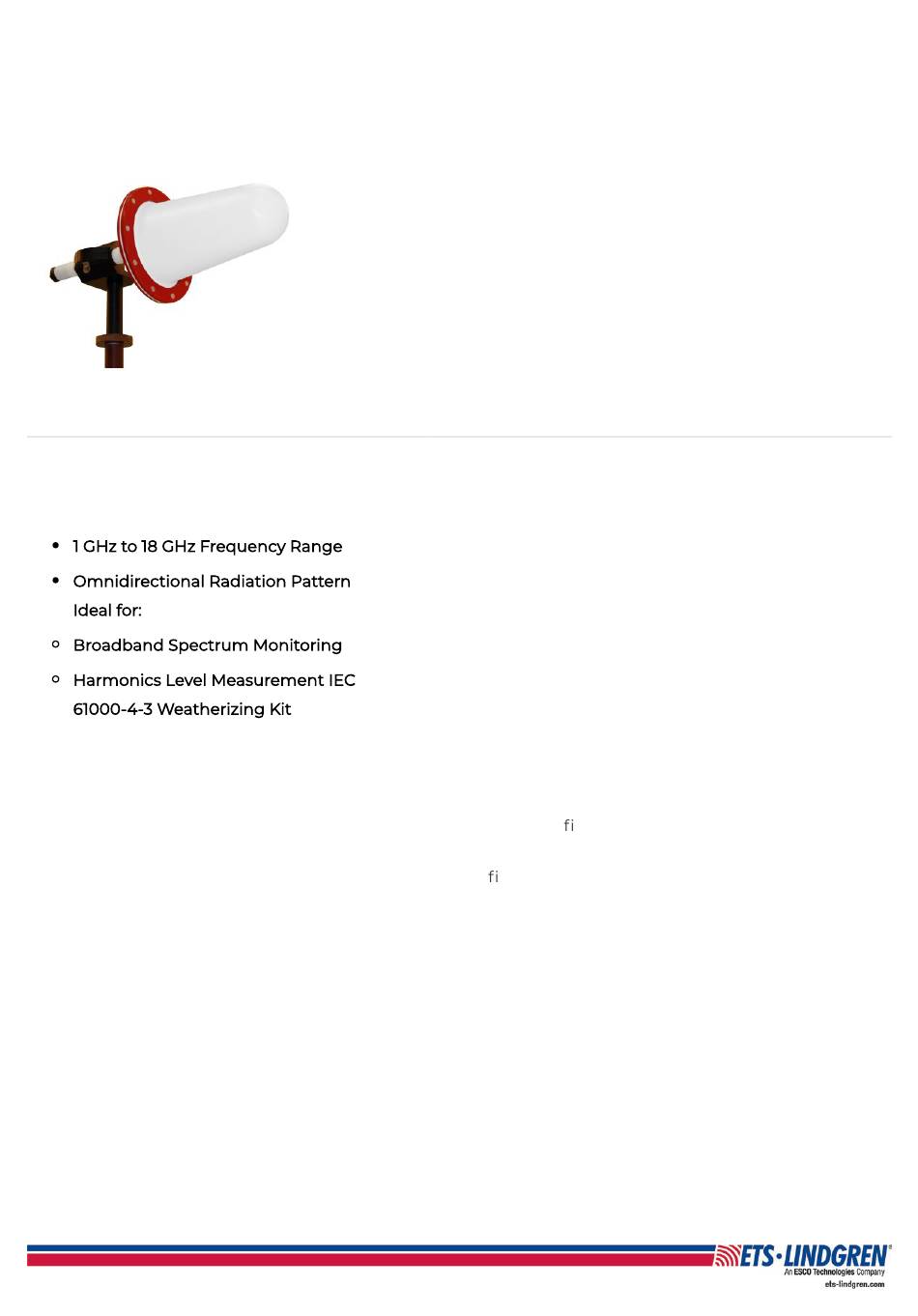

4/8/2019
BROADBAND MIN-BICON ANTENNAS
ETS-Lindgren's Model 3184 Broadband Mini-Bicon Antenna is a radome-protected,
broadband antenna.
Key Features
1 GHz to 18 GHz Frequency Range
1 GHz to 18 GHz Frequency Range
Omnidirectional Radiation Pattern
Omnidirectional Radiation Pattern
Ideal for:
Ideal for:
Broadband Spectrum Monitoring
Broadband Spectrum Monitoring
Harmonics Level Measurement IEC
Harmonics Level Measurement IEC
61000-4-3 Weatherizing Kit
61000-4-3 Weatherizing Kit
http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504

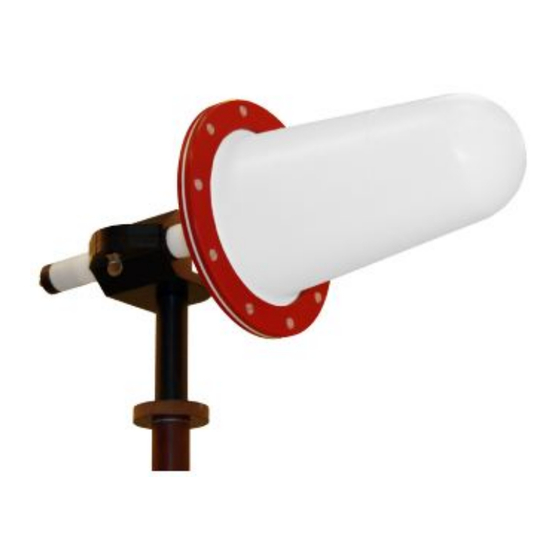

3184 Broadband Mini-Bicon Antenna
3184 Broadband Mini-Bicon Antenna
ETS-Lindgren's Model 3184 Broadband Mini-Bicon Antenna is
a radome-protected, broadband antenna with a frequency
range of 1 GHz to 18 GHz. Its omnidirectional pattern and
broadband frequency range make it ideal for surveying or
spectrum monitoring, when used with a portable spectrum
analyzer.
A weatherizing kit is standard on the model 3184 for
prolonged outdoor monitoring.

Features

Frequency Range
The model 3184 is designed to have the lowest
possible VSWR across its range of operation. The
antenna exhibits an average 2:1 VSWR.
Radiation Pattern
The radiation pattern of the model 3184 is
omnidirectional in the H-plane. This means the
antenna can receive signals from every direction
around its axis.
Spectrum Monitoring
The model 3184 can be used for EM Field surveying
and spectrum monitoring. The low weight design
allows use as a eld surveying tool, in conjunction with
a portable spectrum analyzer.IEC-61000-4-3 Because
of its small size, the antenna can also be used for
ampli er harmonic measurements per the IEC 61000-
4-3 Radiated Immunity Test.
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3184 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETS-Lindgren 3184

  • Page 1 1 GHz to 18 GHz. Its omnidirectional pattern and broadband frequency range make it ideal for surveying or spectrum monitoring, when used with a portable spectrum analyzer. A weatherizing kit is standard on the model 3184 for prolonged outdoor monitoring. Key Features Features Frequency Range ...
  • Page 2 4/8/2019 3184 Broadband Mini-Bicon Antenna Speci cations Electrical Speci cations Frequency Minimum: Frequency Minimum: 1 GHz Frequency Maximum: Frequency Maximum: 18 GHz VSWR Ratio (Average): VSWR Ratio (Average): 2:1 Maximum Continuous Power: Maximum Continuous Power: 50 watts @ 1 GHz; 25 watts @ 18 GHz Impedance (Nominal): Impedance (Nominal): 50 Ω...
  • Page 3 4/8/2019 3184 Broadband Mini-Bicon Antenna Product Charts http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504...
  • Page 4 4/8/2019 3184 Broadband Mini-Bicon Antenna http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504...
  • Page 5 4/8/2019 3184 Broadband Mini-Bicon Antenna http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504...
  • Page 6 4/8/2019 3184 Broadband Mini-Bicon Antenna http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504...
  • Page 7 4/8/2019 3184 Broadband Mini-Bicon Antenna http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504...
  • Page 8 4/8/2019 3184 Broadband Mini-Bicon Antenna http://www.ets-lindgren.com/datasheet/antennas/broadband-min-bicon-antennas/4005/400504...
