Bolt and Spring
Assembly (4)
7. Separate the upper and lower halves of the scrubber housing.
8. Remove the carbon filter for the scrubber housing along with the gaskets and aluminum seal plate
6.13).
9. Install the seal plates and gaskets. Replace if damaged. Reinstall the new filter, making sure the gasket and
seal plate are in the proper position. The side of the seal plate with the X must be installed towards the gas-
ket (Figure 6.14).

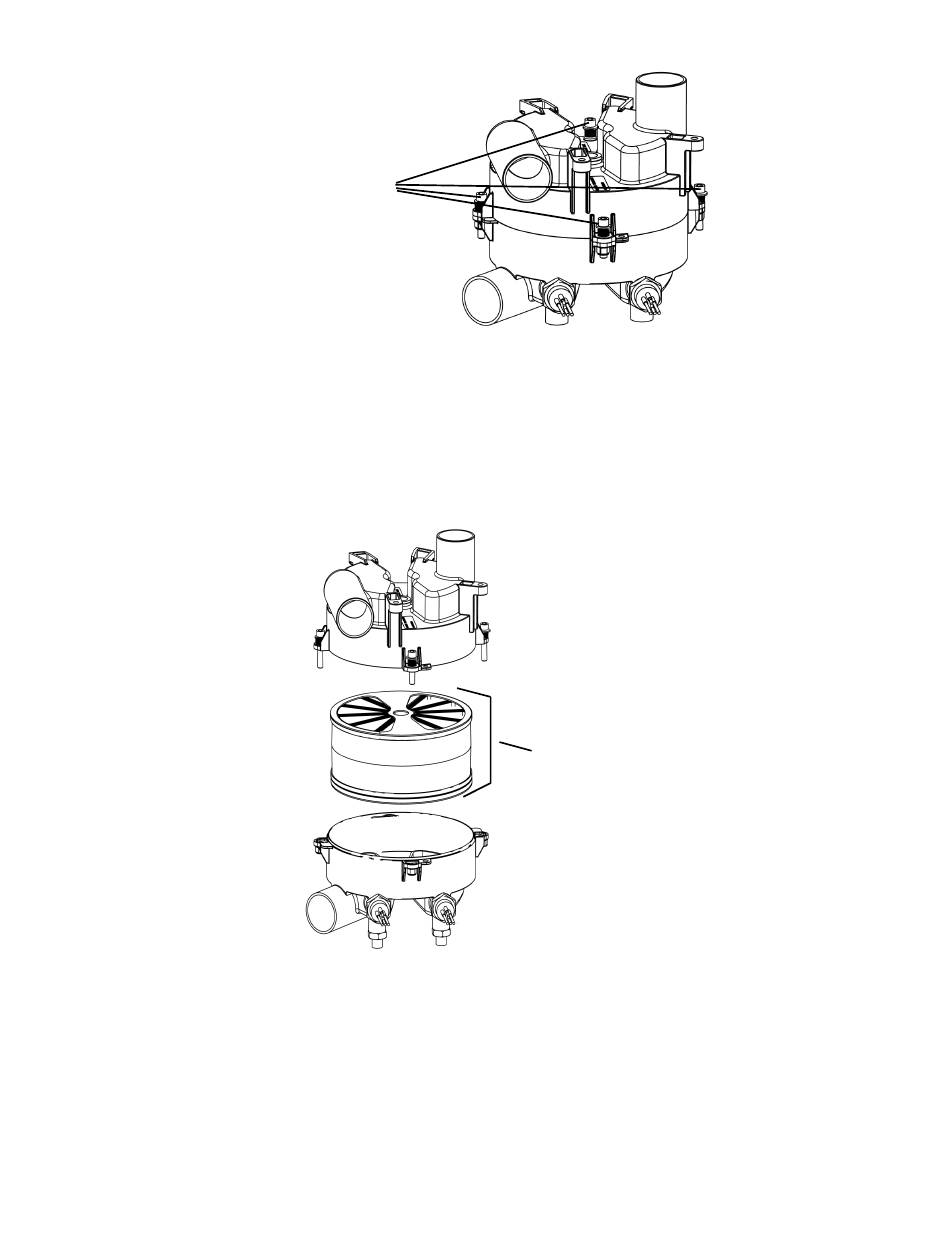

Figure 6.12 Scrubber Bolt/Spring Assemblies

Figure 6.13 Scrubber Separated with Filter

6–9
Carbon Filter with
Gaskets and
Aluminum Seal Plate
(Figure
T-366
