XtendFRESH™
The XtendFRESH™ atmosphere control system is a
modular option that offers enhanced functionality
to help slow the ripening process of perishable
cargo by removing ethylene and simultaneously
controlling CO and O levels in multiple combina-
2 2
tions. This enables the fresh transport of perisha-
bles on longer voyages. The system's ability to
control the container atmosphere is performed
with the use of a CO and ethylene scrubber. In
2
this article, we will review the key features and
operation of the system.
Starting the Refrigeration Unit
Caution: Check that the unit circuit breaker and start-
stop switch are in the OFF ("0") position before con-
necting to any electrical power source.
1. Check power source for proper voltage.
2. Connect the refrigeration unit power plug and turn
the main power ON.
3. Turn the refrigeration unit circuit breaker ON ("1").
4. Start the refrigeration unit by turning the start stop
(ST) to ON (position ("1").
Notes: Turn the start-stop (ST) switch OFF (position "0")
to stop the unit, also turn the unit circuit breaker OFF.
Recommend the latest operational software be installed
in the unit prior to troubleshooting.
Potential hazardous atmosphere and low oxygen levels
inside the container, ventilate before entering. Stay away
from doors while venting.
Refer to T-366 XtendFRESH Manual for a complete list

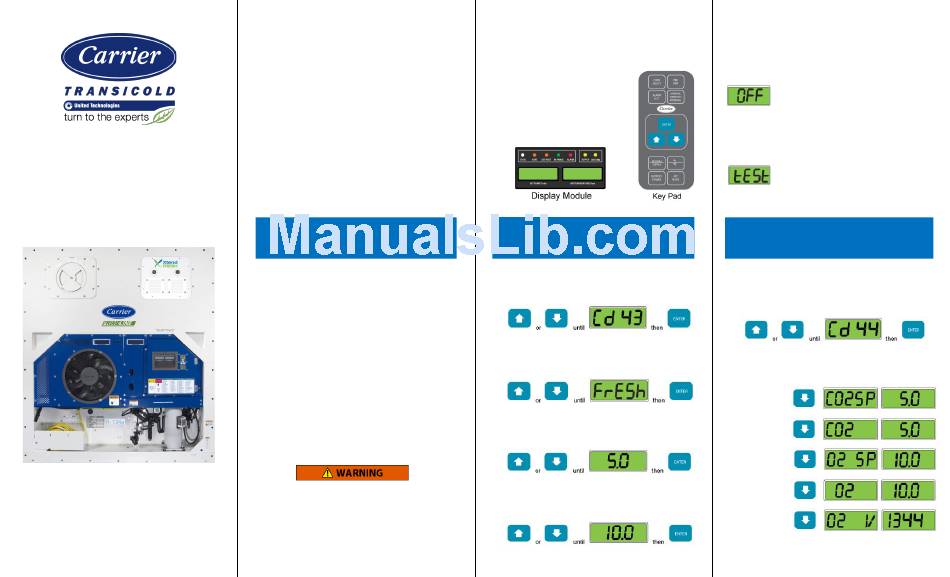

Operation of Keypad / Display
Once the refrigeration unit is oper-
ating, XtendFRESH operation is
available through the system key
pad located on the right side of the
unit and the display module will
show state.
Setup XtendFRESH Operation
and View CO and O Setpoints
2 2
1. Press the "CODE SELECT" key on the key pad.
2. Press the "UP" or "DOWN" arrow keys until "Cd 43"
is in the left display, then press "ENTER".
3. Press the "UP" or "DOWN" arrow keys to access the
sub
"FrESh" mode, then press "ENTER" to access
menu parameters.
4. With "CO2SP" in the left display, use the "UP" or
"DOWN" arrow keys to select the CO setpoint.
2
Then, press "ENTER".
5. With "O2 SP" in the left display, use the "UP" or
"DOWN" arrow keys to select the O2 setpoint. Then,
press "ENTER".
Operation of XtendFRESH
Other options available under Cd 43:
"OFF" mode will disable all XtendFRESH operations. The
XtendFRESH vents will be closed and the scrubber will re-
main off. This will be the default mode anytime a frozen
mode of operation is selected. Whenever a frozen setpoint
is selected, the current XtendFRESH setting will be saved.
"tEST" mode allows the operator to test system opera-
tion of the mechanical components.
View XtendFRESH CO and O
2 2
Values Inside Container
1. Press the "CODE SELECT" key on the key pad.
2. Press the "UP" or "DOWN" arrow keys until "Cd 44" is
in the left display, then press "ENTER". Code 44 allows
the user to view the CO and O concentration values.
2 2
3. Press the "DOWN" arrow key to toggle between the
different values available in this sub menu.
CO Setpoint
2
CO %
2
O Setpoint
2
O %
2
O Voltage
2
