Controller to Computer Connection

The Falcon XT™ must interfaced with a computer running the StorLogix™ software. This
interface can be via Ethernet, USB, or RS232. See "Drawing 4: Controller to Falcon XT computer
connection" on page 21.
• Ethernet allows high-speed connection over a Local or Wide Area (Internet) network
connection using standard CAT5 cable (up to 328 feet / 100 meters)
USB allows high speed communication, but only for distances under 16 feet (5
•
meters)
RS232 is slower, but allows distances up to 50 feet (15 meters).
•
For Router/Switch Ethernet connections (up to 328 feet):
1
Use two (2) Ethernet cables using CAT5 Twisted Pair Network cable. Connect the end of
one cable to the Ethernet port in the bottom right corner of the controller circuit board
2
Connect the other end of the cable to the router or network switch.
3
Connect one end of the second cable to the software computer.
4
Connect the other end of the cable to the router or network switch.
5
Power-up the router or network switch.
For USB connections (up to 16 feet):
1

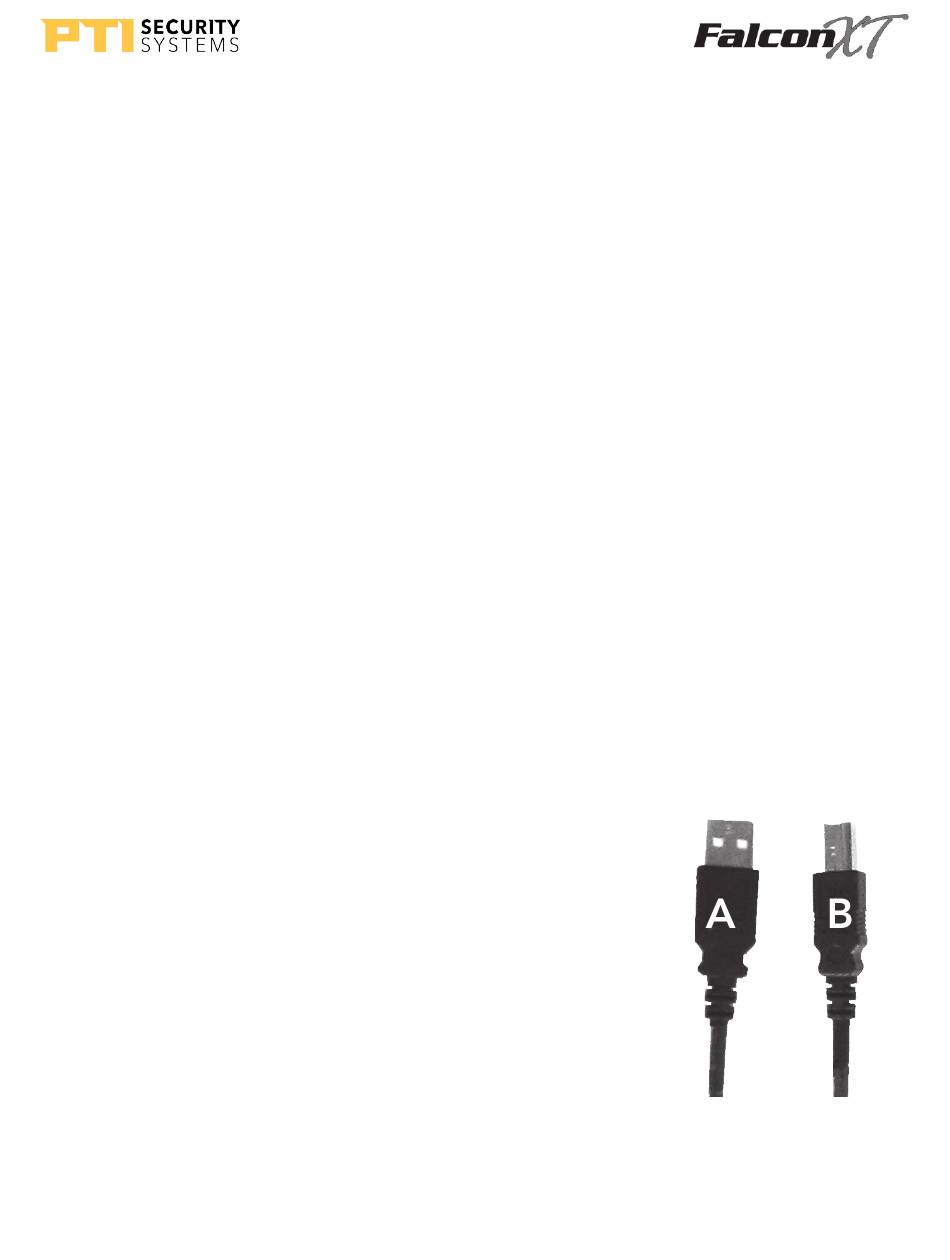

Use the USB cable provided with the controller. Connect the 'A'
end of the USB cable to a USB port located on the back of the
computer.
2
Run the USB cable through a knockout on the controller housing
to the control software computer.
3
Connect the 'B' end of the cable to the USB port located on the
bottom middle of the controller circuit board.
114A3866.D Revised 7-2017 19
