Unpacking the Falcon XT

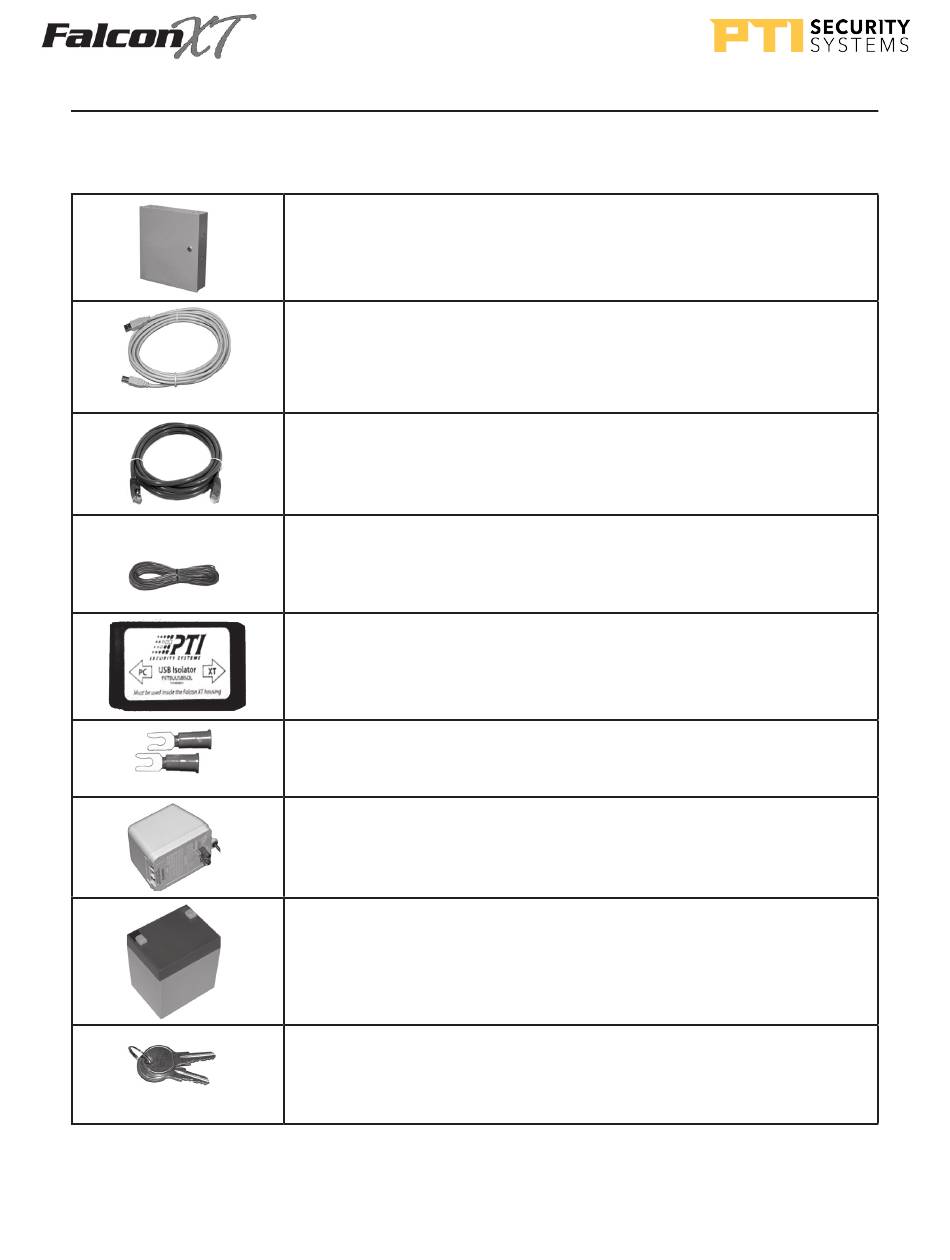

The following items should be contained in the Falcon XT box. Unpack the box and verify that all
items are present and ready for installation*.
* Images are for reference only and may not exactly represent what is supplied with the Falcon XT controller due to
changes in supply or manufacturing.
14
Falcon XT – The system controller
USB Cable – used to connect the Falcon XT to the StorLogix computer.
It is used for shorter distances (under 16 feet) between the controller
and the computer.
Ethernet Cable – Used for network connectivity between the Falcon
XT and the StorLogix computer. The cable connects the Falcon XT to
the network router or switch.
Power Cable – 15 feet, 18 AWG, 2-conductor cable used to connect
the Falcon XT to the transformer for power. This cable can be cut to
the required length
USB Isolator plus 12 inch USB cable — Provides an isolation barrier
between a computer and a connected USB device. The isolation
protects equipment from electrical surges and transient voltage
spikes
Spade Connectors – These connectors must be crimped onto one
end of the power cable to connect it to the transformer
Transformer – Connect to the power cable using the enclosed spade
connectors. The power cable is connected to the Falcon XT controller
then plugged into power at the wall outlet, UPS, or power strip.
Battery – Connected to the battery cables inside the Falcon XT and
used to power the Falcon XT during short power outages
Keys – Used to lock the Falcon XT box after installation and setup are
complete to prevent tampering
