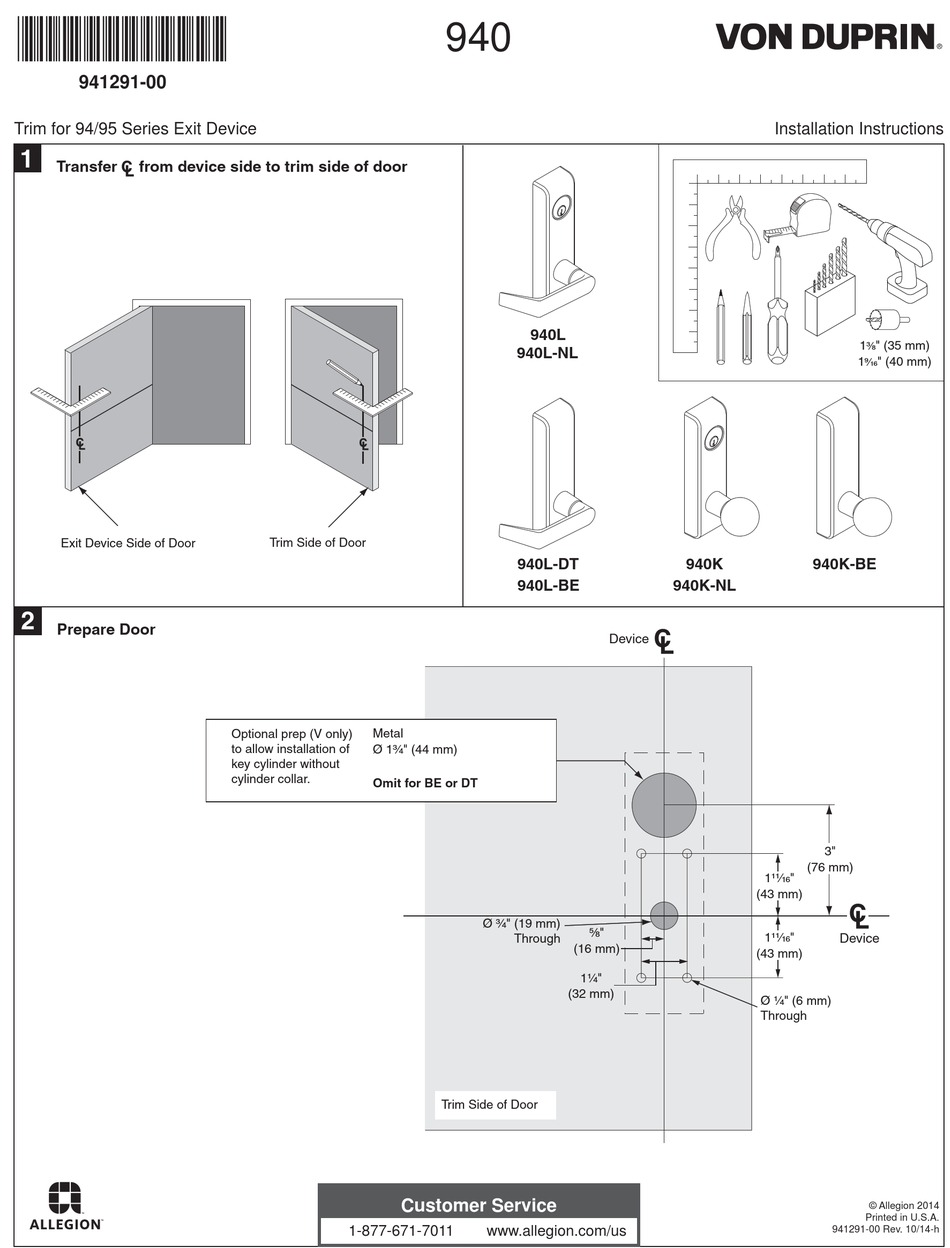

941291-00
Trim for 94/95 Series Exit Device
1
1
Transfer
from device side to trim side of door
Exit Device Side of Door
2
Prepare Door
Trim Side of Door
Metal
Optional prep (V only)
Ø 1³⁄₄" (44 mm)
to allow installation of
key cylinder without
cylinder collar.
Omit for BE or DT
Customer Service
1-877-671-7011

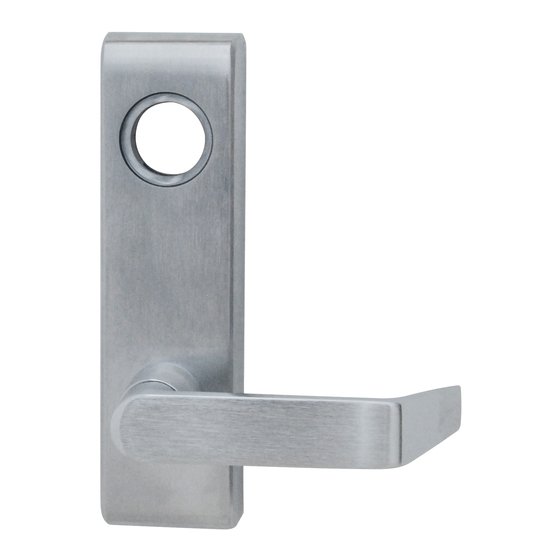

940
940L
940L-NL
940L-DT
940L-BE
Device
Ø ³⁄₄" (19 mm)
⁵⁄₈"
Through
(16 mm)
1¹⁄₄"
(32 mm)
Trim Side of Door
www.allegion.com/us
Installation Instructions
940K
940K-BE
940K-NL
3"
(76 mm)
1¹¹⁄₁₆"
(43 mm)
1¹¹⁄₁₆"
Device
(43 mm)
Ø ¹⁄₄" (6 mm)
Through
941291-00 Rev. 10/14-h
³⁄₈
1
" (35 mm)
⁹⁄₁₆
1
" (40 mm)
© Allegion 2014
Printed in U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Von Duprin 940L
Summary of Contents for Von Duprin 940L
- Page 1 941291-00 Trim for 94/95 Series Exit Device Installation Instructions Transfer from device side to trim side of door 940L ³⁄₈ " (35 mm) 940L-NL ⁹⁄₁₆ " (40 mm) Exit Device Side of Door Trim Side of Door 940L-DT 940K...
- Page 2 If Necessary, Rehand Trim Outside Loosen set screw Peg must sit between fork of tailpiece cam Outside 940L (shown) 940L-BE 940L-NL 940L-DT...
- Page 3 If Necessary, Install Tailpiece If Necessary, Install Cylinder cylinder collar To install key cylinder without cutting out door, cut locking tab at scribe " 1¹⁄₈ −1¹⁄₄ line. (29−32 mm) Set Handing Confirm exit device is in the neutral configuration (shown below). Return to Device Instructions Pan head machine screws (supplied with control)
- Page 4 940K-NL An NL Spring was included for optional field conversion to NL function. Remove Back Plate and Locking Plate Remove Locking Spring 940L Shown Remove and Discard Attach NL Spring to Reinstall Locking Plate Reinstall Back Plate Locking Plate NL Spring...
