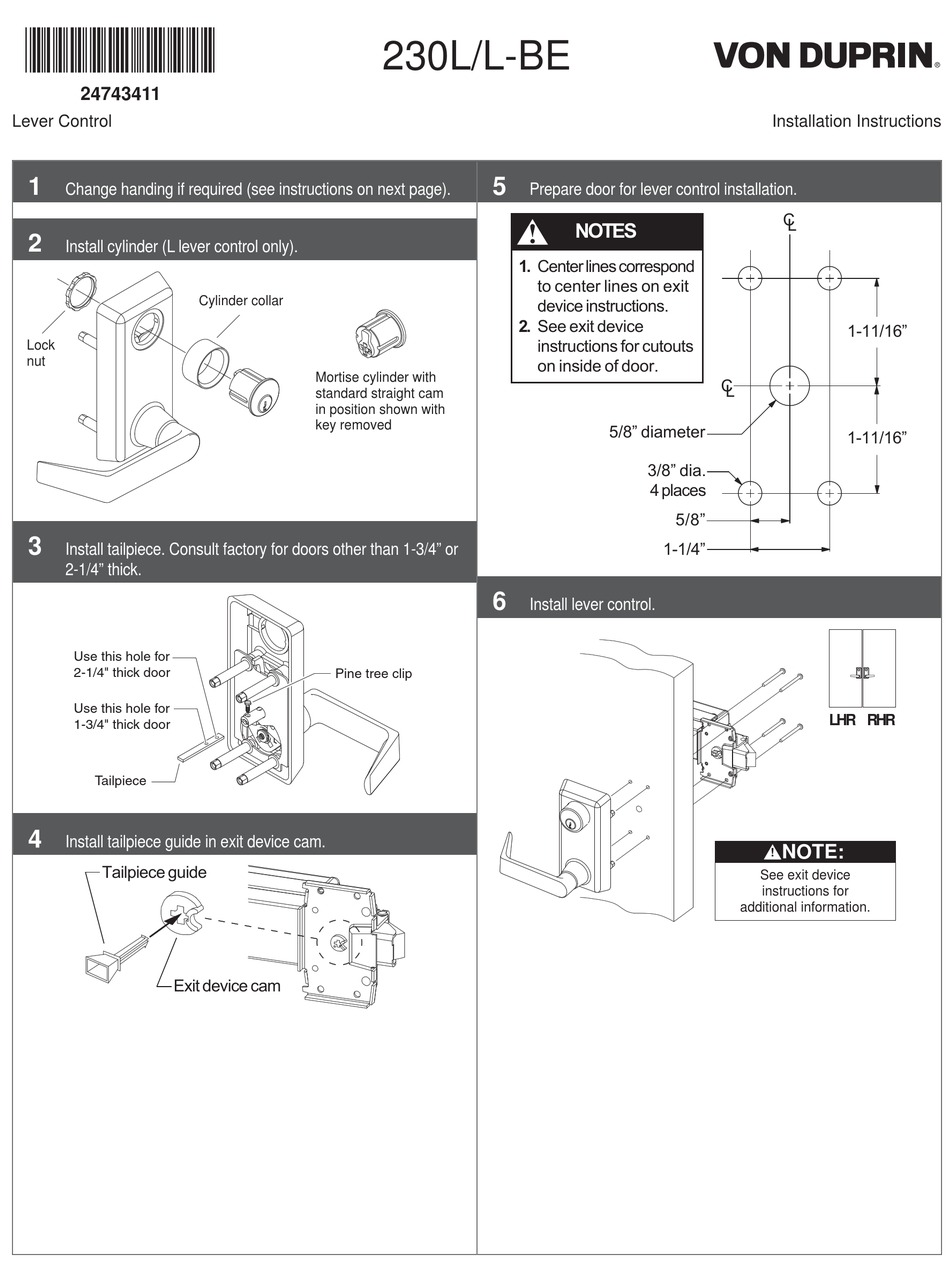

24743411

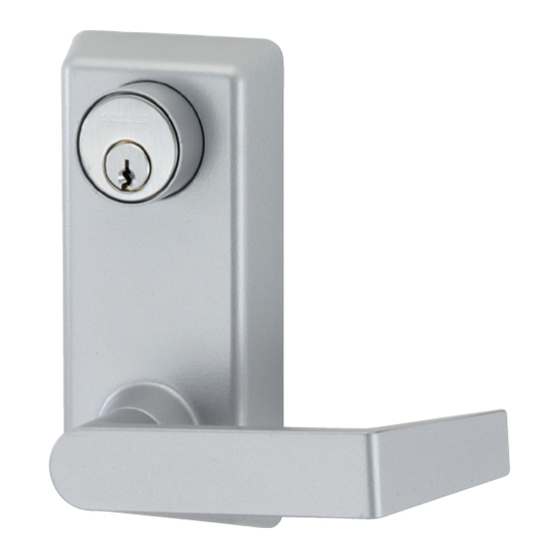

Lever Control
1
Change handing if required (see instructions on next page).
2
Install cylinder (L lever control only).
Lock
nut
3
Install tailpiece. Consult factory for doors other than 1-3/4" or
2-1/4" thick.
Use this hole for
2-1/4" thick door
Use this hole for
1-3/4" thick door
Tailpiece
4
Install tailpiece guide in exit device cam.
Tailpiece guide
Exit device cam
Cylinder collar
Mortise cylinder with
standard straight cam
in position shown with
key removed
Pine tree clip
230L/L-BE
5
Prepare door for lever control installation.
!
1. Center lines correspond
to center lines on exit
device instructions.
2. See exit device
instructions for cutouts
on inside of door.
6
Install lever control.
NOTES
C L
5/8" diameter
3/8" dia.
4 places
5/8"
1-1/4"
additional information.
Installation Instructions
C L
1-11/16"
1-11/16"
LHR RHR
NOTE:
!
See exit device
instructions for
