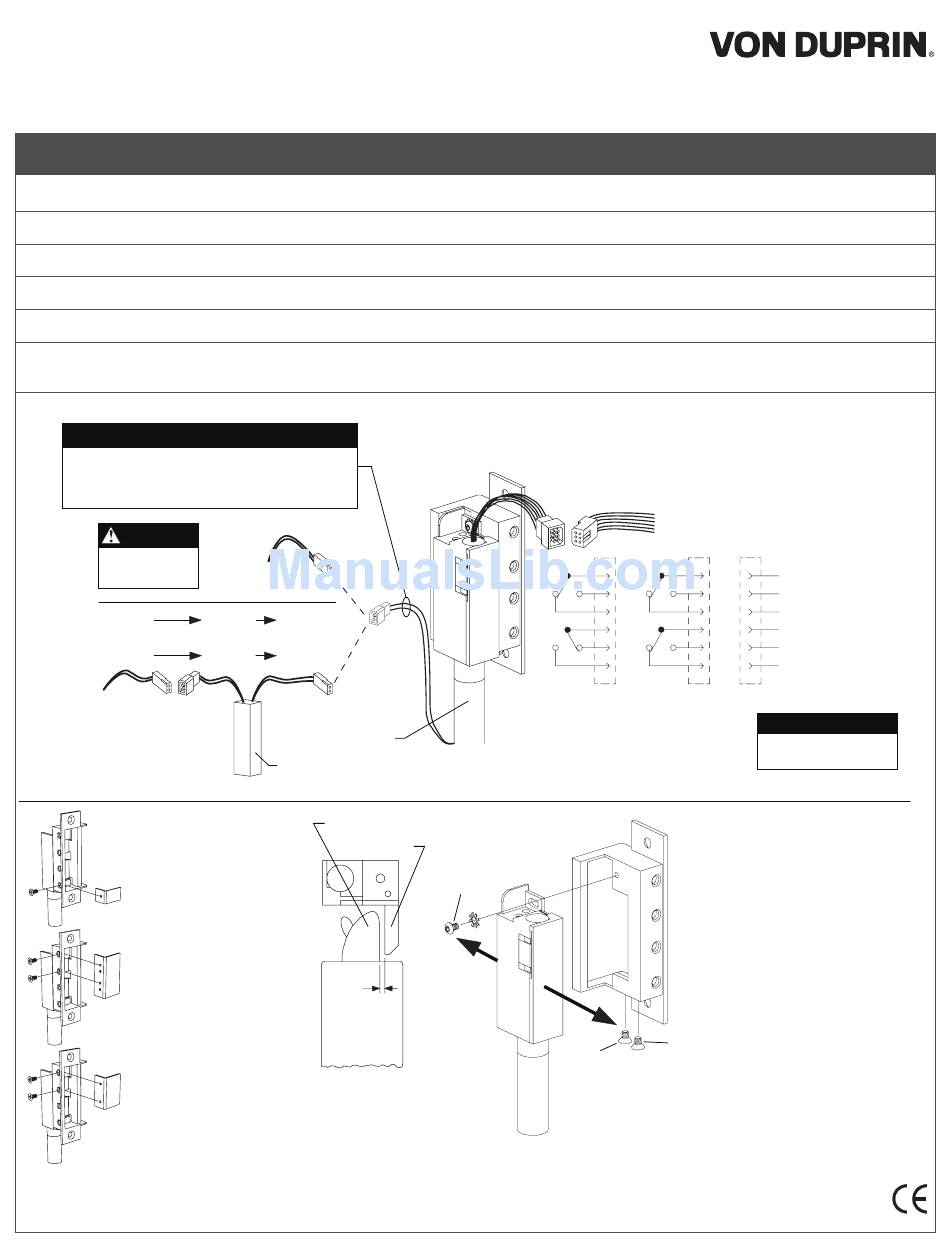

Von Duprin 6210 Installation Instructions

*931001-00*
931001-00

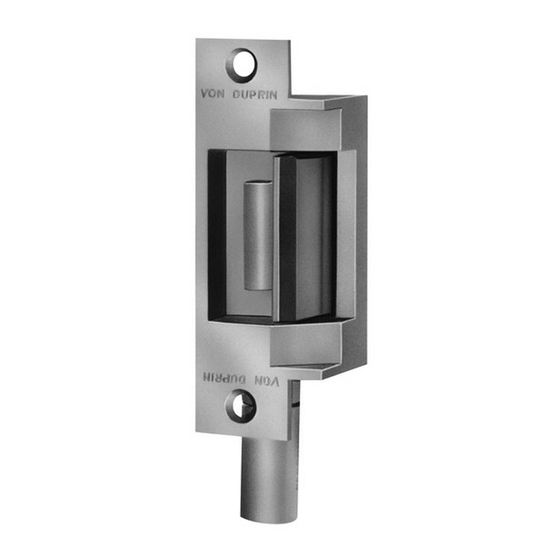

Electric Strike Single Door Mortise Application

Notes: Deadbolt will not function with this strike. Check with factory for retrofit applications.
1 For lock or device preparation, see their directions.
2 Prepare frame for strike (see other side).
3 Wire strike (Figure 1). (Switches on 6210DS only.)
4 Install insert for auxiliary bolt operation (Figure 2).
5 Test strike: Apply solenoid power. Fail secure (FSE) lip unlocks. Fail safe (FS) lip locks. Figure 1 shows status of switches.
6 Install strike with two #12-24 screws. Make sure clearance between latch bolt and strike lip is 1/32" (Figure 3). If not, uninstall strike, adjust (Figure 4),
and reinstall.
7 Test door: With strike unlocked, door opens with latch bolt extended. When door closes, latch bolt rides over strike lip.

SOLENOID POWER REQUIREMENTS

Yellow solenoid wires: 12 VDC, 0.57 A
Black solenoid wires: 24 VDC, 0.29 A
(also shown on strike label)
{
NOTE
Wiring
for DC DC input is
supply nonpolarized
{
12 VAC
Wiring
or
for AC
24 VAC
supply
P1 J1A
Use crimp
connectors to
splice field wiring
to P1 leads
Insert and location
for Von Duprin
mortise locks
Insert and location
for Schlage
mortise locks
Insert and location
for Yale, Best, and
Sargent mortise
locks

Figure 2

6210/6210DS
12 VDC
P1
or
24 VDC
J1
SO-12 12 VDC
SO-24 24 VDC
P1A
Solenoid
SO-12 or SO-24
Latch bolt
Strike lip
1/32"
Top view;
faceplate not
shown for clarity

Figure 3

J2 P2
S1
S2
Fail safe (FS)
Switches shown with tripper
depressed, strike lip closed and locked

Figure 1

(switches and tripper on 6210DS only)
A
B
To adjust strike, loosen screws
A, B, and C and move backbox
sideways as necessary

Figure 4

Installation Instructions
Use crimp connectors to
splice field wiring to P2
leads; insulate unused leads
1 1
S1
2 2
3 3
4 4
S2
5 5
6 6
J2 J2 P2
Fail secure (FSE)

SWITCH RATINGS

Standard: 5 A, 30 VDC
Gold: 0.25 A, 30 VDC
NOTE:
Static Strength Rating 1500 lb.
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.S
C
}
Red (C)
S1
Blue
(monitors
tripper)
Yellow
}
White (C)
S2
Gray (monitors
strike lip)
Violet
89/336/EEC
