*941363-00*

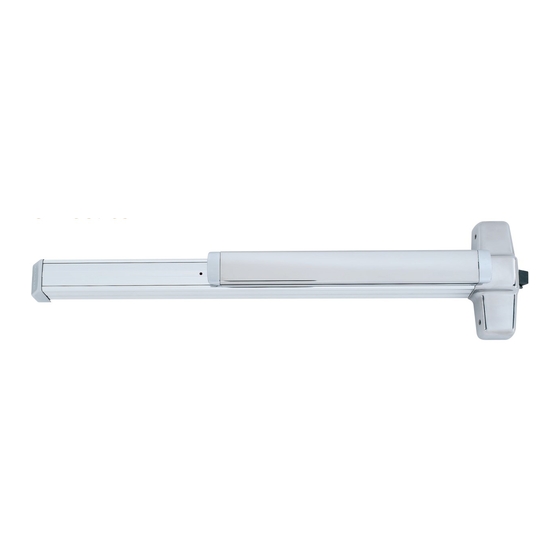

(AX) 98/99-2, (AX) 98/99-2SI,
(AX) XP99-2, (AX) XP99-2SI
941363-00
Center Case Retrofit / Replacement
Installation Instructions

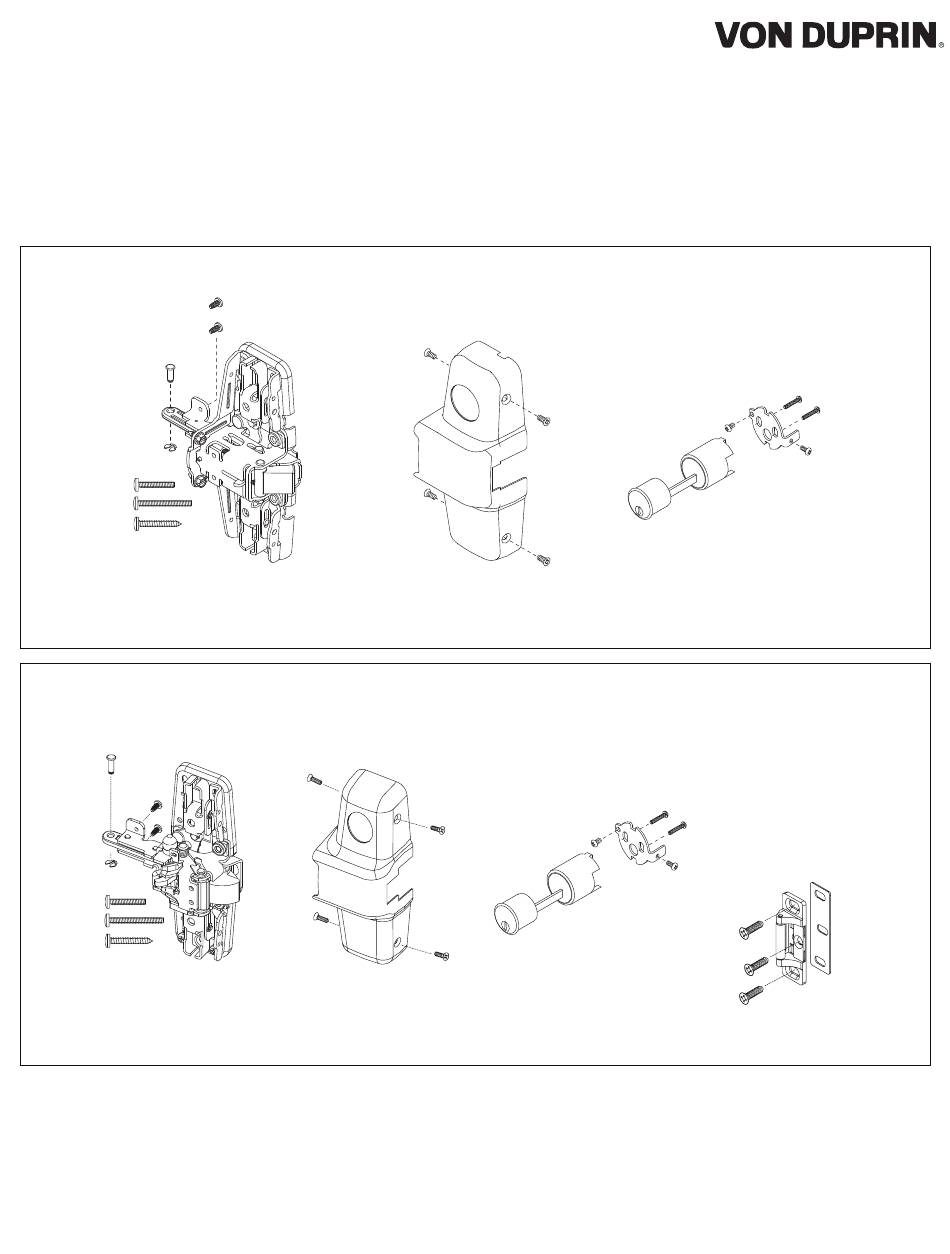

The parts shown below are included with (AX) 98/99 kits:
Center case,
Center case
Cylinder pack
mounting screws,
cover and
and
pin, and retaining ring
screws
screws
The parts shown below are included with (AX) XP98/99 kits:
Cylinder pack
Center case,
Center case
and
909 strike package
mounting screws,
cover and
screws
pin, and retaining ring
screws
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Von Duprin (AX) 98/99-2
Summary of Contents for Von Duprin (AX) 98/99-2
- Page 1 *941363-00* (AX) 98/99-2, (AX) 98/99-2SI, (AX) XP99-2, (AX) XP99-2SI 941363-00 Center Case Retrofit / Replacement Installation Instructions The parts shown below are included with (AX) 98/99 kits: Center case, Center case Cylinder pack mounting screws, cover and pin, and retaining ring screws screws The parts shown below are included with (AX) XP98/99 kits:...
- Page 2 Remove existing exit device from door. Remove old center case. A. Slide mechanism case back approximately 5”. Note: Disconnect device wiring if necessary. End cap Exit device Remove retaining ring and pin, and two screws to remove old center case. Center Trim 2 screws...
- Page 3 Mount key cylinder. Apply label. For 98/99-2SI models with Classroom Security Indicator, #8-18 x ³⁄₈" (10 mm) PPHSMS apply supplied labels above and below cylinder to match door handing, and label on indicator. #8-32 x ⁵⁄₁₆" (8 mm) 99-2 99-2 PPHMS Peel and stick appropriate set of...
- Page 4 Check latch function as shown. Perform operational check. L Important! A. Depress auxiliary bolt and check latch bolt. Latch bolt should be locked and will not move while auxiliary bolt is depressed. A. With door closed, push against door without touching device. Device should NOT allow door to open.
- Page 5 17.000 8.500 FRONT cOVER WITH BARcODE 11.000 11.000 BEGINNING SHEET FOLDED SHEET Additional Notes: Revision History Revision Description: c > Revised document 1. None 58294 58807 Material Edited By Approved By Ec Number Release Date White Paper J. Ellis M. Roberts 08-21-18 Notes Title...
