Ametek SIL IntelliPoint RF S*R*L Series Installation And Operating Instructions Manual

Ametek SIL IntelliPoint RF S*R*L Series Installation And Operating Instructions Manual

Line powered point level safety switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

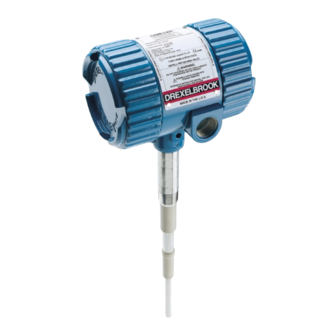

SIL IntelliPoint RF
Line Powered Point Level Safety Switch
Telephone:
Fax:
E-mail:
drexelbrook.sales@ametek.com
Website:
Level Measurement
Operating Instructions
+1 215-674-1234
+1 215-674-2731
www.drexelbrook.com
Installation and
SXRXL Series
TM
Leader in

Advertisement

Table of Contents
loading

Related Manuals for Ametek SIL IntelliPoint RF S*R*L Series

Summary of Contents for Ametek SIL IntelliPoint RF S*R*L Series

  • Page 1 Leader in Level Measurement Installation and Operating Instructions SIL IntelliPoint RF SXRXL Series Line Powered Point Level Safety Switch Telephone: +1 215-674-1234 Fax: +1 215-674-2731 E-mail: drexelbrook.sales@ametek.com Website: www.drexelbrook.com...
  • Page 2 AMETEK Drexelbrook makes no warranty of any kind with regard to the material contained in this manual, including, but not limited to, implied warranties or fitness for a particular purpose. Drexelbrook shall not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or use of material.
  • Page 3 SXRXLXX1-LM Issue# 02 SIL IntelliPoint RF SXRXL Series Line Powered Point Level Safety Switch 205 Keith Valley Road, Horsham, PA 19044 Telephone: +1 215-674-1234 Fax: +1 215-674-2731 An ISO 9001 Certified Company E-mail: drexelbrook.info@ametek.com Website: www.drexelbrook.com...
  • Page 4 Contents...

  • Page 5: Table Of Contents

    Contents Section 1: Introduction System Description ..................1 Technology ....................1 Model Number .....................2 SIL Sensing Element List ................3 Dual Compartment Housing Detail ..............4 Section 2: Installation Unpacking ....................5 Mounting and Installation Guidelines ............5 Input Wiring ....................8 Spark Protection ..................8 Output Wiring - Relay Version ..............8 Circuit Board ....................9 Output &...
  • Page 6 Section 1...

  • Page 7: System Description

    Introduction Section 1: Introduction System Description Installation is simple and easy on the AMETEK Drexelbrook Series products. Simply apply power and the IntelliPoint ™ IntelliPoint system is ready to detect the presence or absence of material. Since the IntelliPoint instrument does not require calibration or setpoint adjustments, it is capable of operating in non-dedicated tanks regardless of the material being measured.

  • Page 8: Model Number

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual SXRXLX Model Number Safety IntelliPoint RF Safety Switch SIL2 Technology RF Admittance Measurement Type Auto Calibration (2pf) Auto Calibration (10pf) Auto Calibration (0.5pf) 10pf Fixed Calibration 2pf Fixed Calibration 0.5pf Fixed Calibration Input Universal Power Supply 21-100VDC, 85-250VAC, 0-400 Hz Housing...

  • Page 9: Sil Sensing Element List

    Introduction SIL Sensing Element List Application Sensing Element Part Number Pressure/Temperature Wetted Parts 700‐1202‐001 Remote General purpose 13.8 bar @ 232°C (200 PSI @ 450°F)  316/316L SS and PEEK 700‐1202‐021 Integral 700‐1202‐014 Remote  General purpose, longer insertion lengths w/cable attachment and 316/316L SS bottom weight 13.8 bar @ 177°C (200 PSI @ 350°F) 316/316L SS and PEEK 700‐1202‐024 Integral 700‐1202‐018 Remote Proximity 13.8 bar @ 232°C (200 PSI @ 450°F) 316/316L SS and PEEK with 76mm (3) 216SS proximity plate 700‐1202‐028 Integral 700‐1202‐041 Remote  69 bar @ 121°C (1000 PSI @ 250°F) General purpose, high temperature and pressure 316/316L SS and PEEK 700‐1202‐042 Integral 20.7 bar @ 232°C (300 PSI @ 450°F) 700‐1202‐031 Remote  General purpose with FDA approved materials of construction 13.8 bar @ 232°C (200 PSI @ 450°F)  316/316L SS and FDA grade PEEK 700‐1202‐032 Integral 700‐1202‐010 Remote  General purpose for granular materials 13.8 bar @ 232°C (200 PSI @ 450°F)  316/316L SS and PEEK with 7/8 inch dia. 316/316L SS collar 700‐1202‐020 Integral 700‐1202‐033 Remote ...

  • Page 10: Dual Compartment Housing Detail

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Dual Compartment Housing Detail Conduit Entries (2) Input/Output Module ¾-inch NPT (FM/FMc Systems) M20 x 1.5 (ATEX/IECEx Systems) LABEL (see below) 114 mm (4.5 inches) 140 mm (5.5 inches) External Lid Lock (2) M4 2.5 mm Hex Drive External Tag Loop (2)

  • Page 11: Installation

    Installation Section 2: Installation Unpacking Carefully remove the contents of the shipping carton and check each item against the packing list before destroying any packing material. If there is any shortage or damage, report it to the factory immediately. Mounting and Installation Guidelines CAUTION: The IntelliPoint RF instrument must be powered AFTER it is installed in the application and with material BELOW the...
  • Page 12 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Mounting and Installation Guidelines (Continued) After system is installed and level is below the sensing element, apply power. The RF Series instrument automatically calibrates and is ready to detect change in level. If properly installed, the Green LED lights when power is applied.
  • Page 13 Installation Mounting and Installation Guidelines (Continued) Mounting sensing element inside a pipe is not recommended. Do not mount a Cote-Shield sensing element through a nozzle that exceeds length of first insulator. Ensure that there are no obstructions or agitator blades to interfere with sensing element.

  • Page 14: Input Wiring

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Input Wiring WARNING: If The IntelliPoint instrument is located in a hazardous environment, do not open the enclosure cover or make/break any electrical connections without first disconnecting electrical power at the source. Ensure that the wiring, electrical fittings and conduit connections conform to electrical codes for the specific location and hazard level.

  • Page 15: Circuit Board

    Installation Output Wiring - Relay Version The IntelliPoint RF series instrument is supplied with two sets of contacts. The relay contacts can be used as one of the following configurations depending on the RELAY #2 jumper configuration (see Figure 2-3 and 2-4) •...
  • Page 16 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual 2.6.1 Time Delay The "Time Delay" adjustment is located on the sensing element/ circuit board side of the housing (marked on label). It is used to help stop an oscillating current output due to agitation or waves in the vessel.
  • Page 17 Installation 2.6.5 Manual / Remote Certify™ The "Certify" test feature performs a confidence test of the system by duplicating the same signal as a high-level alarm condition without requiring the system to be removed from the tank. Simulating a high level with the Manual/Remote Certify feature: •...
  • Page 18 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual 2.6.7 AutoVerify™ Criteria . In order for the Safety IntelliPoint to correctly detect a disconnected sensor, the active sensor length (active length = insertion length – cote shield length) must be greater than 24 inches (610 mm). 2.

  • Page 19: Output & Status Leds

    Installation Relay and LED Output Status Output and LED Status Relay #2 = Alarm Relay #2 = Fault Tank Condition AutoVerify = disabled AutoVerify = disabled There are three status LEDs located on the sensing element/ circuit board side of the housing. One is used to indicate that the unit has power.
  • Page 20 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Sensing Element Connection Sensing element connects to the rear side of the circuit board and is factory-installed. The sensing element is sealed to the housing and cannot be removed without permanent damage. For IntelliPoint RF instruments that are mounted remotely from the sensing element, an additional housing with terminals is provided to connect the cable from the sensing element.
  • Page 21 Installation Sensing Element Connection (Continued) See Section 6.5 for Spark Protection, Mounting and Wiring 3 TERMINAL PROBE (TYP) Shield Wire Center Wire (RED) (BLUE) Housing and Bracket are G=Ground Ground Wire S=Shield shown rotated (GREEN) C=Center 90º for clarity. 2 TERMINAL PROBE (TYP) Center Wire (BLUE) Shield Wire...

  • Page 22: Calibration

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Calibration The Intellipoint™ model RNT (Standard Sensitivity) and RHT (High Sensitivity) feature Auto-Cal calibration. Auto- Calibration is suitable for liquid and slurry applications. A full system proof test must be performed when: - Any system component is changed or replaced by the user.
  • Page 23 Spare Parts List 2.9.2 IntelliPoint Calibration Mode Change (Continued) Each IntelliPoint has 4 different Calibration Modes that are available, dependant on the model purchased. A full system proof test must be performed when: - Any system component is changed or replaced by the user. - Any system component or setting is modified by the user.
  • Page 24 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual 2.9.2 IntelliPoint Calibration Mode Change (Continued) Mode 3: Auto-Cal 2 pF. This mode provides a 2 pF preload; alarm setpoint varies depending on material and coating deposit changes. Mode 4: Fixed Cal 2 pF. This mode provides a 2 pF preload;...
  • Page 25 Spare Parts List 2.9.2 IntelliPoint Calibration Mode Change (Continued) LEDs POWER GREEN ALARM OUTPUT CURRENT 8mA - ALARM UNUSED 16mA - NORMAL 22mA - FAULT 8mA - NORMAL TIME DELAY 16mA - ALARM 0-60 SECONDS 5mA - FAULT HLFS FAILSAFE LLFS TIME DELAY SELECTION...

  • Page 26: Spare Parts List

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Section 3: Spare Parts List O-ring ..................... 250-1-75 Housing ¾-Inch NPT Conduit Entry ..........260-2-540 Housing M20 Conduit Entry ............... 260-2-542 Input/ Output Module ................385-48-6 Input/ Output Module, Gold Relay ............. 385-48-18 Circuit Board RLL - 2pf Fixed Calibration ...........

  • Page 27: Section 4: Troubleshooting

    Section 4: Troubleshooting WARNING: If The IntelliPoint instrument is located in a hazardous environment, do not open enclosure cover or make/break any electrical connections without first disconnecting electrical power at the source. Ensure that wiring, electrical fittings and conduit connections conform to electrical codes for the specific location and hazard level.

  • Page 28: Rf Point Level Troubleshooting Guide

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual RF Point Level Troubleshooting Guide Symptom Possible Cause Solution See Section Switch is in alarm and will Sensor is coated by a conductive material and the Need a sensor with a longer Cote-Shield Section 2.2, 4.5 not clear Cote-Shield™...

  • Page 29: Testing Electronic Unit

    Troubleshooting Testing Electronic Unit This test is only a test of the electronic unit for troubleshooting purposes, and does not serve as a Verify or Certify test of the complete system. Proof test must be performed to certify proper operation for SIL perfromance. Reference Appendix B in the EXIDA Failure Modes, Effects and Diagnostic Analysis located on the Drexelbrook.com website under support/ documentation.

  • Page 30: Over Range

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Over Range If the Red LED is flashing quickly (4 times/second), IntelliPoint has detected that uncovered sensing element capacitance exceeds limits of transmitter. Consult factory for pad capacitor values and instructions. Under Range If the Red LED is flashing slowly (once per second), IntelliPoint has detected that pad capacitor value is too large or a center wire to Cote Shield short.

  • Page 31: Testing The Sensing Element

    Troubleshooting Testing The Sensing Element Integral electronics, Ref figure 4-1: Remove Sensing Element Circuit Board and disconnect cable from circuit board Remote electronics, Ref figure 4-2 Disconnect remote cable at the sensing element. 1. With the sensing element in the vessel, verify level is below the sensing element 2.
  • Page 32 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Testing The Sensing Element (Continued) c. If the sensing element still shows resistance between terminals of less than 10K ohms, it is possible that moisture is present internal to the sensing element. It may be possible to dry the sensing element until the resistance increases to a value in excess of 10K ohms.
  • Page 33 Troubleshooting Testing The Sensing Element (Continued) ANALOG ANALOG OHMMETER OHMMETER CENTER OUTER CONDUCTOR CONDUCTOR GROUNDED GROUNDED Red Lug HOUSING HOUSING PACKING PACKING GLAND GLAND DO NOT DISTURB DO NOT DISTURB PROBE MEASUREMENT SHIELD MEASUREMENT Figure 4-2 Checking the Sensing Element Center = Probe Outer = Shield Housing = Ground...

  • Page 34: Testing The Integral Cable

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Testing the Integral Cable 1. Disconnect integral cable from electronic. 2. Check for continuity. a. Using an ohmmeter measure the resistances. i. From the center wire connection on the RCA plug to the sensing element active section (center wire) ii.

  • Page 35: Testing The Power Supply

    Troubleshooting Testing the Remote Cable (Continued) OHMMETER CENTER - GROUND OHMS CENTER - SHIELD OHMS SHIELD - GROUND OHMS CORRECT READING = OPEN CIRCUIT NO CONNECTION OHMMETER CHECK FOR SHORTS "0" CENTER - GROUND OHMS "0" CENTER - SHIELD OHMS "0"...

  • Page 36: Factory Assistance

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Factory Assistance AMETEK Drexelbrook can answer any questions about The Intellipoint series instrument. Call Customer Service at +1 215 674-1234. If you require assistance and attempts to locate the problem have failed:...

  • Page 37: Equipment Return

    • Please include a purchase order even if the repair is under warranty. If repair is covered under warranty, you will not be charged. Ship equipment freight prepaid to: AMETEK-DREXELBROOK. 205 KEITH VALLEY ROAD HORSHAM, PA 19044-1499 COD shipments will not be accepted...
  • Page 38 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Section 5...

  • Page 39: Specifications

    Specifications Section 5: Specifications Specifications RF/ Capacitance Technology: None Calibration: Modes of Operation: High Level Fail Safe 2mm (0.08 inch) Conductive Liquids Repeatability: Less than 1 Second Response Time: 0 to 60 Seconds Forward & Reverse Acting Time Delay: Ambient Electronics: -30 to 70°C (-22 to 158°F) ATEX -30 to 58°C (-22 to 136°F) IECEx -40 to 70°C (-40 to 158°F) FM/FMc -40 to 85°C (-40 to 185°F)

  • Page 40: Approvals

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Approvals The IntelliPoint RF Point Level System Transmitter has been evaluated as Explosion-proof for use in Class I, Division 1, Groups A, B, C, and D, Dust-Ignition proof for use in Class II and III, Division 1, Groups E, F, and G;...
  • Page 41 Specifications Section 6...

  • Page 42: Control Drawings

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Section 6: Control Drawings FM / FMc Control Drawings...
  • Page 43 Control Drawings FM / FMc Control Drawings (Continued)
  • Page 44 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual FM / FMc Control Drawings (Continued)
  • Page 45 Control Drawings FM / FMc Control Drawings (Continued)
  • Page 46 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual FM / FMc Control Drawings (Continued)
  • Page 47 Control Drawings FM / FMc Control Drawings (Continued)
  • Page 48 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual FM / FMc Control Drawings (Continued)
  • Page 49 Control Drawings FM / FMc Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 L b - 0 c d e - * * * * a = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL M = MANUAL-CAL (STANDARD SENSITIVITY)
  • Page 50 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual FM / FMc Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 L b - c d e f - * * * * a = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL...
  • Page 51 Control Drawings FM / FMc Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 L b - c d e f - * * * * SENSING ELEMENTS: CONTINUED…...
  • Page 52 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual FM / FMc Control Drawings (Continued) MODEL NUMBERS OF APPROVED SENSING ELEMENTS 700-mnop-qrs-t LEVEL PROBE m = FAMILY NUMBER: 0 THROUGH 9, BLANK m = FAMILY NUMBER: 0 THROUGH 9, BLANK o = 0 THROUGH 9, BLANK p = 0 THROUGH 9 q = FAMILY NUMBER: 0 THROUGH 9, BLANK r = FAMILY NUMBER: 0 THROUGH 9, BLANK...
  • Page 53 Control Drawings FM / FMc Control Drawings (Continued) COLUMNS 11 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 5 6 - 7 8 9 10 - 11 12 13 14 S a R b L c - 0 d e f - * * * * a = 2 SIL LEVEL 2 b = MEASUREMENT OPTIONS:...
  • Page 54 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual FM / FMc Control Drawings (Continued) COLUMNS 11 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 5 6 - 7 8 9 10 - 11 12 13 14 S a R b L c - d e g - * * * * a = 2 SIL LEVEL 2...
  • Page 55 Control Drawings FM / FMc Control Drawings (Continued) SPECIFIC CONDITIONS OF USE “The equipment shall not be applied in an explosive dust atmosphere where high electrostatic charging processes are present that could result in propagating brush discharges. See IEC TS60079-32-1 for additional guidance.” Consult the manufacturer if dimensional information on the flameproof joints is necessary.

  • Page 56: Atex Control Drawings

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual ATEX Control Drawings...
  • Page 57 Control Drawings ATEX Control Drawings (Continued)
  • Page 58 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual ATEX Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 L 2 - 0 b c d - * * * * a = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL M = MANUAL-CAL (STANDARD SENSITIVITY)
  • Page 59 Control Drawings ATEX Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 L 2 - b c d e - * * * * a = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL M = MANUAL-CAL (STANDARD SENSITIVITY)
  • Page 60 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual ATEX Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 L 2 - b c d e - * * * * SENSING ELEMENTS: CONTINUED…...
  • Page 61 Control Drawings ATEX Control Drawings (Continued) MODEL NUMBERS OF APPROVED INTRINSICALLY SAFE SENSING ELEMENTS 700-mnop-qrs-t LEVEL PROBE m = FAMILY NUMBER: 0 THROUGH 9, BLANK m = FAMILY NUMBER: 0 THROUGH 9, BLANK o = 0 THROUGH 9, BLANK p = 0 THROUGH 9 q = FAMILY NUMBER: 0 THROUGH 9, BLANK r = FAMILY NUMBER: 0 THROUGH 9, BLANK s = FAMILY NUMBER: 0 THROUGH 9...
  • Page 62 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual ATEX Control Drawings (Continued) COLUMNS 11 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 5 6 - 7 8 9 10 - 11 12 13 14 S a R b L 2 - 0 c d e - * * * * a = 2 SIL LEVEL 2 b = MEASUREMENT OPTIONS:...
  • Page 63 Control Drawings ATEX Control Drawings (Continued) COLUMNS 11 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 5 6 - 7 8 9 10 - 11 12 13 14 S a R b L 2 - c d e f - * * * * a = 2 SIL LEVEL 2 b = MEASUREMENT OPTIONS:...
  • Page 64 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual ATEX Control Drawings (Continued) SPECIFIC CONDITIONS OF USE 1. The equipment shall not be applied in an explosive dust atmosphere where high electrostatic charging processes are present that could result in propagating brush discharges. See CLC/TR 60079-32-1 for additional guidance.

  • Page 65: Ce Mark Declaration Of Conformity

    1-15-108 1-30-15 4-16-102 4-20-16 Declaration of Conformity AMETEK DREXELBROOK 205 KEITH VALLEY ROAD HORSHAM, PENNSYLVANIA USA, 19044 We declare under our sole responsibility that the product IntelliPoint Point Level Measurement Systems Model Number RXLX Series which this declaration relates is in conformity...

  • Page 66: Iecex Control Drawings

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual IECEx Control Drawings...
  • Page 67 Control Drawings IECEx Control Drawings (Continued)
  • Page 68 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual IECEx Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 R a L b - 0 c d e - * * * * a = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL M = MANUAL-CAL (STANDARD SENSITIVITY)
  • Page 69 Control Drawings IECEx Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 R a L b - c d e f - * * * * a = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL M = MANUAL-CAL (STANDARD SENSITIVITY)
  • Page 70 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual IECEx Control Drawings (Continued) COLUMNS 9 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 - 5 6 7 8 - 9 10 11 12 R a L b - c d e f - * * * * SENSING ELEMENTS: CONTINUED…...
  • Page 71 Control Drawings IECEx Control Drawings (Continued) MODEL NUMBERS OF APPROVED INTRINSICALLY SAFE SENSING ELEMENTS 700-mnop-qrs-t LEVEL PROBE m = FAMILY NUMBER: 0 THROUGH 9, BLANK m = FAMILY NUMBER: 0 THROUGH 9, BLANK o = 0 THROUGH 9, BLANK p = 0 THROUGH 9 q = FAMILY NUMBER: 0 THROUGH 9, BLANK r = FAMILY NUMBER: 0 THROUGH 9, BLANK s = FAMILY NUMBER: 0 THROUGH 9...
  • Page 72 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual IECEx Control Drawings (Continued) COLUMNS 11 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 5 6 - 7 8 9 10 - 11 12 13 14 S a R b L c - 0 d e f - * * * * a = 2 SIL LEVEL 2...
  • Page 73 Control Drawings IECEx Control Drawings (Continued) COLUMNS 11 AND UP, DO NOT AFFECT SAFETY 1 2 3 4 5 6 - 7 8 9 10 - 11 12 13 14 S a R b L c - d e g - * * * * a = 2 SIL LEVEL 2 b = MEASUREMENT OPTIONS: N = 2 pF AUTO-CAL...
  • Page 74 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual IECEx Control Drawings (Continued) SPECIFIC CONDITIONS OF USE: THE EQUIPMENT SHALL NOT BE APPLIED IN AN EXPLOSIVE DUST ATMOSPHERE WHERE HIGH ELECTROSTATIC CHARGING PROCESSES ARE PRESENT THAT COULD RESULT IN PROPAGATING BRUSH DISCHARGES. CONSULT THE MANUFACTURER IF DIMENSIONAL INFORMATION ON THE FLAMEPROOF JOINTS IS NECESSARY.

  • Page 75: Mounting And Wiring For Spark Protector Drawings

    Control Drawings Mounting and Wiring for Spark Protector Drawings...
  • Page 76 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Mounting and Wiring for Spark Protector (Continued)
  • Page 77 Control Drawings Mounting and Wiring for Spark Protector (Continued)

  • Page 78: Adding A Padded Capacitor

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Adding a Padded Capacitor...
  • Page 79 Control Drawings Adding a Padded Capacitor (Continued)
  • Page 80 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Adding a Padded Capacitor (Continued)

  • Page 81: Dual Seal Assembly For 700 Series Sensing Elements

    Control Drawings Dual Seal Assembly for 700 Series Sensing Elements...
  • Page 82 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Dual Seal Assembly (Continued)
  • Page 83 Control Drawings Dual Seal Assembly (Continued)
  • Page 84 Appendix: A...

  • Page 85: Shortening Or Lengthening The Sensing Element

    Appendix A Appendix A: Shortening or Lengthening the Sensing Element CAUTION: The insulation length of either Flush Sensing Elements or Insulated Sensing Elements can NOT be changed. Cable Sensing Elements can only be shortened. Instructions are included with each unit. The Need Sometimes your application calls for probe lengths other than the standard 18-inch or longer insertion lengths...

  • Page 86: Ce Installation Supplement

    ISSUE EDO NO. APP'D DATE 2-16-102 2-1-16 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual 11-17-100 11-3-17 EMC Installation Supplement CE Installation Supplement Purpose: To provide additional information that is required to be in compliance with the CE mark of conformity and 2014/30/EU Directive. Definitions: 1.

  • Page 87: Ce Installation Supplement (Continued

    Appendix A CE Installation Supplement (Continued) Sht. ISSUE 440-0018-731 3. Remote Installations  Sensor port must be connected to the transmitter port by one of the following means: • 401-16 Probe Filter • Coaxial cable run in conduit. • Triaxial cable. 4.
  • Page 88 SXRXLXX1 - SIL IntelliPoint RF Series User's Manual Appendix: B...

  • Page 89: Exida Management Summary

    Appendix A EXIDA Management Summary Proof test must be performed to certify proper operation for SIL perfromance. Reference Appendix B in the EXIDA Failure Modes, Effects and Diagnostic Analysis located on the Drexelbrook.com website under support/ documentation.

  • Page 90: Exida Report Results

    SXRXLXX1 - SIL IntelliPoint RF Series User's Manual EXIDA Report Results...
