Summary of Contents for Ametek MAGNETROL C29

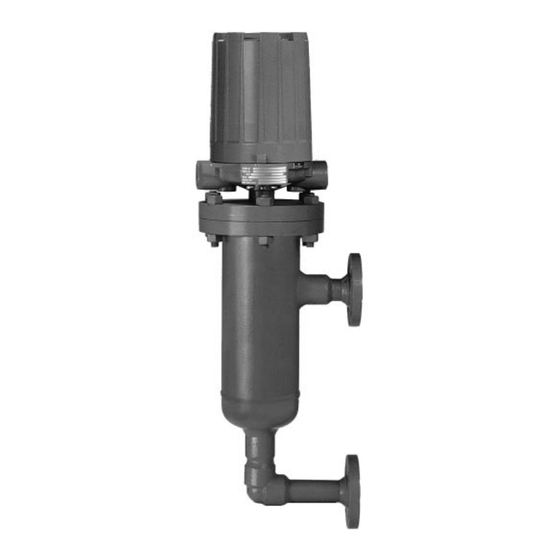

- Page 1 Flanged External Cage Installation and Operating Manual Float Actuated Liquid Level Switches...
- Page 2 Certain conventions are used in this manual to ranty; then, AMETEK LMS will repair or replace the convey specific types of information. General control at no cost to the purchaser (or owner) technical material, support data, and safety infor- other than transportation.
-
Page 3: Table Of Contents
Flanged External Cage Float Actuated Liquid Level Switches Table of Contents 1.0 Installation 5.0 Specifications 1.1 Unpacking............4 5.1 Agency Approvals..........15 1.2 Critical Alarm Function ........4 5.1.1 Specific Conditions of Use ....19 1.3 Piping ...............4 5.2 Physical............20 1.4 Mounting............5 6.0 Replacement Parts 1.5 Wiring...............5 6.1 Standard Flanged External Cage Models ..22 2.0 Reference Information... -
Page 4: Installation
Installation Caution: If equipment is used in a manner not specified by manu- facturer, protection provided by equipment may be impaired. Unpacking Unpack the instrument carefully. Inspect all units for damage. Report any concealed damage to carrier with- in 24 hours. Check the contents against the packing slip and purchase order. -
Page 5: Mounting
Mounting Caution: This instrument is intended for use in Installation Category II, Pollution Degree 2 locations. Adjust piping as required to bring control to a vertical position. Control must be mounted within 3° of vertical in all directions. A three-degree slant is noticeable by eye, but installation should be checked with a spirit level on top and/or sides of float chamber. - Page 6 NOTE: Housing must be grounded via protective ground screw in the base of the housing. NOTE: On high temperature applications (above +250 °F [+121 °C] in float chamber), high temperature wire should be used between control and first junction box located in a cooler area. On non-hazardous applications, flexible conduit may be used between the control and the first junction box.
-
Page 7: Reference Information
Reference Information Description Flanged External Cage liquid level switches are com- pletely self-contained units designed for side mounting to a vessel or tank with threaded or flanged pipe con- nections. Theory of Operation The design of float-operated level switches is based upon the principle that a magnetic field will not be affect- ed by non-magnetic materials such as 316 stainless steel The float moves a magnetic attraction sleeve within... -
Page 8: Low Level Controls
The differential, or the amount of level travel between switch-on and switch-off, may be adjusted by reposi- For access to bottom Slight play (gap) jam nuts, remove top tioning the lower jam nuts on the float stem. This must be allowed jam nuts, washer, and (.03"... -
Page 9: High Level Controls
7. Lift enclosing tube, switch, and base off float chamber. Jam nuts and attraction sleeve are now accessible. 8. Measure the distance “D” from the top edge of the upper jam nuts to the top of the float stem. Refer to Figure 7. -
Page 10: Replacement Of Standard Float And Stem Assembly
Replacement of Standard Float and Stem Assembly 1. Disconnect wiring or medium lines from control and perform system shutdown. See Troubleshooting, Section 3.0. Top jam Dim. A .87 (22) nuts 2. Remove switch housing assembly from float chamber Bottom jam at head flange. -
Page 11: Troubleshooting
Troubleshooting Usually the first indication of improper operation is fail- ure of the controlled equipment to function, i.e., pump will not start (or stop); signal lamps fail to light, etc. When these symptoms occur, whether at time of instal- lation or during routine service thereafter, check the fol- lowing potential external causes first. -
Page 12: Check Sensing Unit
Check Sensing Unit 1. Reconnect power supply. Carefully actuate the switch mechanism manually (use a non-conductive tool on electrical switch mechanisms) to determine whether controlled equipment will operate. Caution: With electrical power on, care should be taken to avoid contact with switch leads and connections at terminal block. -
Page 13: Preventive Maintenance
11. Check float to be certain it is buoyant in the liquid (float chamber or vessel must have adequate liquid level). If float is determined to be filled with liquid, or it is col- Top jam lapsed, it must be replaced immediately. nuts Bottom jam Caution: Do not attempt to repair a float. -
Page 14: Inspect Entire Unit Periodically
screw at point of contact between screw and lever. Such wear can cause false switch actuating levels. See switch mechanism bulletin supplied with control should switch adjustment or replacement become necessary. 2. DO NOT operate your control with defective or malad- justed switch mechanisms. -
Page 15: Specifications
Specifications Agency Approvals EMC directive 2014/30/EU (electromagnetic compatibility) The following standard has been applied: EN 61326-1:2013-(Low Voltage Directive-CE) 46-605 Flanged External Cage Float Actuated Liquid Level Switches... - Page 16 46-605 Flanged External Cage Float Actuated Liquid Level Switches...
- Page 17 Maximum Pressure Ratings: These are the ranges of process pressure ranges based on each individual model as mentioned in each individual manual. Nominal Thickness Minimum Thickness Pressure Rating for (in) (in) 316 SST Version (psig) 0.035 0.0295 1300 0.065 0.0595 2710 0.093 0.087...
- Page 18 Switch Ratings RATING SWITCH SWITCH PROCESS LOAD VOLTS AC VOLTS DC SERIES TYPE TEMP RANGE Non-Inductive Amp 15.00 15.00 15.00 6.00 0.50 0.25 -40 to +250 °F Snap Inductive Amp 15.00 15.00 15.00 5.00 0.05 0.03 (-40 to +121 °C) Horseower —...
-
Page 19: Specific Conditions Of Use
Item Description/Ratings Installation and Erection TO PREVENT IGNITION OF HAZARDOUS ATMOSPHERES. DISCONNECT DEVICE FROM SUPPLY CIRCUIT BEFORE OPENING. KEEP ASSEMBLY TIGHTLY CLOSED WHEN IN OPERATION. Before attempting to remove a switch mechanism, be certain to pull disconnect switch or otherwise assure that electrical circuit through control is de-energized. -
Page 20: Physical
Physical CHAMBERS WITH 1-INCH CONNECTIONS INCHES MILLIMETERS 1" NPT Threaded 1" Flanged 1" Flanged Actuating 1" NPT Threaded 1" Flanged 1" Flanged Actuating Min. & Socket Weld Upper Side/Bottom Side/Side Levels & Socket Weld Upper Side/Bottom Side/Side Levels C29 .76 9.94 3.02 13.50 12.81 5.87 16.44 13.46 5.87 17.06 2.95 3.85 252 76 342 417 341 149 433 74... - Page 21 Inches (mm) 5.93 (151) 3.78 (96) 8.46 10.12 (215) 8.46 (257) 10.12 (215) (257) plugged plugged Threaded and Socket Weld Side/Bottom Flanged 5.93 (151) 3.78 (96) Conduit Connections D Electrical Switches: 1" NPT 8.46 Pneumatic Switches: ⁄ " NPT 10.12 (215) (257) NOTES:...
-
Page 22: Replacement Parts
Replacement Parts Standard Flanged External Cage Models 6.1.1 Parts identification Housing cover Housing base Switch mechanism Enclosing tube Enclosing tube gasket Head flange Studs Hex nuts Flange gasket Float chamber Stop strap Screws Float and stem assembly Jam nuts Guide washer Attraction sleeve Stop tube (not required for Models C29 and D30) IMPORTANT:... -
Page 23: Models D30, J30 And L30
6.1.4 Models D30, J30 and L30 Housing cover Refer to Section 6.1.2 Housing base Refer to Section 6.1.2 Switch mechanism Refer to Section 6.1.2 Enclosing tube kit 089-5915-001 089-5933-011 ➀ ➁ includes items 4 and 5 Enclosing tube gasket 012-1204-001 012-1204-001 Head flange kit 089-4204-001... -
Page 24: Tandem Flanged External Cage Models
Tandem Flanged External Cage Models 6.2.1 Parts identification Housing cover Housing base Switch mechanism Enclosing tube Enclosing tube gasket Head flange Studs and bolts Hex nuts Flange gasket Stop strap Screws Upper float and stem assembly Lower attraction sleeve Spacer washer Retaining ring Jam nuts Upper attraction sleeve... -
Page 25: Model C29
6.2.3 Model C29 TDM Housing kit: includes items 1 and 2 Refer to Section 6.2.2 Switch mechanism Refer to Section 6.2.2 Enclosing tube kit: includes items 4 and 5 089-5909-002 Enclosing tube gasket 012-1204-001 Head flange kit: includes items 5, 6, 7, 8, and 9 089-4203-001 Flange gasket 012-1204-016... -
Page 26: Model Numbers
Model Numbers MODEL NUMBER CODE Minimum Specific Gravity ➁ Pressure Rating for Models with ➀ Material of Construction Code Model psig @ °F bar @ °C 1000 0.76 0.81 D30 ➂ 0.65 0.69 — — 400 √ 322 √ 28 √ 22 √... - Page 27 ELECTRIC SWITCH MECHANISM AND ENCLOSURE All models with All models with Material of Construction Code 1 Material of Construction Code 2 Process ➄ Temperature Aluminum Enclosure ➅ Switch Contacts Range Description Points FM (US/CA) FM (US/CA) ATEX / FM (US/CA) FM (US/CA) ATEX / °F (°C)
- Page 28 Controls returned obtained from the factory, prior to the material's under our service policy must returned by return. This is available through the AMETEK LMS Prepaid transportation. AMETEK LMS will repair local representative or by contacting the factory.
