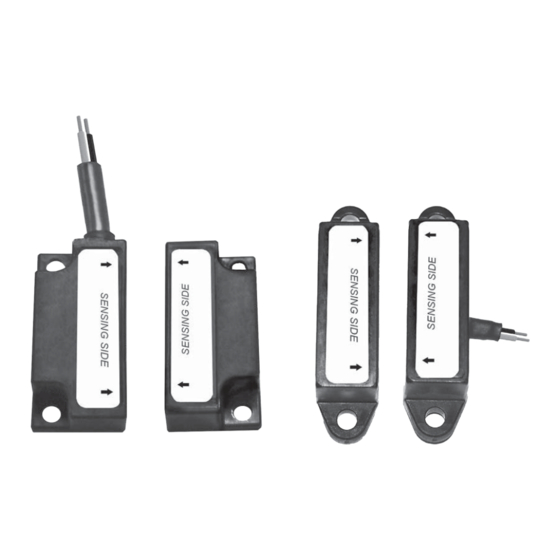

- Page 1 PS0X POSITION SWITCH INSTALLATION AND OPERATIONS MANUAL Position Switch For Commercial Use PS01 PS02 ISO 9001:2008 CERTIFIED...
- Page 2 This manual provides information on the PS0X Limitations . It is Position Switch for Commerical Use important that all instructions are read carefully Copyright ©2022 AMETEK Magnetrol USA, LLC and followed sequentially. Detailed instructions are All rights reserved. included in the section of Complete Installation this manual.
-
Page 3: Table Of Contents
PS0X POSITION SWITCH For Commercial Use TABLE OF CONTENTS 1.0 Installation 1.1 Unpacking................4 1.2 Before You Begin..............4 1.2.1 Site Preparation............4 1.2.2 Equipment and Tools..........4 1.3 Mounting................5 1.3.1 Flanged Mounting............5 1.4 Wiring..................5 2.0 Preventative Maintenance 2.1 What To Do................6 2.1.1 Inspect Entire Unit Periodically.........6 2.1.2 Inspect Connections Monthly........6 2.1.3 Keep Unit Clean............6 2.2 What To Avoid..............6... -
Page 4: Installation
1.0 COMPLETE INSTALLATION This section provides detailed procedures on properly installing the Model PS0X Position Switch. CAUTION! IF THE EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY THE MANUFACTURER, PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED. 1.1 UNPACKING Unpack the instrument, carefully. -
Page 5: Mounting
1.3 MOUNTING The Model PS0X Position Switch is equipped with mounting holes for quick installation and easy attachment to the end user’s intended application. The amount of screws necessary for installation correlates to the type of magnet housing. 1.3.1 Flanged Mounting Each of the PS0X products utilize a flange-type mounting attachment for quick installation. -
Page 6: Preventative Maintenance
2.0 PREVENTATIVE MAINTENANCE Periodic inspections are necessary to maintain the proper functionality of the Model PS0X Position Switch. The switch is a safety device that protects the equipment it serves. A systematic program of preventative maintenance should be implemented at the time of installation. If the following instructions are completed routinely, the switch will provide continuous, reliable protection. -
Page 7: Reference Information
3.0 REFERENCE INFORMATION This section illustrates an overview of the Model PS0X Position Switch, as well as information on troubleshooting common problems, agency approval listings, and detailed physical, functional and performance specifications. 3.1 DESCRIPTION The Models PS01 and PS02 Position Switches magnet-actuated devices... -
Page 8: Troubleshooting
3.3 TROUBLESHOOTING The Model PS0X Position Switch is designed and engineered for trouble-free operation over a wide range of operating conditions. Common problems are discussed in terms of their symptoms and recommended corrective actions. 3.3.1 External Causes An initial indication of improper operation is the failure of the controlled equipment to function (pumps will not start or stop, signal lamps fail to light, etc). -
Page 9: Agency Approvals
3.4 AGENCY APPROVALS AGENCY APPROVED MODEL(S) FILE NUMBER AREA CLASSIFICATION PS0X-YYXX-QQWW E337008 GENERAL USE 3.5 SPECIFICATIONS 3.5.1 Functional Specifications INPUT MEASURED VARIABLE: Position Change OUTPUT SIGNAL: Switch Closure Refer to Section 3.5.2 PHYSICAL RANGE: TYPE OF CONTACTS: SPST, SPDT TYPE OF SWITCHES: Hermetically-Sealed Reed Switch or TRIAC Version SWITCH RATINGS: SPST 50 VA. -
Page 10: Dimensional Specifications
3.5.3 Dimensional Specifications 2X Ø 0.218” 2.12” 0.76” 1.75” 0.22” CABLE LENGTH 1 - 99 FEET 0.76” 1.07” 0.57” SENSING RANGE 1.07” SENSING RANGE 0.22” 1.75” CABLE LENGTH 2X Ø 0.218” 1 - 99 FEET 2.12” 4X Ø 0.21” 2.11” HOUSING STYLE -01 HOUSING STYLE -02 3.6 MODEL CONFIGURATOR... -
Page 11: Notes
3.7 NOTES PS0X POSITION SWITCH FOR COMMERCIAL USE... - Page 12 ASSURED QUALITY & SERVICE COST LESS Service Policy Return Material Procedure Owners of Solutions With Innovation products may In order to efficiently process any returned materials, it is request a return of the product, or any part of the product essential that a Return Material Authorization (RMA) number for complete rebuilding or replacement.
