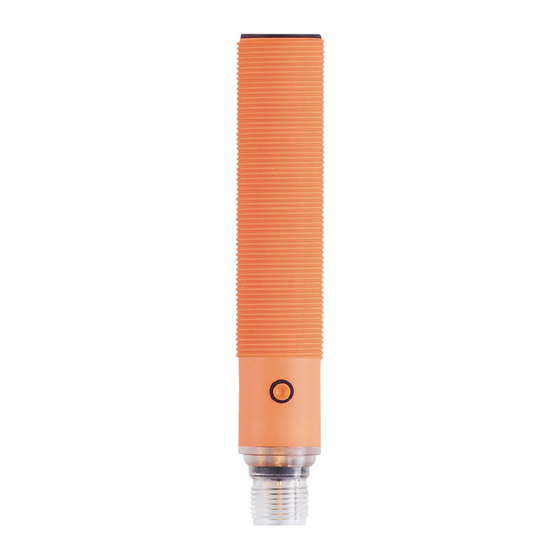

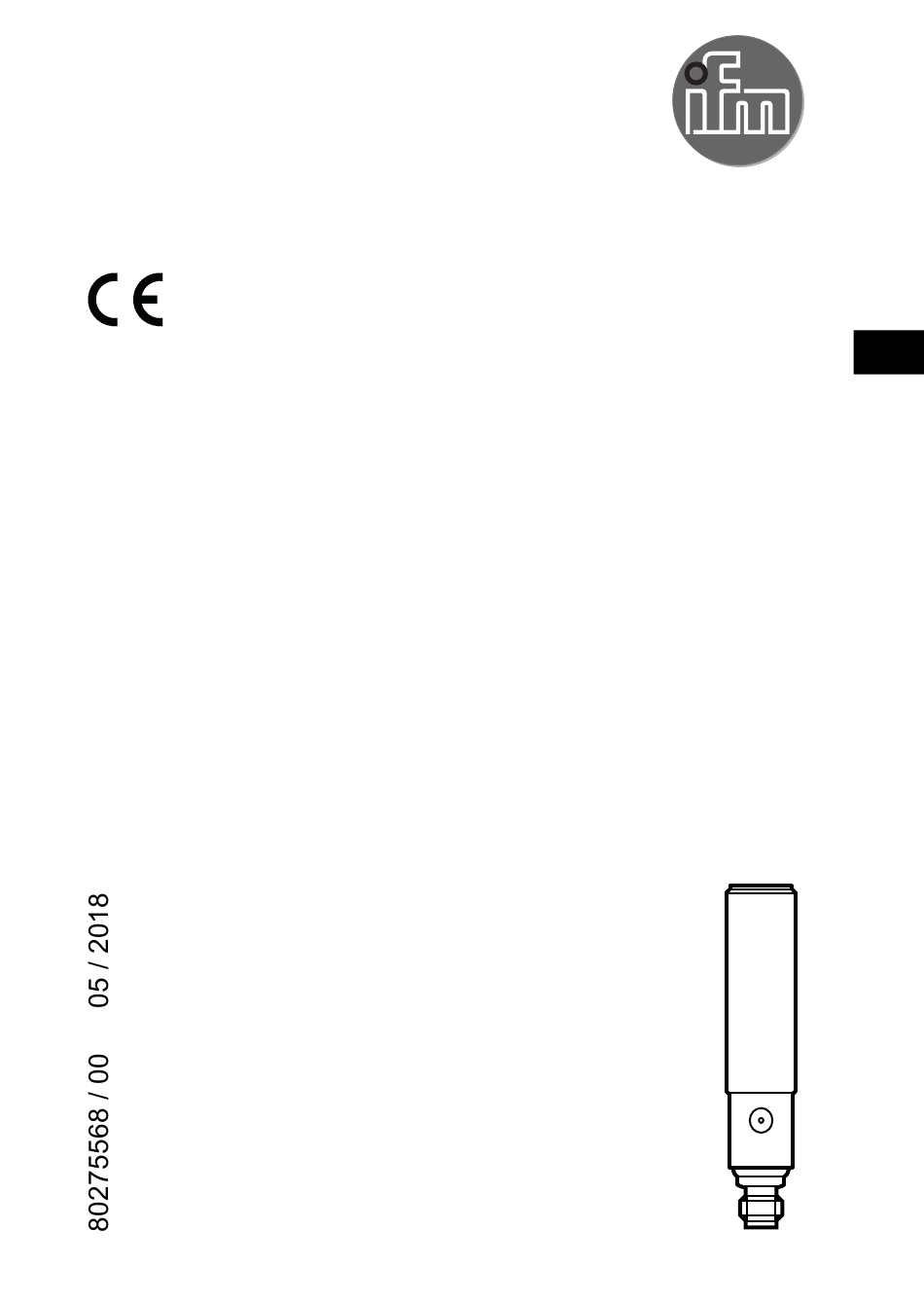

- Page 1 Operating instructions Ultrasonic diffuse-reflection sensor with IO-Link UGT203 UGT206 UGT509 UGT512...
-
Page 2: Safety Instructions
1 Safety instructions • Read this document before setting up the product and keep it during the entire service life. • The product must be suitable for the corresponding applications and environmental conditions without any restrictions. • Only use the product for its intended purpose (→ 2 Functions and features). •... -
Page 3: Electrical Connection
For units with metal housing (according to UL 508): ► Keep a distance of at least 12.7 mm between the sensor and non- insulated metal material. For further information please refer to www.ifm.com → General information about installation and operation. 4 Electrical connection ►... - Page 4 5.2 Teach button 5.2.1 Start programming mode ► Press the teach button for 2 s...6 s. > Yellow status LEDs 1/2 flash (1 Hz), the unit is in the programming mode. If programming has not been completed successfully, the unit returns to the previous setting.
- Page 5 P1/P2 2 Inverted switching outputs Inverted switching outputs P1/P2 1: output response B: blind zone 2: distance to the object P: taught position 3: OUT1 (switching output) T: teach button 4: OUT2 (switching output) Technical data and further information at www.ifm.com...
