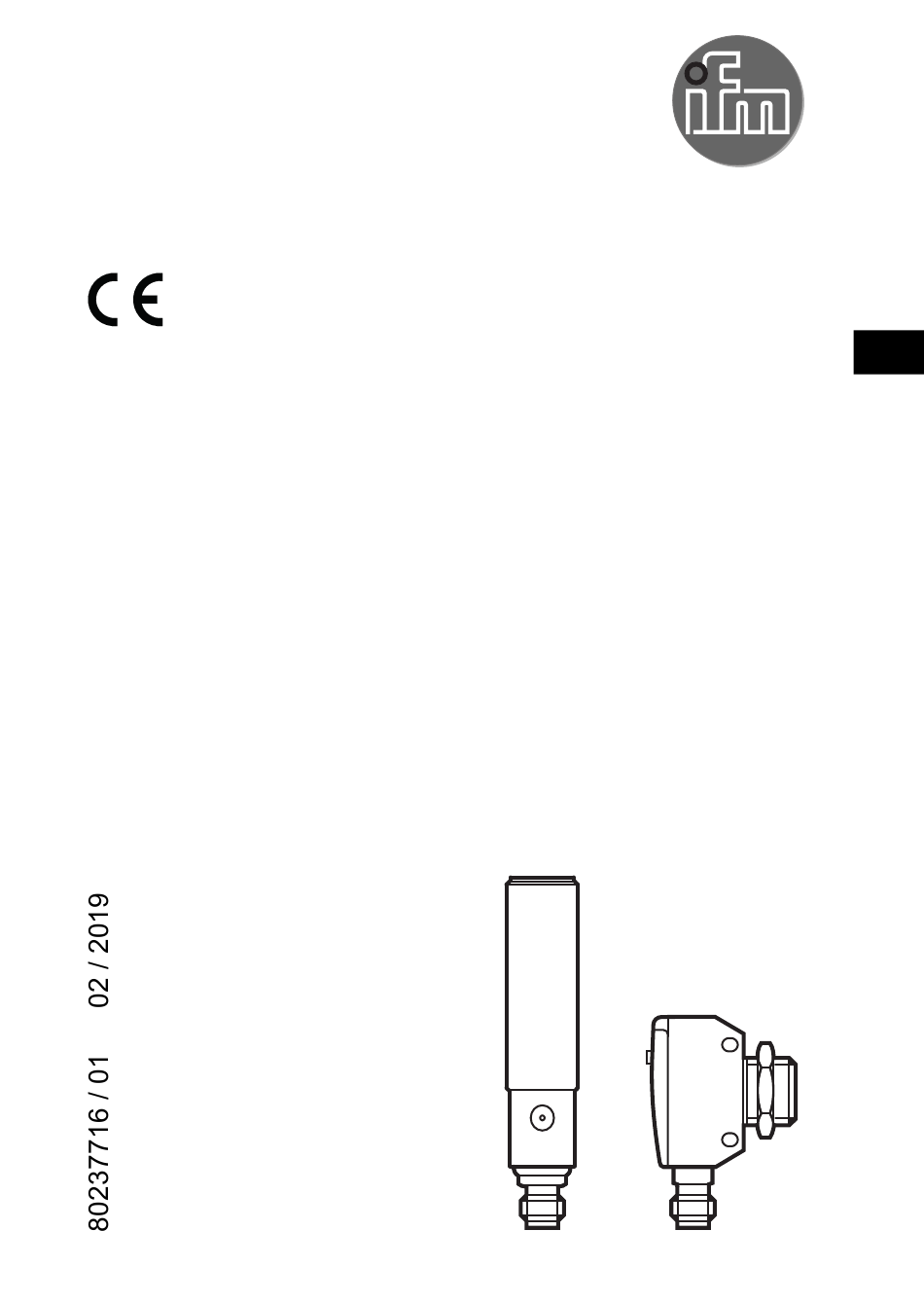

- Page 1 Operating instructions Ultrasonic diffuse-reflection sensor without IO-Link UGT516 UGT517 UGT519 UGT520 UGT58x UGT59x...
- Page 2 1 Preliminary note 1.1 Symbols used ► Instructions > Reaction, result […] Designation of keys, buttons or indications → Cross-reference Important note Non-compliance may result in malfunction or interference. Information Supplementary note. 2 Safety instructions • Read this document before setting up the product and keep it during the entire service life.
- Page 3 For units with metal housing (according to UL 508): ► Observe a minimum distance of 12.7 mm between the sensor and non- insulated live parts. For further information please refer to www.ifm.com → General information about installation and operation. 5 Electrical connection ►...
- Page 4 6 Settings The unit and the parameters are set via the teach button (→ 6.1). 6.1 Teach button 6.1.1 Start programming mode ► Press the teach button for 2 s...6 s. > Yellow status LEDs 1/2 flash (1 Hz), the unit is in the programming mode. If programming has not been completed successfully, the unit returns to the previous setting.
- Page 5 Switching signal for window function Switching signal for hysteresis function P1/P2 1: output response B: blind zone 2: Inverted output signal P: taught position 3: Distance object T: teach button 4: Factory setting Technical data and further information at www.ifm.com...
