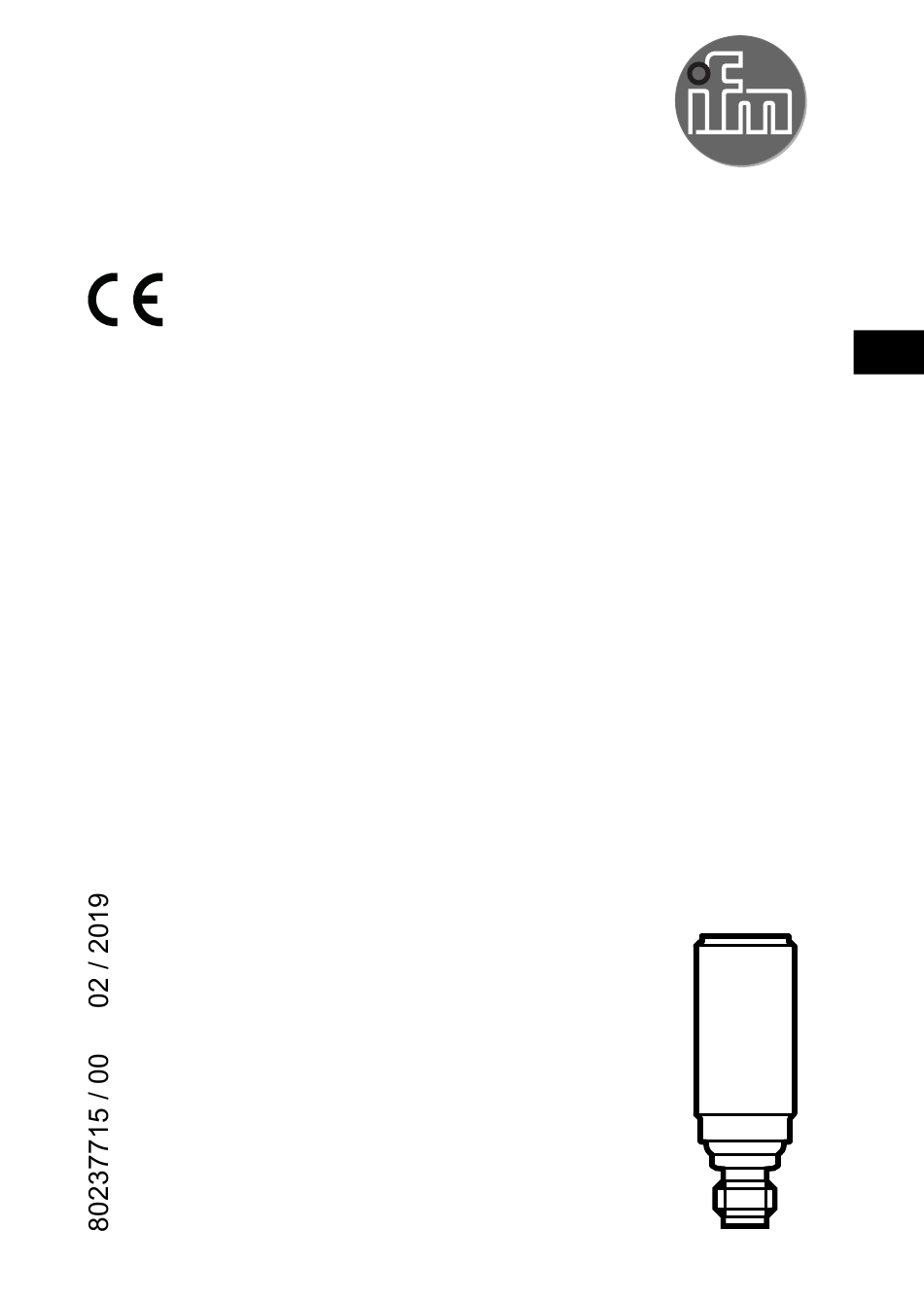

- Page 1 Operating instructions Ultrasonic diffuse-reflection sensor without IO-Link UGT20x UGT21x UGT50x UGT52x...
- Page 2 1 Safety instructions • Read this document before setting up the product and keep it during the entire service life. • The product must be suitable for the corresponding applications and environ- mental conditions without any restrictions. • Only use the product for its intended purpose (→ 2 Functions and features). •...
- Page 3 For units with metal housing (according to UL 508): ► Observe a minimum distance of 12.7 mm between the sensor and non- insulated live parts. For further information please refer to www.ifm.com → General information about installation and operation. 4 Electrical connection ►...
- Page 4 5.1.1 Start programming mode ► Connect teach input for 2 s...6 s (→ 5.1 Wire teach). > The yellow status LED flashes > 1 s (1 Hz), the unit is in the programming mode. 5.1.2 Set output response ► Start programming mode (→ 5.1.1). ►...
- Page 5 Switching signal for window function Switching signal for hysteresis function P1/P2 1: output response B: blind zone 2: inverted output signal P: taught position 3: distance object T: teach button 4: factory setting Technical data and further information at www.ifm.com...
