Summary of Contents for IFM UGT204

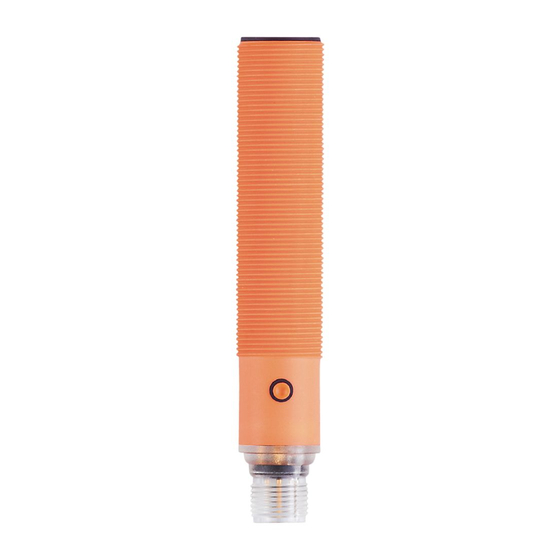

- Page 1 Operating instructions Ultrasonic diffuse-reflection sensor with IO-Link UGT204 UGT205 UGT207 UGT208 UGT510 UGT511 UGT513 UGT514...
- Page 2 1 Safety instructions • Read this document before setting up the product and keep it during the entire service life. • The product must be suitable for the corresponding applications and environmental conditions without any restrictions. • Only use the product for its intended purpose (→ 2 Functions and features). •...
- Page 3 For further information please refer to www.ifm.com → General information about installation and operation. 4 Electrical connection ► Disconnect power. ► Connect unit (depending on the type selected): • OUT1: switching output / IO-Link OUT2 • OUT2: analogue output OUT1...
- Page 4 5.2 Teach button 5.2.1 Start programming mode ► Press the teach button for 2 s...6 s. > Yellow status LEDs 1/2 flash (1 Hz), the unit is in the programming mode. If programming has not been completed successfully, the unit returns to the previous setting.
- Page 5 Switching signal for window function Switching signal for hysteresis function P1/P2 1: output response B: blind zone 2: inverted output signal P: taught position 3: distance object T: teach button 4: factory setting Technical data and further information at www.ifm.com...
